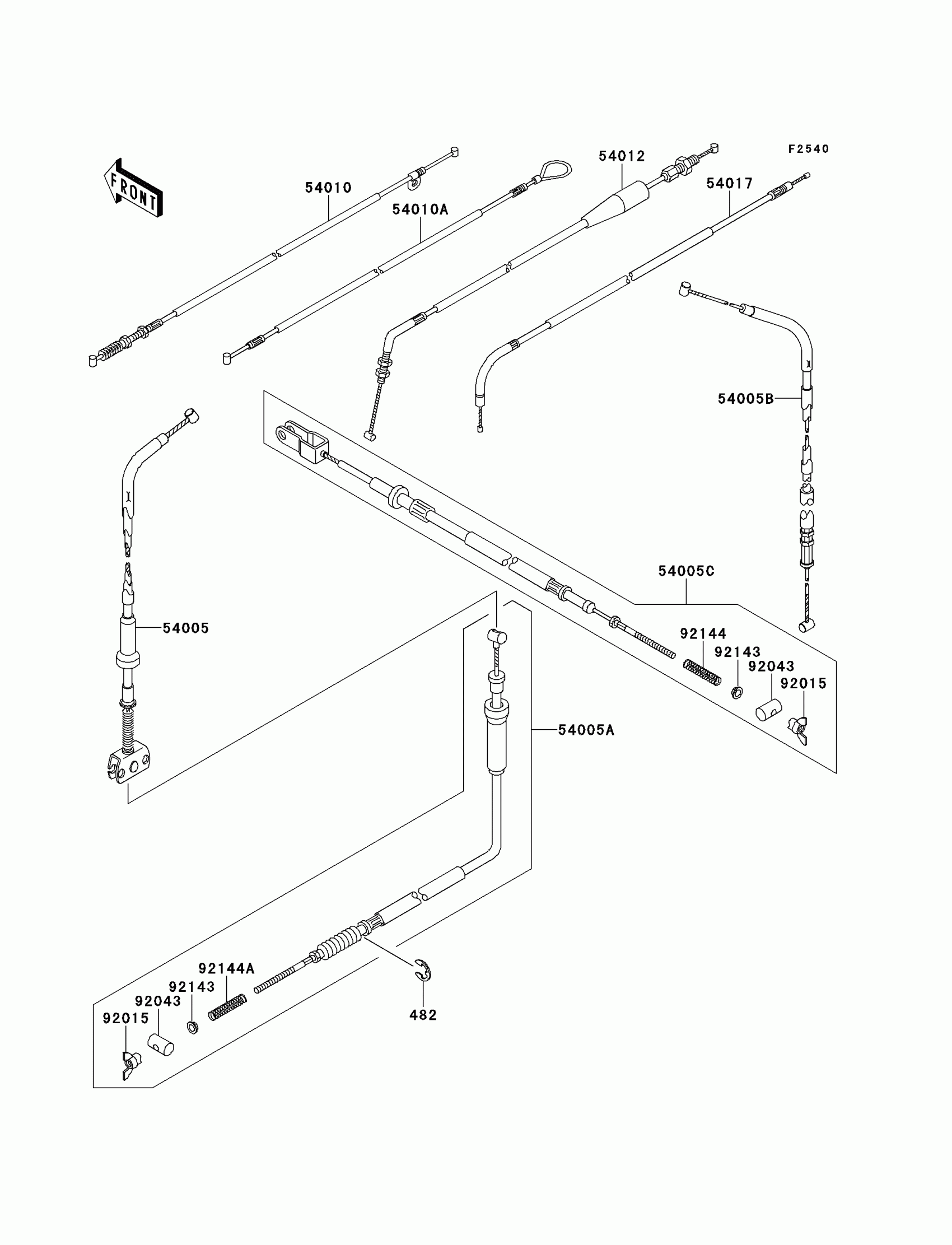

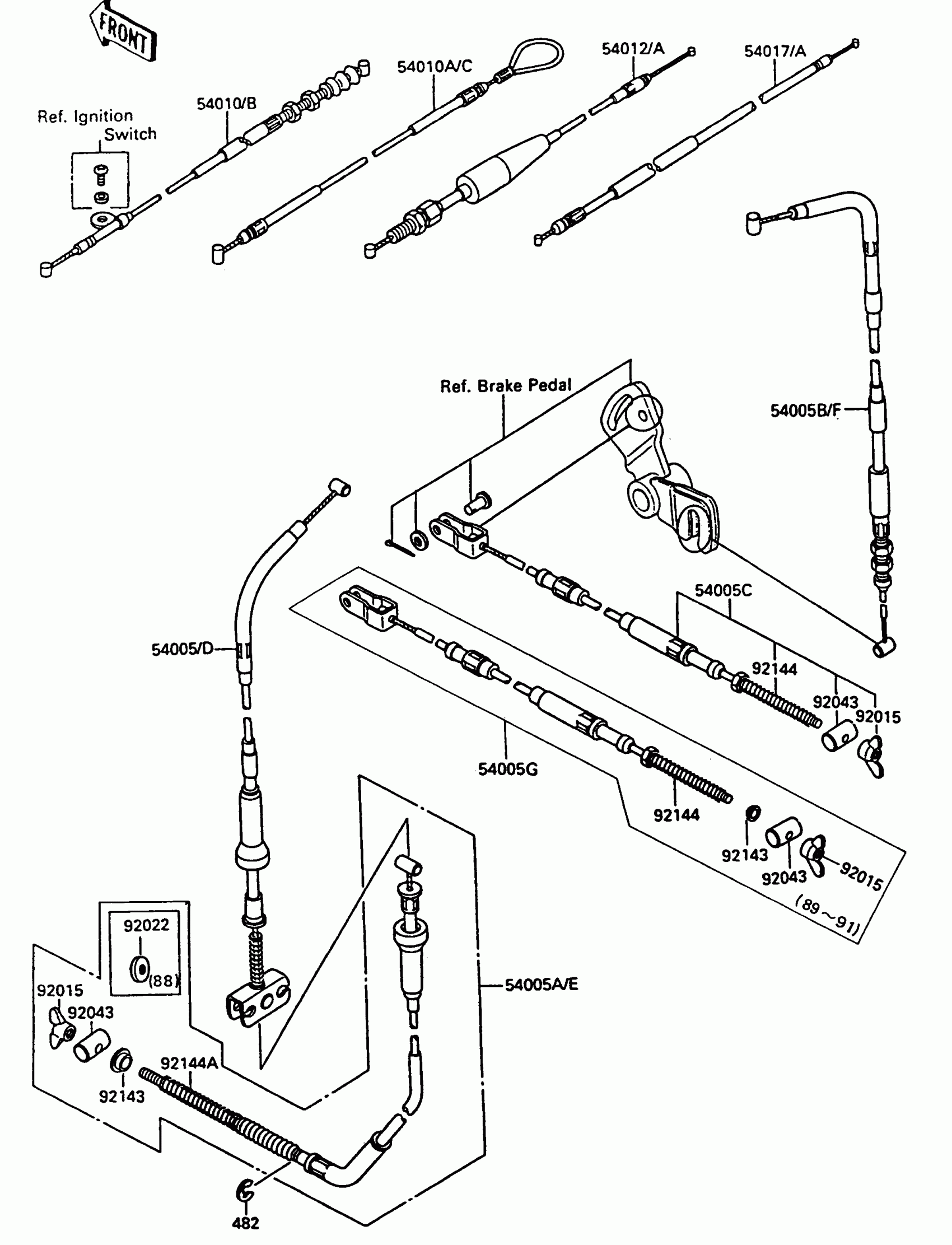

Kawasaki Bayou 220 Cables Diagram

Description

Price

482

CIRCLIP-TYPE-E

482L7000

$3.92

54005D

CABLE-BRAKE,FR,UPP

54005-1153

$19.41

54005E

CABLE-BRAKE,FR,LWR

54005-1154

$20.35

54005F

CABLE-BRAKE,PARKING

54005-1155

$20.35

54005G

CABLE-BRAKE,RR

54005-1156

$20.35

54010B

CABLE,REVERSE

54010-1073

$16.44

54010C

CABLE,SEAT HOOK

54010-1074

$9.77

54012A

CABLE-THROTTLE

54012-1361

$11.37

54017A

CABLE-STARTER

54017-1137

$11.50

92015

NUT,WING,6MM

92015-4004

$7.29

92043

PIN,12X20

92043-1392

$11.37

92143

COLLAR

92143-1309

$4.20

92144

SPRING,BRAKE CABLE

92144-1269

$7.22

92144A

SPRING,BRAKE CABLE

92144-1270

$7.60
