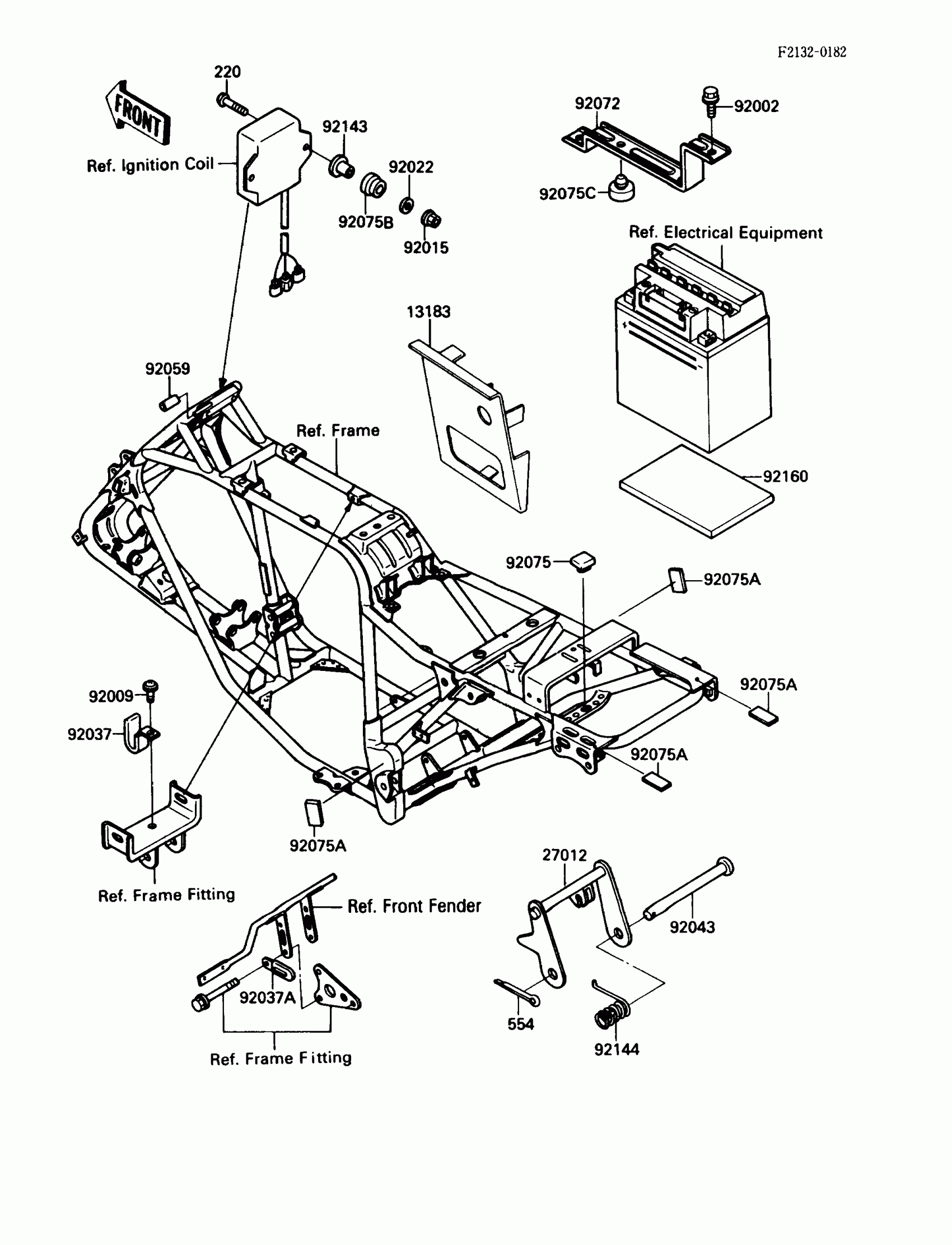

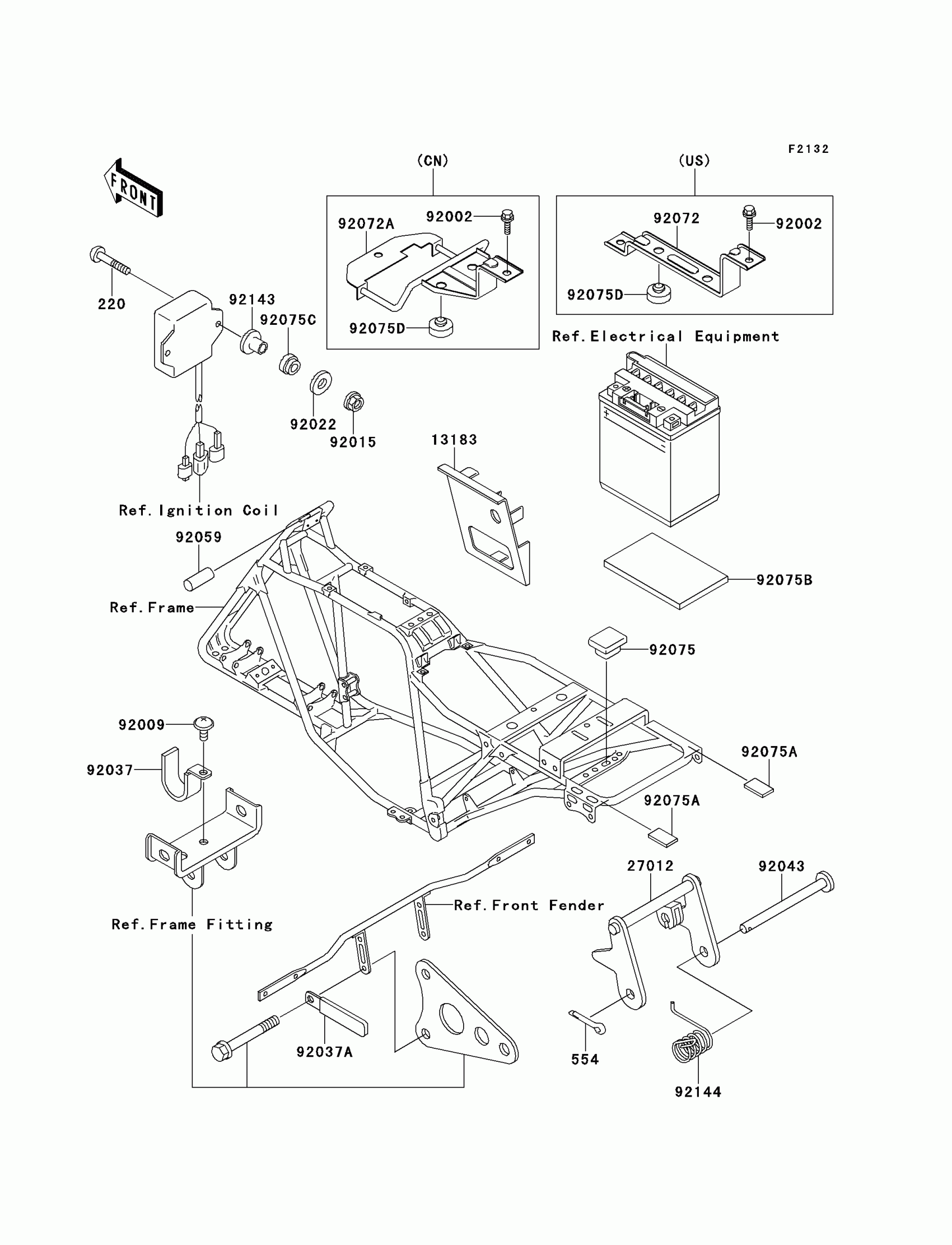

Kawasaki Bayou 220 Battery Case Diagram

Description

Price

220

SCREW PAN HEAD 6X25

220B0625

$2.60

554

PIN,SNAP

554A0600

$0.93

13183

PLATE,ELECTRIC BASE

13183-1134

$11.07

27012

HOOK,SEAT

27012-1381

$35.82

92002

BOLT,6X14

92002-1351

$4.31

92009

SCREW,6X14

92009-1288

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,7X18X1.2

92022-1545

$1.03

92037

CLAMP

92037-1700

$5.61

92037A

CLAMP

92037-1780

$6.57

92043

PIN,6X77

92043-1367

$7.79

92059

TUBE,3X8X40

92059-1901

$4.33

92075

DAMPER

92075-099

$5.52

92075A

DAMPER

92075-1830

$5.59

92075C

DAMPER RUBBER

92075-208

$5.00

92075D

DAMPER,9X24X14

92075-281

$6.22

92143

COLLAR,L=9.6

92143-1016

$6.22

92144

SPRING,SEAT HOOK

92144-1174

$6.82

92072

BAND,BATTERY

92072-1222

$17.95

92072A

BAND,BATTERY

92072-1292

Unavailable

92075B

DAMPER,BATTERY

92075-1997

$8.98
