Description

Price

220

SCREW PAN HEAD 5X16

220B0516

$2.06

220A

SCREW-PAN-CROS,6X14

220B0614

$1.48

311

NUT-HEX

311B0500

$0.47

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

11011

CASE-AIR FILTER

11011-1260

$103.71

11013

ELEMENT-AIR FILTER

11013-1158

$10.91

11046

BRACKET,REGULATOR

11045-1786

$10.56

13091

HOLDER,ELEMENT

13091-1488

$19.96

13091A

HOLDER,ELEMENT

13091-1510

$37.78

14024

COVER,AIR FILTER

14024-1489

$27.80

14073

DUCT,CARBURETOR

14073-1312

$28.58

14073A

DUCT,AIR FILTER

14073-1313

$31.89

18018

PLATE-HEAT GUARD

18018-1077

$26.98

49006

BOOT

49006-1199

$8.64

59006

ARRESTER-FLAME

59006-1052

$37.78

92001

BOLT,6X18

92001-1342

Unavailable

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92037

CLAMP,57MM,BLACK

92037-1452

$11.37

92037A

CLAMP,HOSE CLIP

92037-1460

$10.81

92037B

CLAMP,AIR FILTER

92037-1783

$8.80

92093

SEAL,AIR FILTER

92093-1241

$12.96

92170

CLAMP

92170-1006

$9.14

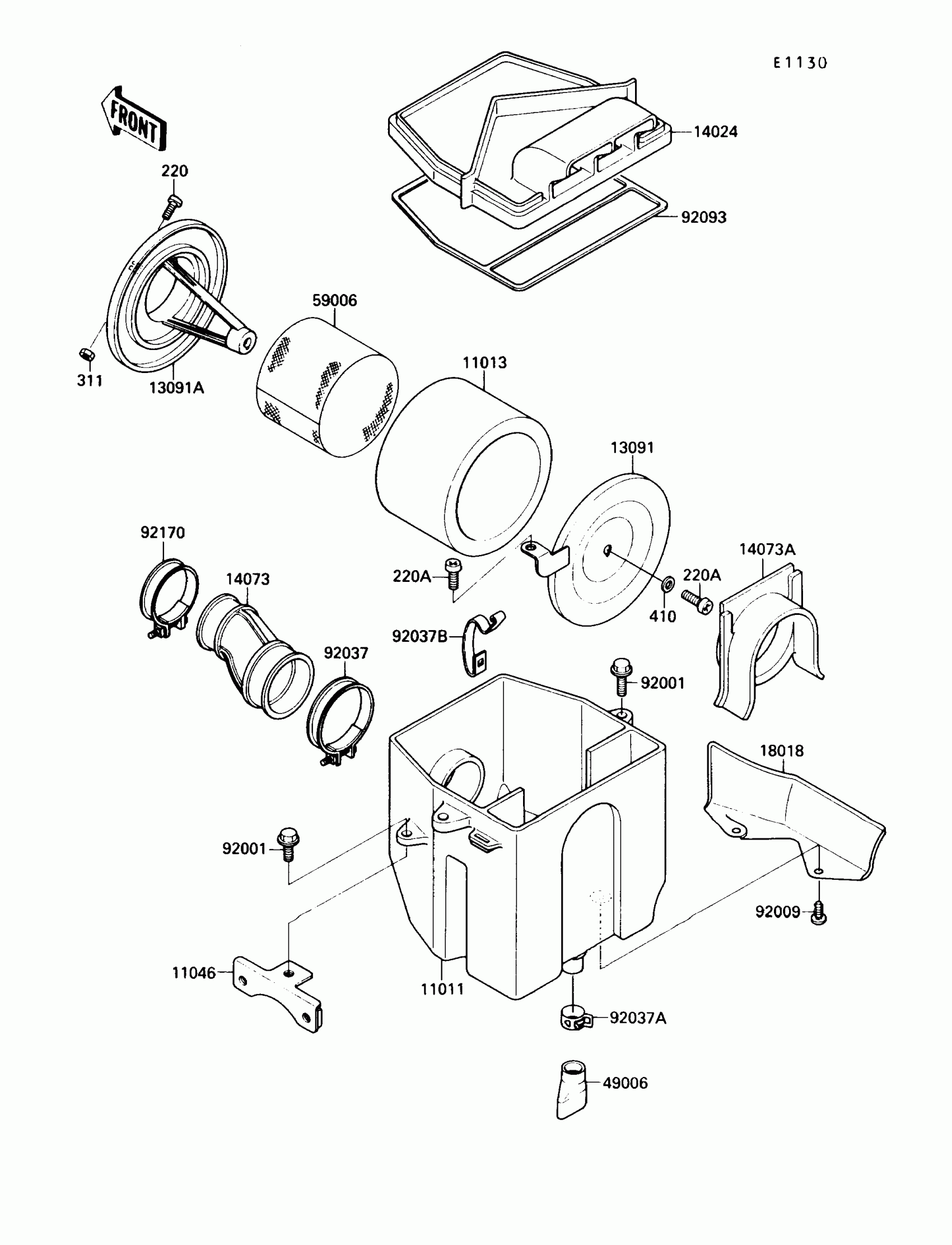

Kawasaki Bayou 220 Air Filter Diagram

SCREW PAN HEAD 5X16

SCREW-PAN-CROS,6X14

NUT-HEX

WASHER-PLAIN-SMALL,6MM

CASE-AIR FILTER

ELEMENT-AIR FILTER

BRACKET,REGULATOR

HOLDER,ELEMENT

HOLDER,ELEMENT

COVER,AIR FILTER

DUCT,CARBURETOR

DUCT,AIR FILTER

PLATE-HEAT GUARD

BOOT

ARRESTER-FLAME

BOLT,6X18

SCREW,TAPPING,5X10

CLAMP,57MM,BLACK

CLAMP,HOSE CLIP

CLAMP,AIR FILTER

SEAL,AIR FILTER

CLAMP
