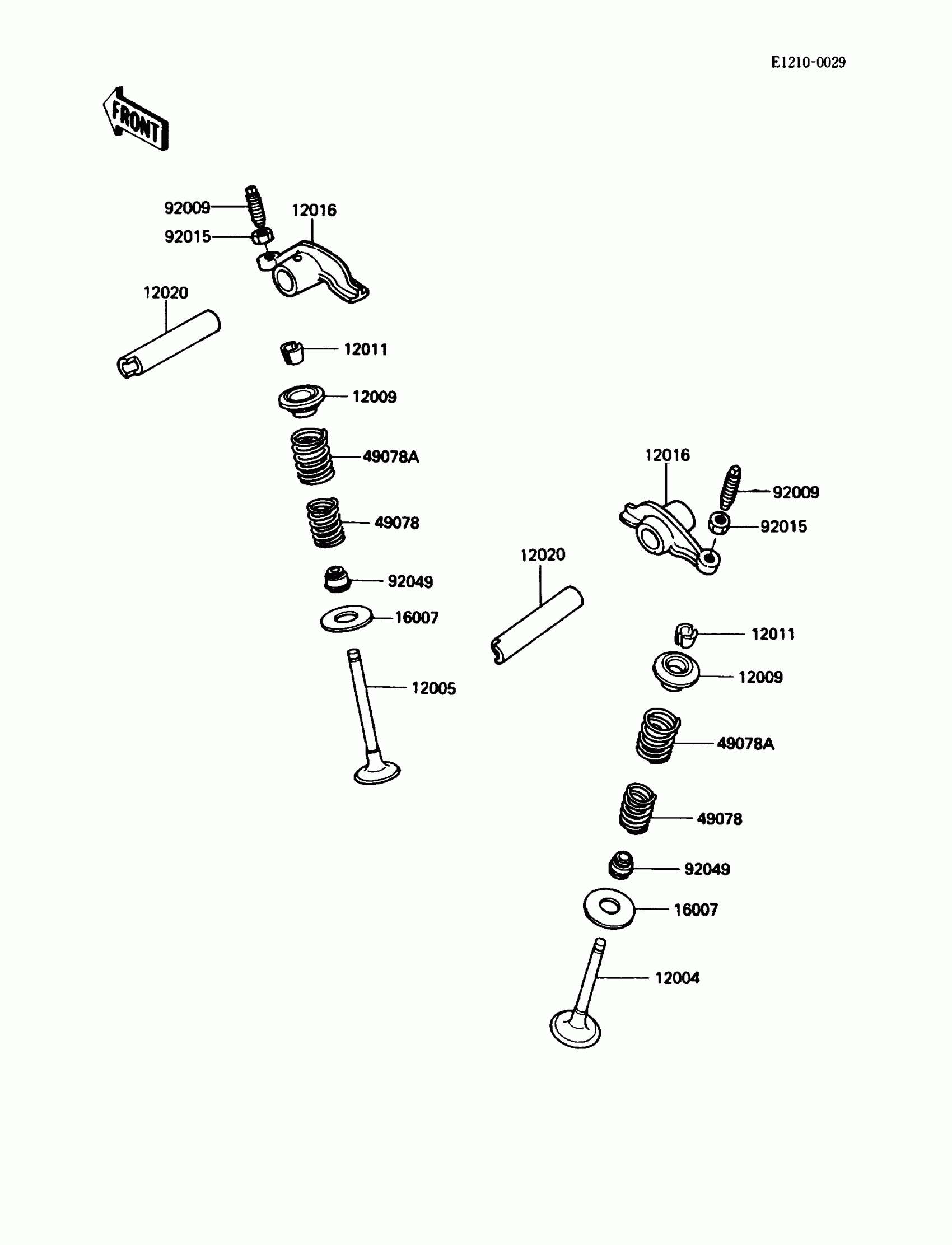

Kawasaki Bayou 185 Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-1051

$41.19

12005

VALVE-EXHAUST

12005-1051

$81.48

12009

RETAINER-VALVE SPRING

12009-1001

$10.98

12011

COLLET

12011-1003

$4.65

12016

ARM-ROCKER

12016-1002

Unavailable

12020

SHAFT-ROCKER

12020-1053

$29.87

16007

SEAT-SPRING

16007-1106

$7.22

49078

SPRING-ENGINE VALVE,INNER

12007-1001

$10.88

49078A

SPRING-ENGINE VALVE,OUTER

12007-1002

$15.04

92009

SCREW,6MM

92009-1032

$7.29

92015

NUT,6MM

92016-061

$4.69

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$5.13
