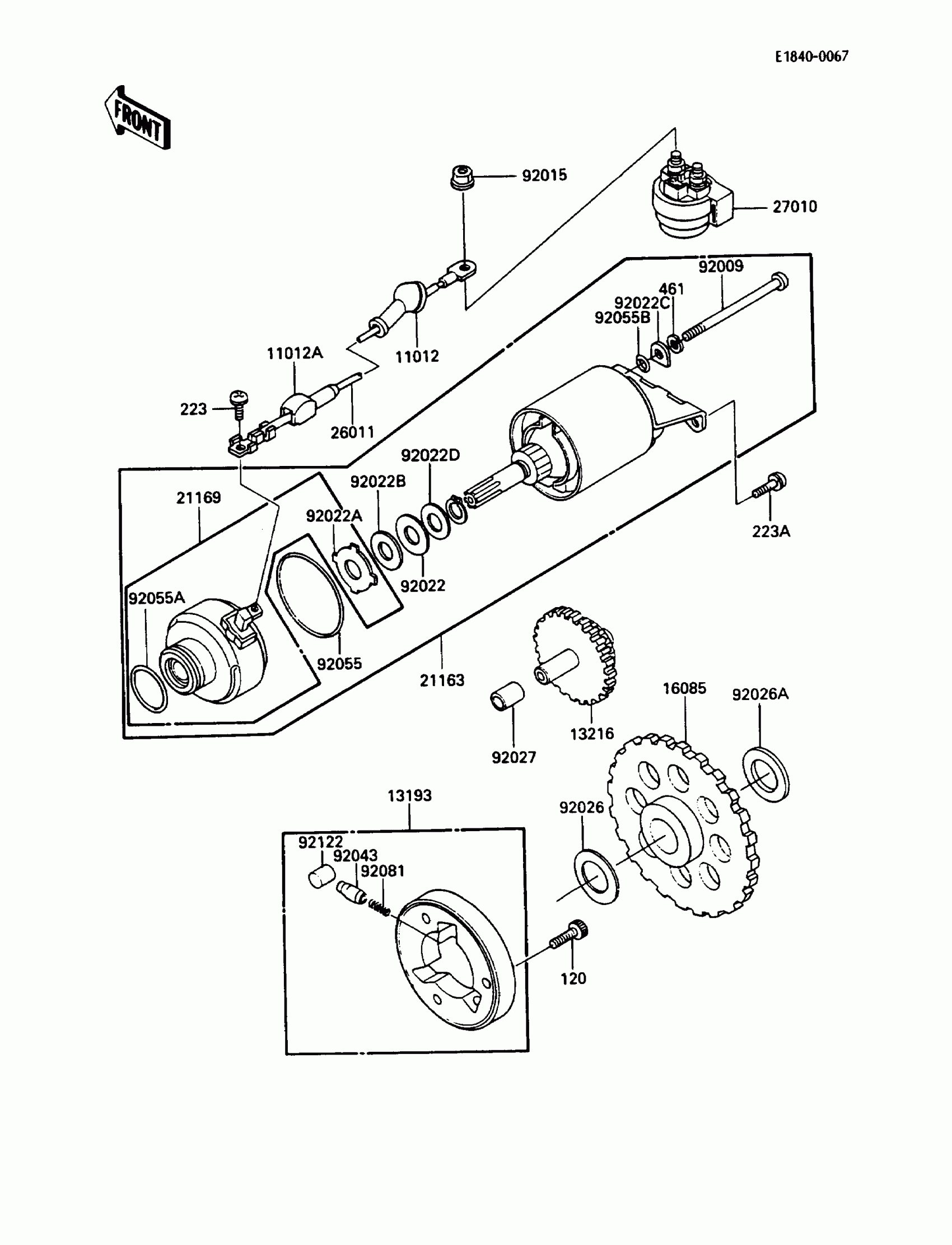

Kawasaki Bayou 185 Starter Motor Diagram
#
Description
Price
11012
CAP,TERMINAL
11012-1354
$10.19
11012A
CAP,STARTER TERMINAL
11012-1465
Unavailable
13193
CLUTCH-ASSY-ONEWAY
13193-1002
$116.39
13216
GEAR-COMP,IDLE
13216-1054
Unavailable
16085
GEAR,ONEWAY CLUTCH
16085-1032
Unavailable
21163
STARTER-ELECTRIC
21163-1076
$601.67
21169
TERMINAL,STARTER MOTOR
21169-1052
$161.68
26011
WIRE-LEAD,STARTER MOTOR
26011-1312
$35.14
27010
SWITCH,STARTER
27010-1075
$45.86
92009
SCREW
92009-1389
$6.02
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92022
WASHER,THRUST
92022-1129
$3.61
92022A
WASHER,THRUST SUPPORT
92022-1130
Unavailable
92022B
WASHER,BAKELITE
92022-1131
$6.60
92022C
WASHER
92022-1697
$4.58
92022D
WASHER,22X12.2X0.5
92022-1714
Unavailable
92026
SPACER,22X35.5X1.0
92026-092
$12.48
92026A
SPACER,22.1X30.7X2.0
92026-1272
Unavailable
92027
COLLAR,12X17X17.3
92027-1723
$6.84
92043
PIN
92043-132
$6.22
92055
RING-O
92055-1042
Unavailable
92055A
RING-O
92055-1303
$11.79
92055B
RING-O
92055-1304
$1.86
92081
SPRING,COIL
92081-159
$3.89
92122
ROLLER
92122-006
$6.22
120
BOLT-SOCKET,8X14
120P0814
$4.35
223
SCREW-PAN-WS-CROS
223B0508
$0.40
223A
SCREW-PAN-WS-CROS
223X0616
$4.43
461
WASHER-SPRING
461L0500
$0.71
