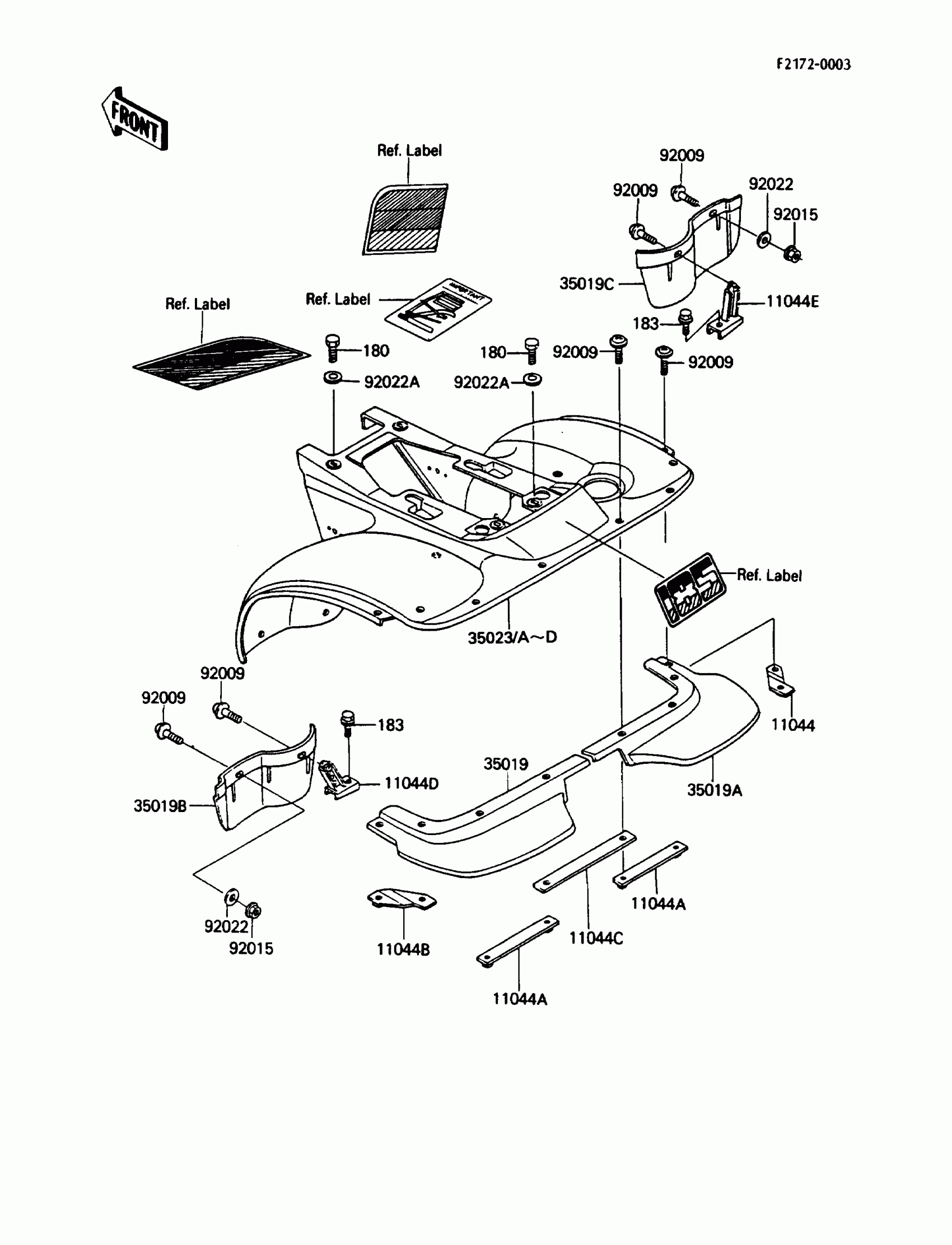

Kawasaki Bayou 185 Rear Fender(s) Diagram

Description

Price

11044

BRACKET,RR FLAP,RH

11043-1834

Unavailable

11044A

BRACKET,RR FLAP

11043-1835

Unavailable

11044B

BRACKET,RR FLAP,LH

11043-1945

Unavailable

11044C

BRACKET,RR FLAP

11043-1946

Unavailable

11044D

BRACKET,FLAP,LH

11044-1629

Unavailable

11044E

BRACKET,FLAP,RH

11044-1630

Unavailable

35019

FLAP,RR,LH

35019-1123

$73.09

35019A

FLAP,RR,RH

35019-1134

$44.93

35019B

FLAP,LH

35019-1143

Unavailable

35019C

FLAP,RH

35019-1144

$38.25

35023A

FENDER-REAR,P.WHITE

35023-1140-6F

$467.99

92009

SCREW,6X14

92009-1288

$3.92

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92022A

WASHER,7X24X1.6

92022-228

$3.92

180

BOLT-UPSET-WS

180B0618

$0.88

183

BOLT-UPSET-WS-SMALL

183B0816

Unavailable
