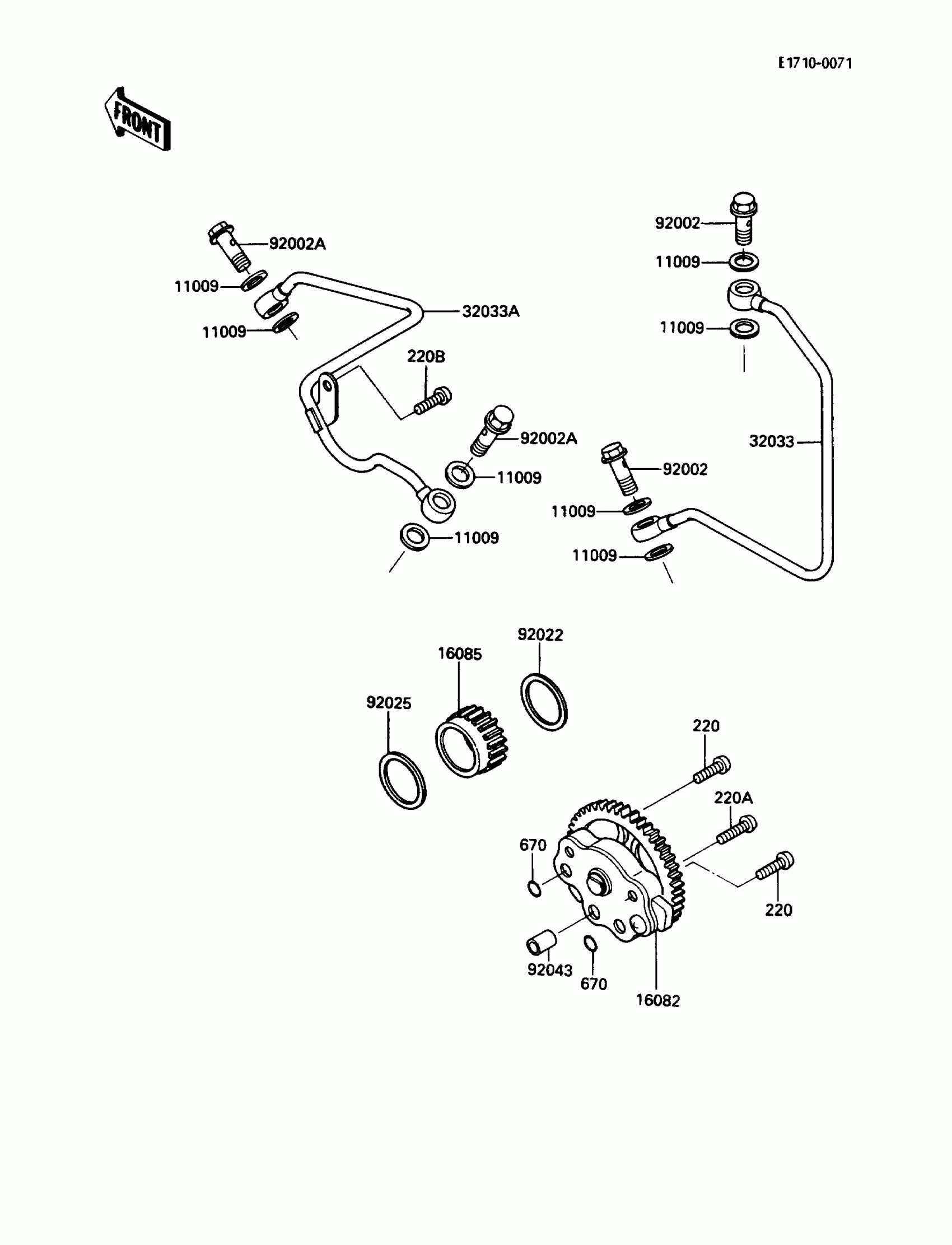

Kawasaki Bayou 185 Oil Pump/Oil Filter Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

16082

PUMP-ASSY-OIL

16082-1055

$166.47

16085

GEAR,OIL PUMP,22T

16085-1133

$30.15

32033

PIPE,CYLINDER HEAD

32033-1221

$68.07

32033A

PIPE,TRANSMISSION

32033-1222

$36.20

92002

BOLT,BANJO,8X22

92002-1359

$10.14

92002A

BOLT,BANJO,8X22

92002-1871

$5.76

92022

WASHER,24.3X30X1.2

92022-1767

$3.02

92025

SHIM,25.3X36X0.9

92025-1129

$5.73

92043

PIN,6.2X8X14

92043-1263

$0.43

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

220A

SCREW PAN HEAD 6X30

220B0630

$3.41

220B

SCREW-PAN-CROS

220X0612

$3.41

670

O RING,9.8X1.9

670B1510

$4.31
