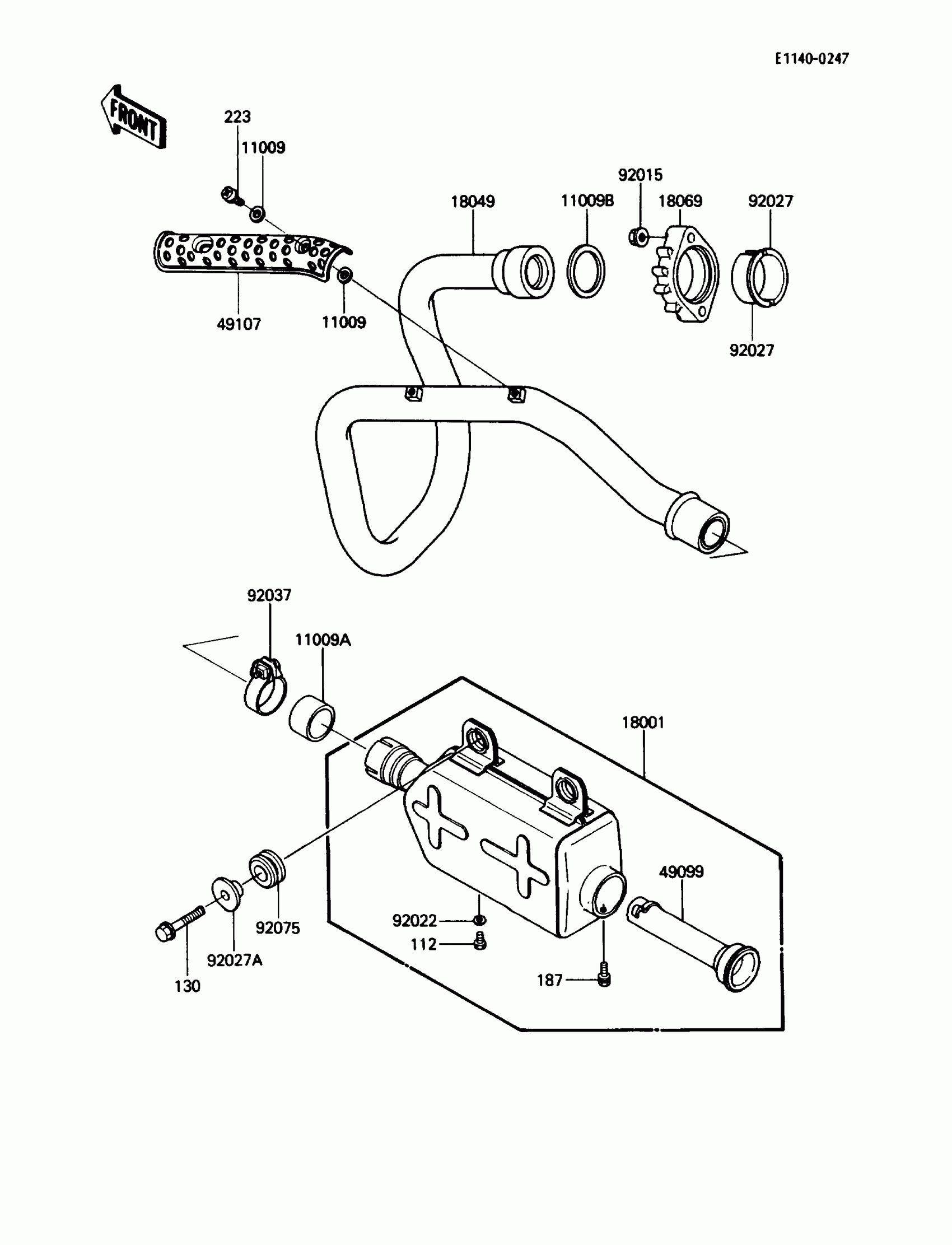

Kawasaki Bayou 185 Muffler(s) Diagram

Description

Price

11009

GASKET,6.2X11.5X1.5

11009-1451

Unavailable

11009A

GASKET,EXHAUST PIPE CONNECTING

11009-1634

Unavailable

11009B

GASKET,EXHAUST PIPE HOLDER

18067-004

$8.25

18001

MUFFLER

18001-1593

$439.27

18049

PIPE-EXHAUST

18049-1432

Unavailable

18069

HOLDER-EXHAUST PIPE

18069-1078

$27.28

49099

BAFFLE-PIPE MUFFLER

49099-1200

Unavailable

49107

COVER-EXHAUST PIPE

49107-1064

$43.22

92015

NUT,6MM

92015-1365

$5.00

92022

WASHER,6.2X11X1

92022-304

$3.65

92027

COLLAR,L=14.5

92027-1142

$5.00

92027A

COLLAR,MUFFLER

92027-1981

$10.76

92037

CLAMP,42MM,BLACK

92037-1350

$24.78

92075

DAMPER,MUFFLER

92075-1809

$8.38

112

BOLT-UPSET,6X8

112B0608

$0.67

130

BOLT-FLANGED,8X30

130J0830

$4.15

187

BOLT 6X12

187B0612

$1.10

223

SCREW-PAN-WS-CROS

223C0610

$4.12
