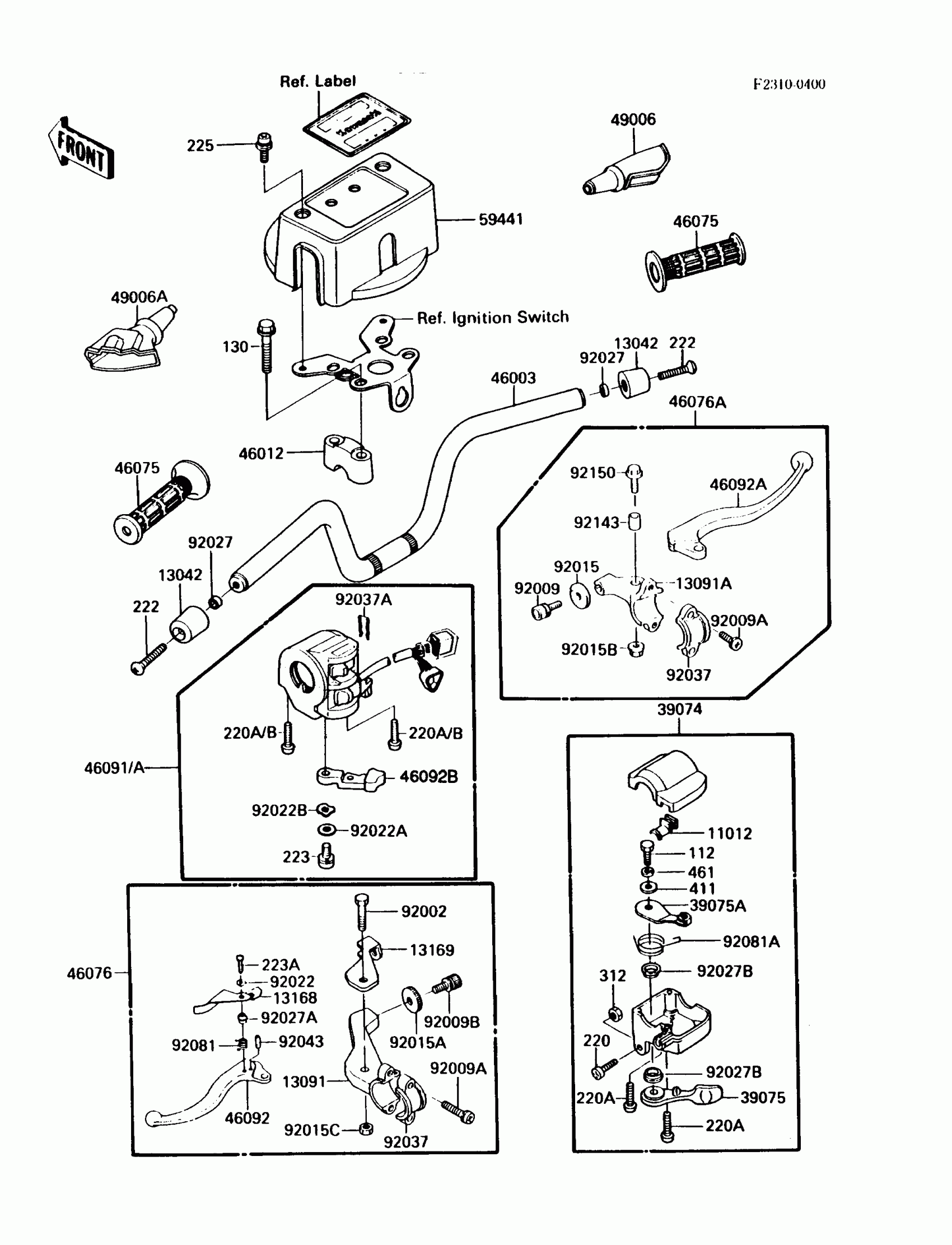

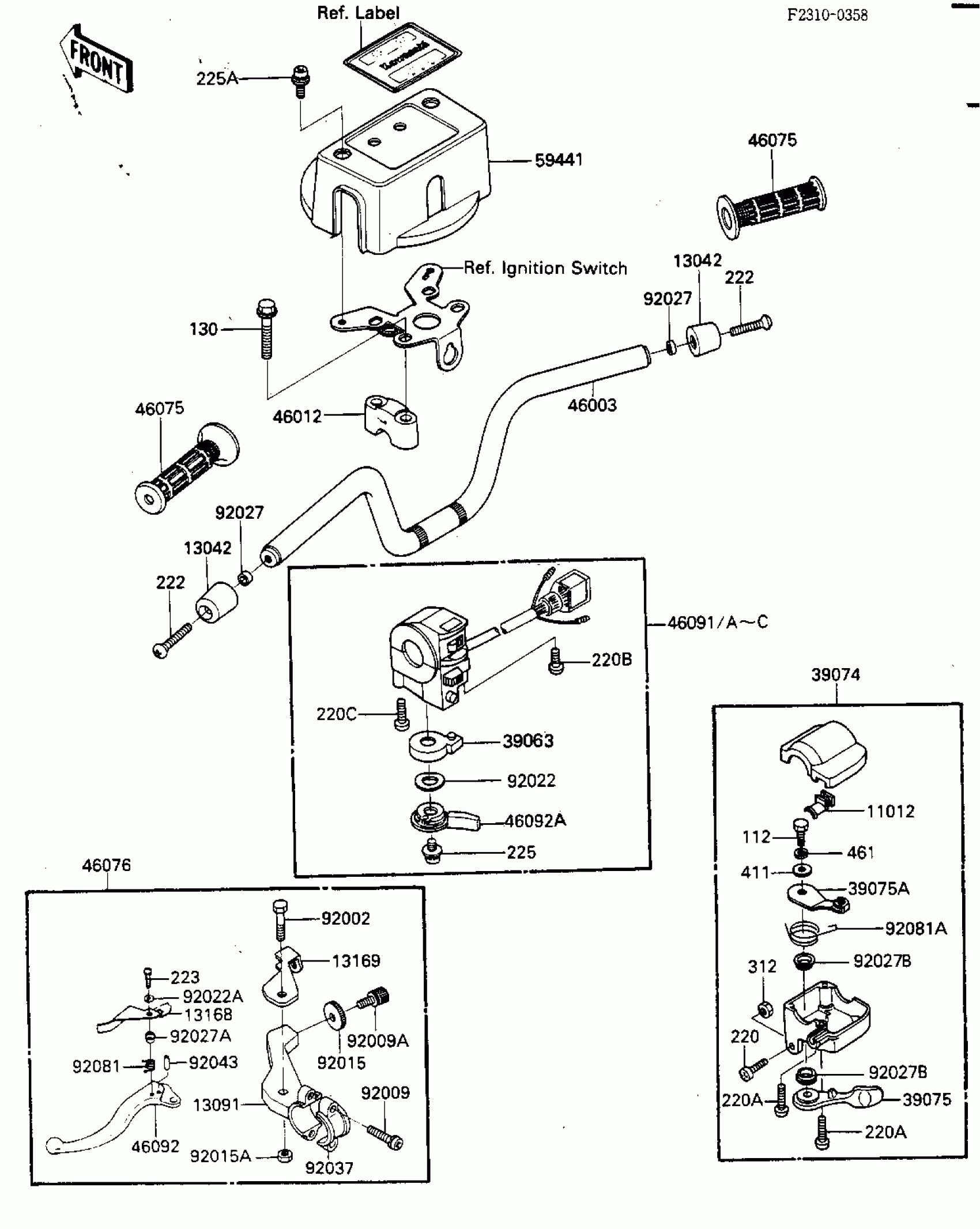

Kawasaki Bayou 185 Handlebar Diagram
#
11012
CAP
11012-1425
Unavailable
13042
WEIGHT,HANDLE
13042-1060
Unavailable
13091
HOLDER
13091-1349
$37.78
13091A
HOLDER,BRAKE LEVER,RH
13091-1541
Unavailable
13168
LEVER,LOCK
13168-1224
Unavailable
13169
PLATE,LOCK
13169-1398
Unavailable
39074
LEVER-ASSY-THROTTLE
39074-1052
$79.09
39075
LEVER-THROTTLE
39075-1053
$33.25
39075A
LEVER-THROTTLE,ARM
39075-1054
$11.51
46003
HANDLE
46003-1235
$89.11
46012
HOLDER-HANDLE,UPP
46012-008
$37.74
46075
GRIP
46075-1056
$25.83
46076
LEVER-ASSY-GRIP,LH
46076-1124
$43.65
46076A
LEVER-ASSY-GRIP,RH
46076-1157
$52.47
46091
HOUSING-ASSY-CONTROL,LH
46091-1450
Unavailable
46092
LEVER-GRIP
46092-1107
Unavailable
46092A
LEVER-GRIP,FRONT BRAKE
46092-1133
$19.12
46092B
LEVER-GRIP,CHOKE
46092-1149
$5.69
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,CLUTCH LEVER
49006-1057
$21.09
59441
COVER-HANDLE
59441-1057
Unavailable
92002
BOLT,5MM
92002-1447
$9.93
92009
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
92009A
SCREW,5X18
92009-1367
$4.60
92009B
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92015
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
92015A
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92015B
NUT,LOCK,5MM
92015-1719
Unavailable
92015C
NUT,LOCK,5MM
92019-014
$4.50
92022
WASHER,4MM
92022-1647
$4.21
92022A
WASHER,5MM
92022-1837
$3.35
92022B
WASHER,WAVE,5MM
92022-1838
$3.35
92027
COLLAR,6.3X10X4.8
92027-1066
$4.26
92027A
COLLAR,RETURN SPRING
92027-1336
$13.68
92027B
COLLAR
92027-1982
$3.56
92037
CLAMP,LEVER HOLDER
92037-1621
$27.29
92037A
CLAMP,CLIP
92037-1836
$5.33
92043
PIN,SPRING,3X16
92043-1268
$10.28
92081
SPRING,LOCK RETURN
92081-1358
$5.46
92081A
SPRING
92081-1685
$79.09
92143
COLLAR
92143-1216
$6.34
92150
BOLT,LEVER SET
92150-1102
$7.86
112
BOLT-UPSET
112D0614
$0.49
130
BOLT-FLANGED,8X60
130J0860
$5.21
220
SCREW-PAN-CROS,5X25
220C0525
$3.52
220A
SCREW-PAN-CROS,5X30
220C0530
Unavailable
220B
SCREW-PAN-CROS,5X35
220C0535
$2.06
222
SCREW-CSK-RD-CROS
222C0640
$2.74
223
SCREW-PAN-WS-CROS,5X12
223C0512
$4.32
223A
SCREW-PAN-WS-CROS,4X20
223D0420
$4.42
225
SCREW-PAN-WSP-CROS,6X20
225C0620
$3.84
312
NUT-HEX
312C0500
Unavailable
411
WASHER-PLAIN,6MM
411E0600
$1.31
461
WASHER-SPRING
461L0600
$0.71
