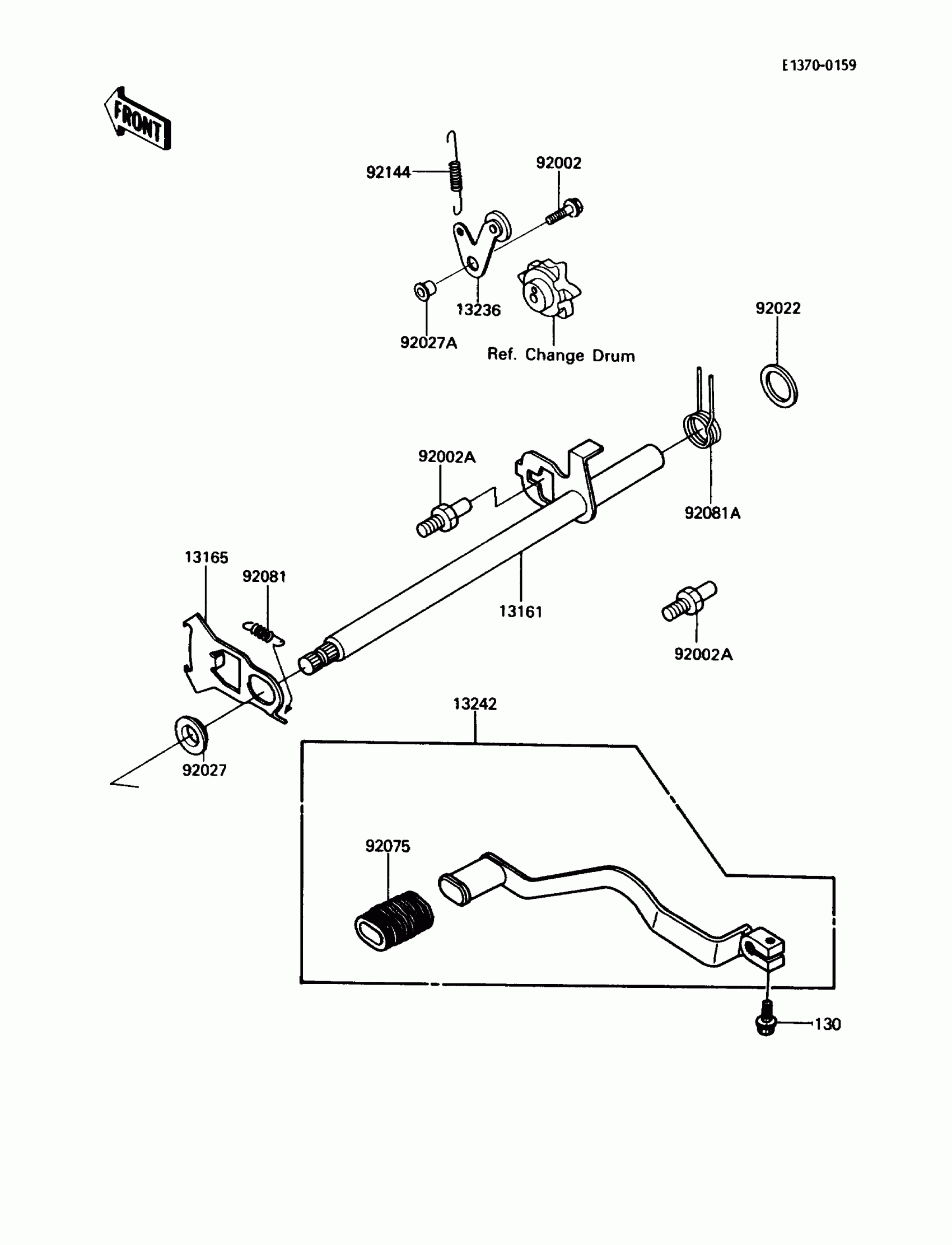

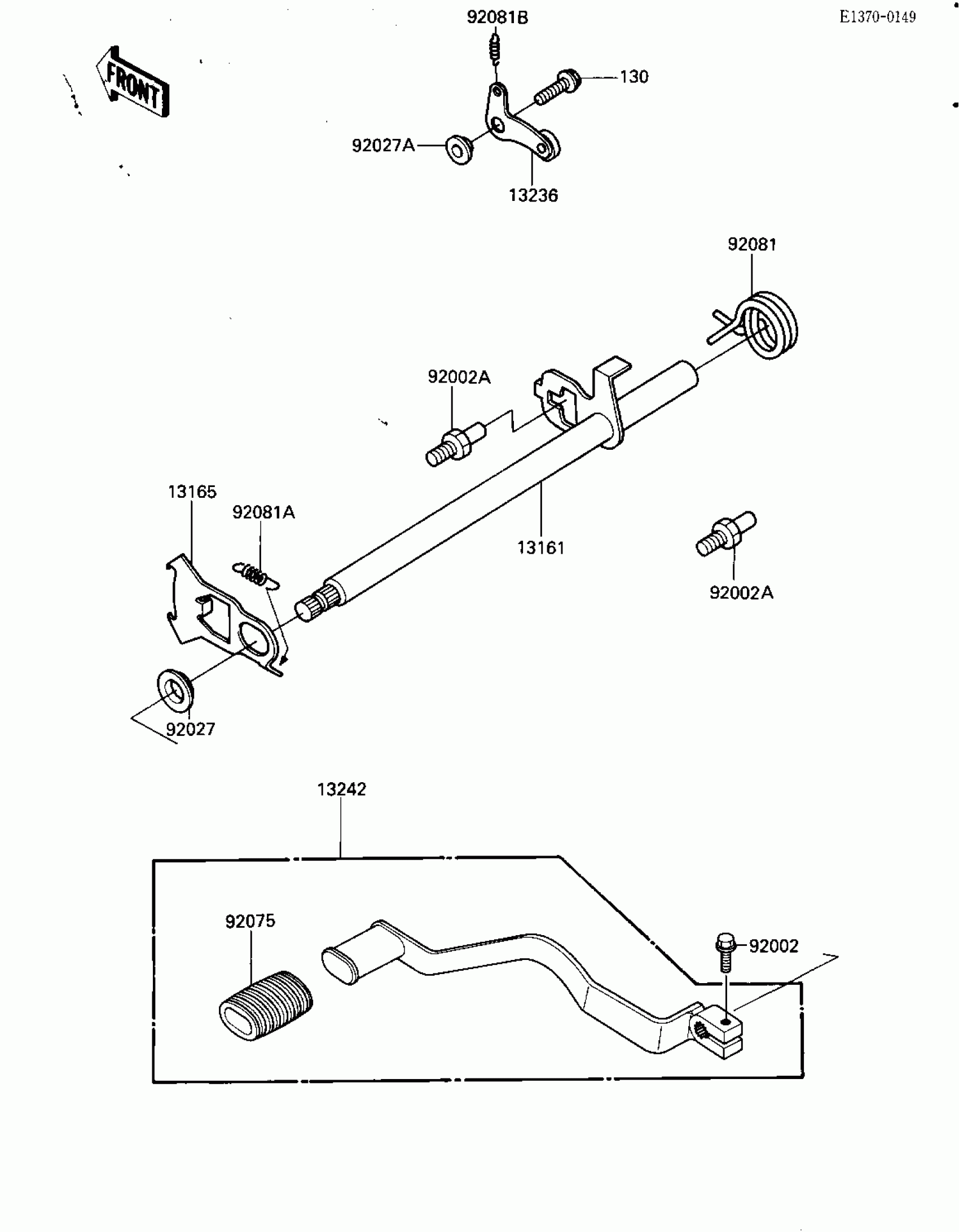

Kawasaki Bayou 185 Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1110

Unavailable

13165

PAWL,CHANGE LEVER

13165-1112

Unavailable

13236

LEVER-COMP,NEUTRAL POSITION

13236-1145

Unavailable

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1199

Unavailable

92002

BOLT,6X20

92002-1237

$4.31

92002A

BOLT,SOCKET,4X8

92002-1408

$6.61

92022

WASHER,25.5X36X1

92022-057

$4.38

92027

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92027A

COLLAR,L=5.2

92027-1716

$4.05

92075

DAMPER

92075-1585

$9.45

92081

SPRING,CHANGE LEVER

92081-1753

$6.55

92081A

SPRING,CHANGE SHAFT RETURN

92081-1987

Unavailable

92144

SPRING

92144-1003

$5.70

130

BOLT-FLANGED,6X20

130S0620

$6.86
