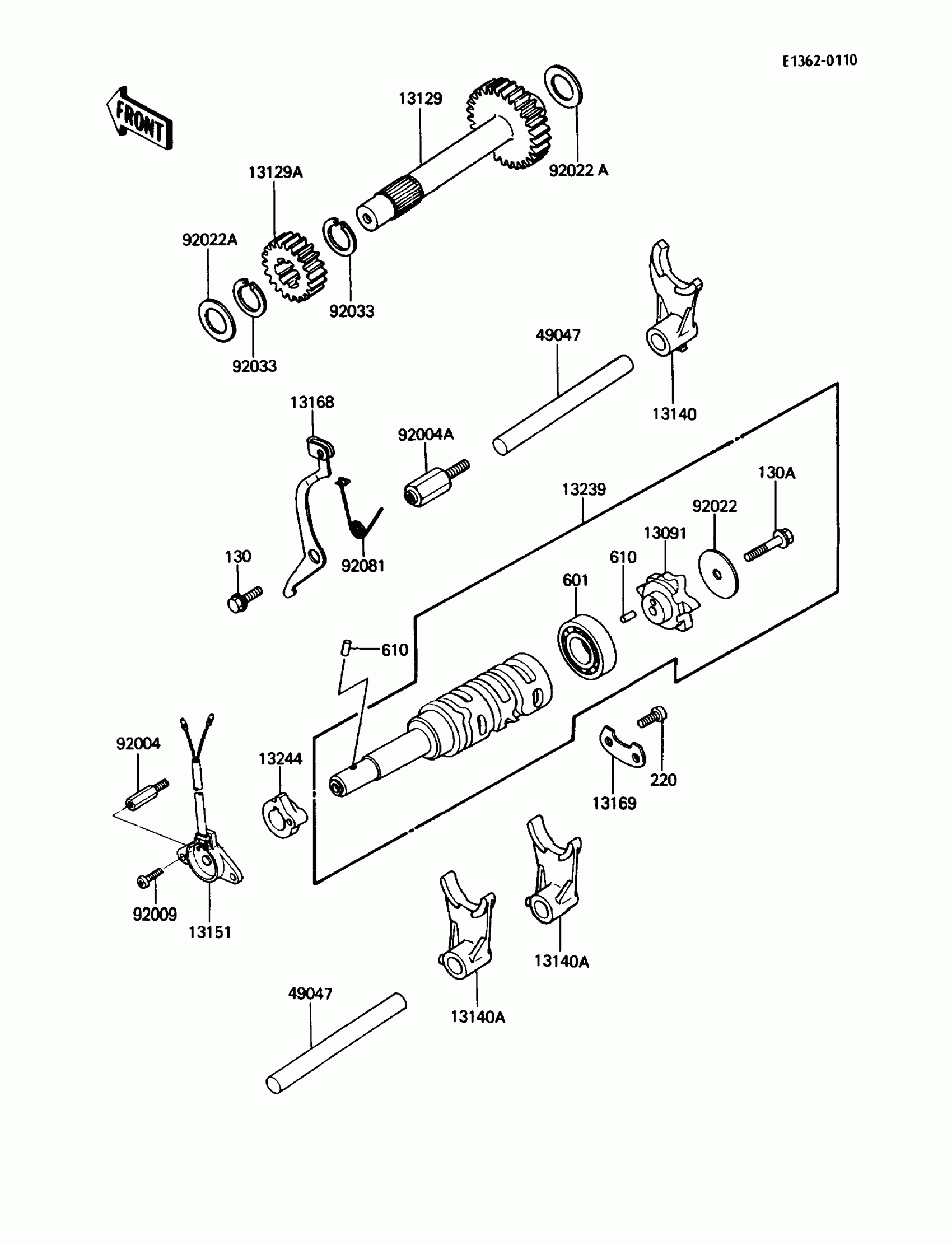

Kawasaki Bayou 185 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13091

HOLDER,CHANGE DRUM

13091-1434

Unavailable

13129

GEAR,REVERSE

13129-1549

Unavailable

13129A

GEAR,REVERSE,21T

13129-1550

Unavailable

13140

FORK-SHIFT

13140-1106

Unavailable

13140A

FORK-SHIFT

13140-1137

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1059

Unavailable

13168

LEVER,REVERSE

13168-1320

Unavailable

13169

PLATE,CHANGE DRUM

13169-1749

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1133

Unavailable

13244

STOPPER-ASSY,REVERSE

13244-1053

Unavailable

49047

ROD-SHIFT

49047-1052

$18.72

92004

STUD

92004-1136

$12.92

92004A

STUD

92004-1138

$15.46

92009

SCREW,5X14

92009-1341

$3.75

92022

WASHER,6.2X38X1.2

92022-1500

$11.03

92022A

WASHER,THRUST,15MM

92022-279

$10.19

92033

RING-SNAP,18MM

92033-029

$7.48

92081

SPRING

92081-1966

$4.36

130

BOLT-FLANGED,6X12

130G0612

Unavailable

130A

BOLT-FLANGED,6X35

130G0635

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

601

BEARING-BALL,#6004C3

601B6004

$9.44

610

ROLLER,4X6

610A0406

$3.29
