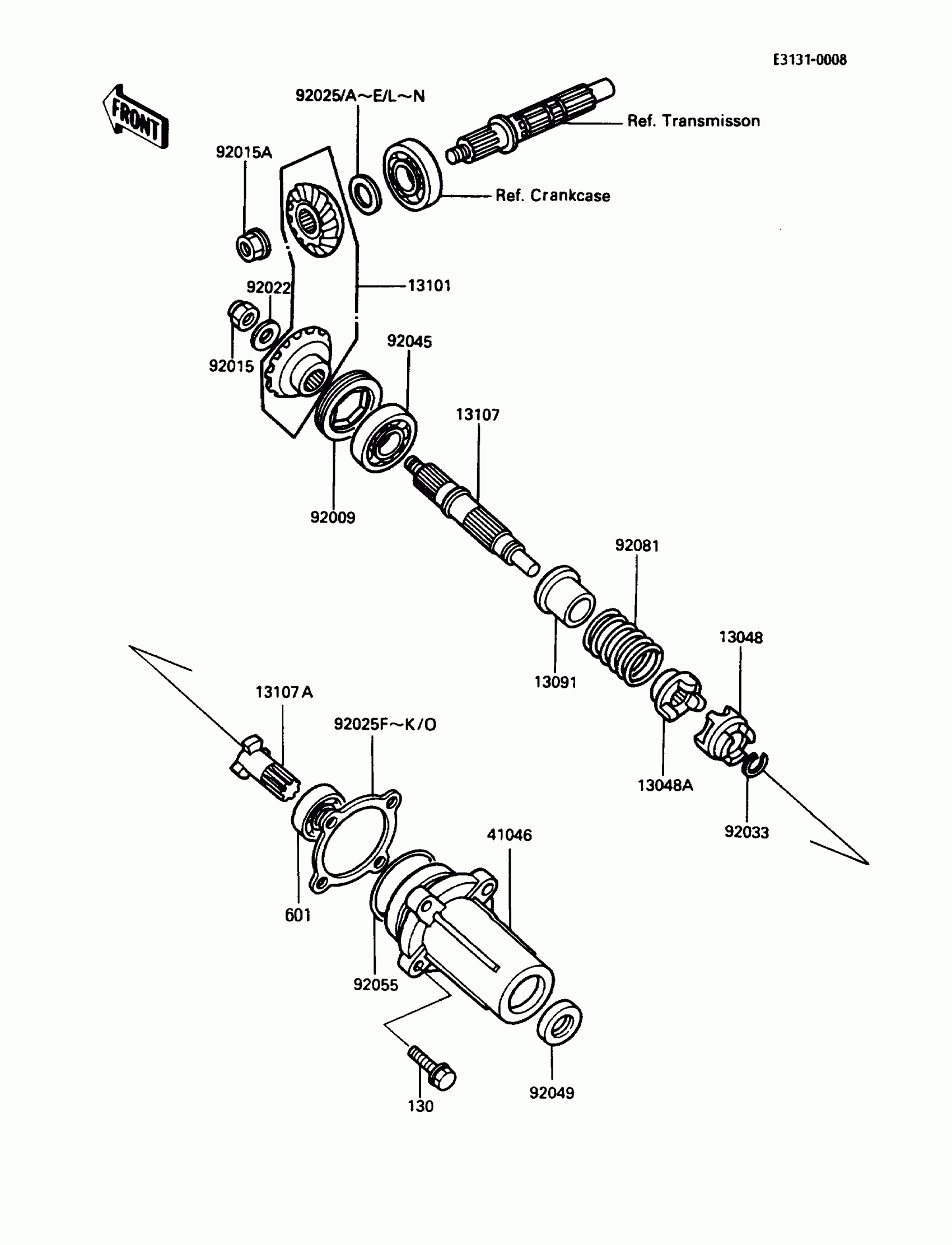

Find the part on the Front Bevel Gear diagram for your 1988 Kawasaki Bayou 185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Bayou 185 Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13048

CAM-DAMPER

13048-1053

1
Out of stock

13048A

CAM-DAMPER

13048-1054

1
Out of stock

13091

HOLDER

13091-1278

1
Out of stock

13101

GEAR-ASSY,FRONT BEVEL

13101-5047

1
Out of stock

13107

SHAFT,BEVEL GEAR,FR

13107-1109

1
Out of stock

13107A

SHAFT

13107-1110

1
Out of stock

41046

1

$113.86

In stock

92009

SCREW

92009-1290

1
Out of stock

92015

NUT,12MM

92015-1182

1
Out of stock

92015A

NUT,FLANGED,14MM

92015-1341

1

$20.37

In stock

92022

WASHER

92022-1611

1

$3.54

In stock

92025

SHIM,20.3X28X1.3

92025-1533

—
Out of stock

92025A

SHIM,20.3X28X0.7

92025-1534

—
Out of stock

92025B

SHIM,20.3X28X0.8

92025-1535

—
Out of stock

92025C

SHIM,20.3X28X0.9

92025-1536

—
Out of stock

92025D

SHIM,20.3X28X1.0

92025-1537

—
Out of stock

92025E

SHIM,20.3X28X1.2

92025-1538

—
Out of stock

92025F

SHIM,T=0.1

92025-1539

—
Out of stock

92025G

SHIM,T=0.7

92025-1540

—
Out of stock

92025H

SHIM,T=0.8

92025-1541

—
Out of stock

92025I

SHIM,T=0.9

92025-1542

—
Out of stock

92025J

SHIM,T=1.0

92025-1543

—
Out of stock

92025K

SHIM,T=1.2

92025-1544

—
Out of stock

92025L

SHIM,20.3X28X0.15

92025-1573

—
Out of stock

92025M

SHIM,20.3X28X0.20

92025-1574

—
Out of stock

92025N

SHIM,20.3X28X1.1

92025-1575

—
Out of stock

92025O

SHIM,T=0.15

92025-1576

—
Out of stock

92033

RING-SNAP,17MM

92033-1060

1

$3.39

In stock

92045

BEARING-BALL,6304CM

92045-1108

1

$36.84

In stock

92049

SEAL-OIL

92049-1169

1
Out of stock

92055

RING-O,57.6X2.4

92055-1038

1

$6.06

In stock

92081

SPRING

92081-1647

1

$10.80

In stock

130

BOLT-FLANGED,8X30

130P0830

1
Out of stock

601

1

$9.84

In stock
