1985 Kawasaki Bayou 185 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1985 Kawasaki Bayou 185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

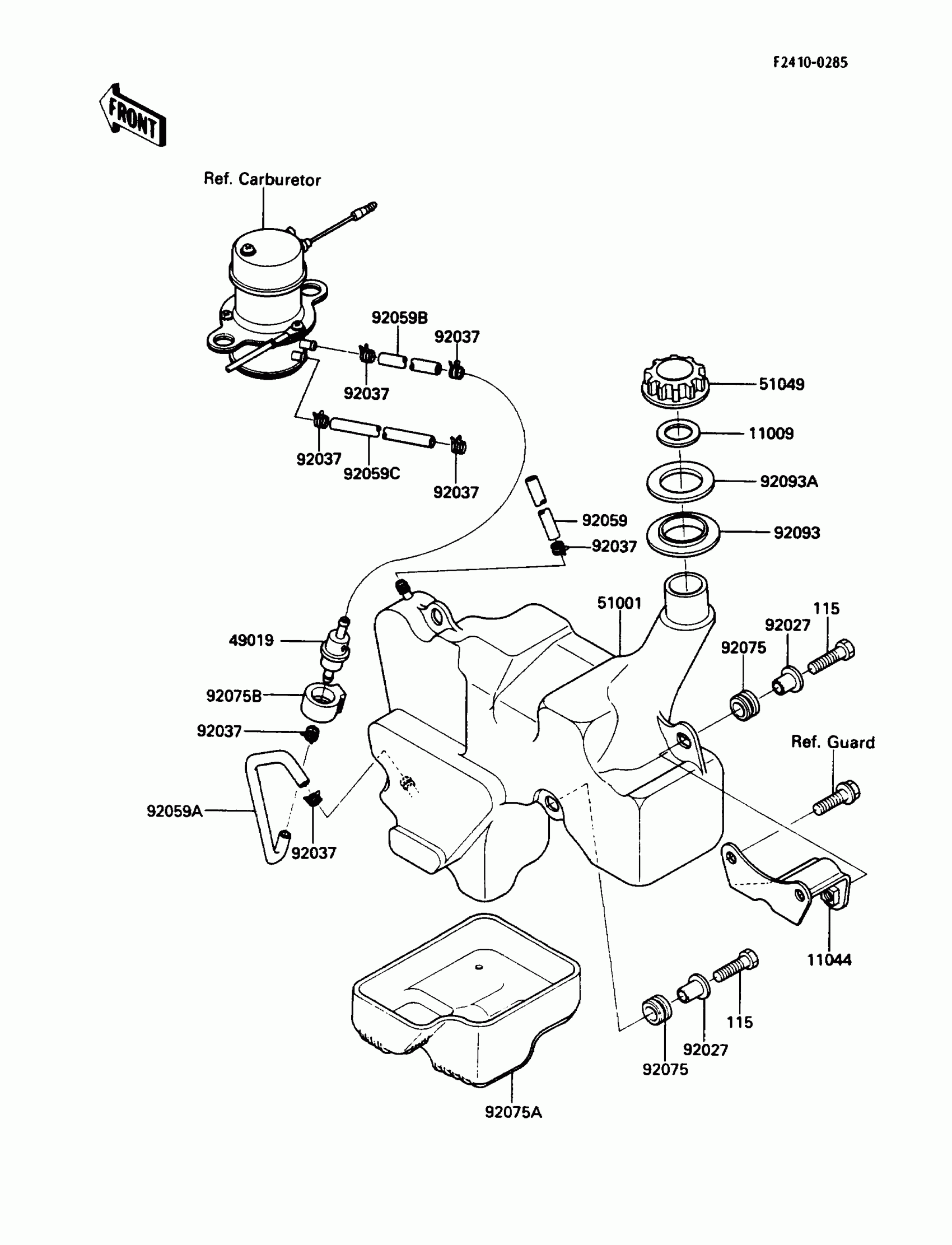

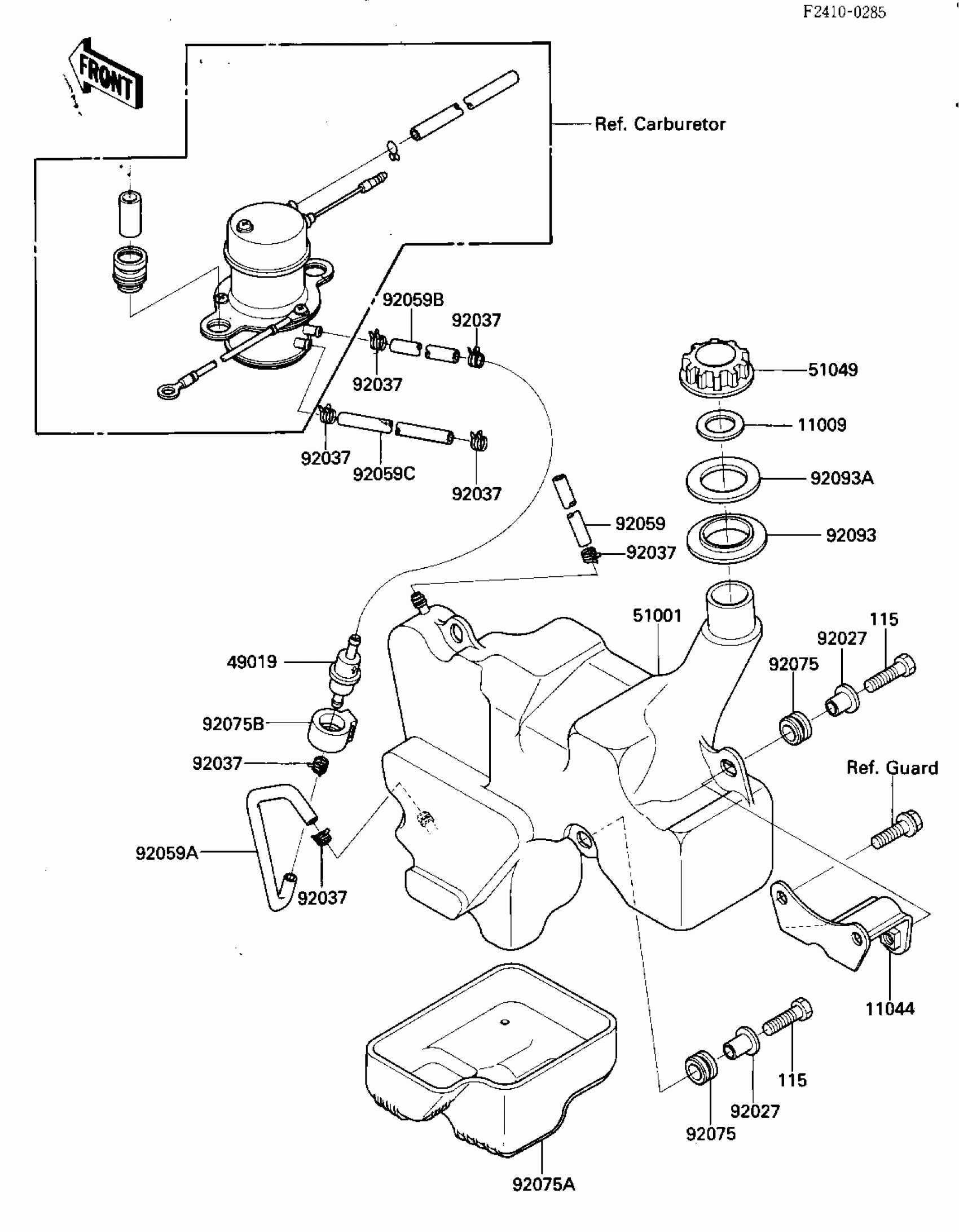

1985 Kawasaki Bayou 185 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TANK CAP

11009-3020

1
Out of stock

11044

BRACKET

11043-1876

1
Out of stock

49019

FILTER-FUEL

49019-1053

1
Out of stock

51001

TANK-COMP-FUEL

51001-1192

1
Out of stock

51049

CAP-TANK

51049-3001

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92037

CLAMP

92037-1462

1
Out of stock

92059

TUBE,6.5X11.5X800

92059-1542

1
Out of stock

92059A

TUBE

92059-1553

1
Out of stock

92059B

TUBE

92059-1554

1
Out of stock

92059C

TUBE,5.3X10.5X350

92059-1596

1
Out of stock

92075

DAMPER RUBB TANK FRNT

92075-013

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-1663

1
Out of stock

92075B

DAMPER,FUEL FILTER

92075-1701

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1175

1
Out of stock

92093A

SEAL,FUEL TANK CAP

92093-1176

1
Out of stock

115

BOLT-SMALL-UPSET,8X30

115G0830

1
Out of stock
