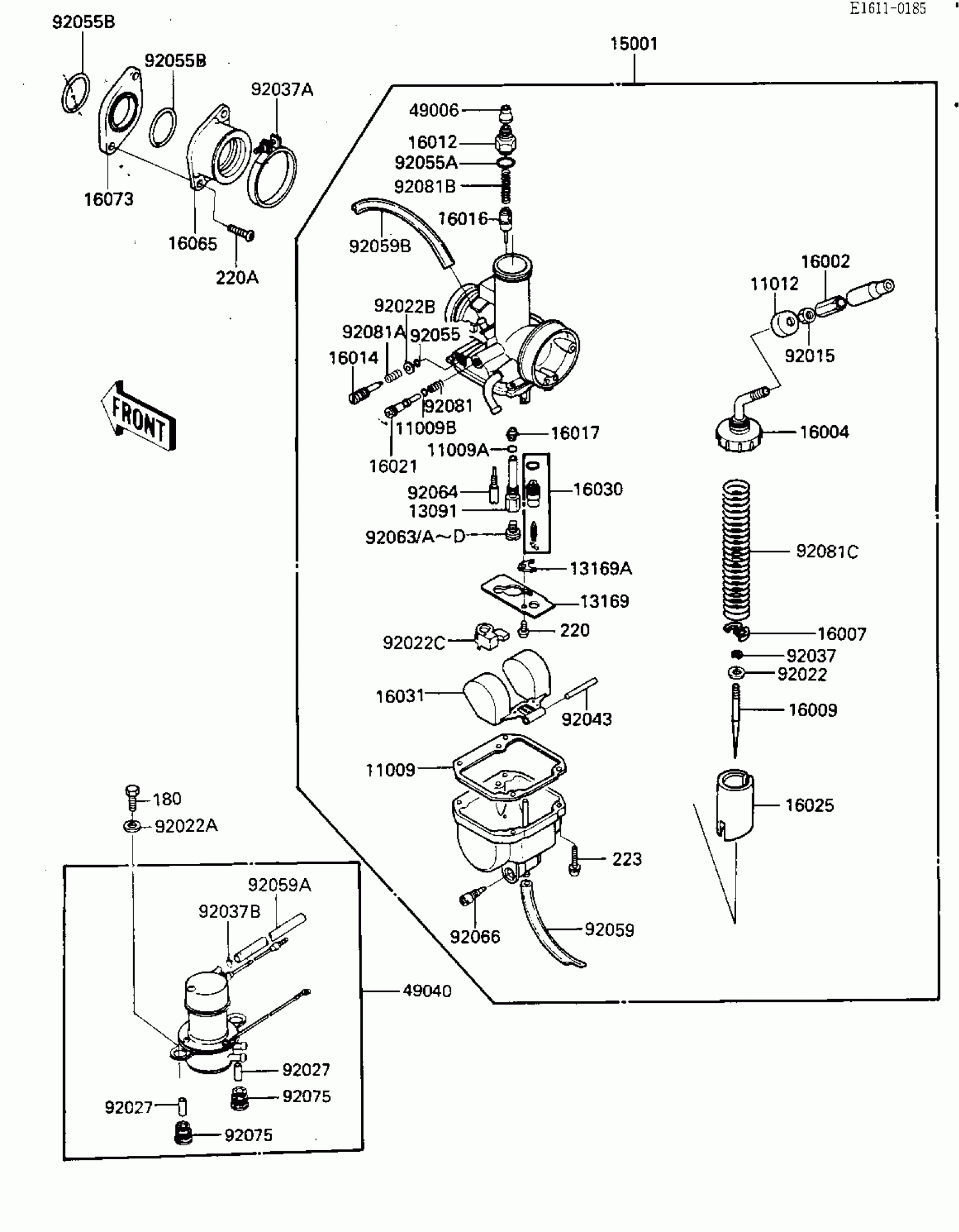

Kawasaki Bayou 185 CARBURETOR/FUEL PUMP Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1409

Unavailable

11009A

"0" RING,MAIN JET COV

16038-016

$2.23

11009B

GASKET,"O"RING

16038-022

$5.61

11012

CAP,CHAMBER CAP

11012-1389

Unavailable

13091

HOLDER,NEEDLE JET

13091-1381

Unavailable

13169

PLATE,FLOAT CHAMBER

13169-1808

Unavailable

13169A

PLATE,LOCK

13169-1809

$5.71

15001

CARBURETOR-ASSY

15001-1264

$593.83

16002

ADJUSTER-CABLE

16002-1052

$14.25

16004

CAP-CHAMBER

16004-1052

$64.88

16007

SEAT-SPRING,THROTTLE VALVE

16007-1111

$5.10

16009

NEEDLE-JET,5J14

16009-1247

Unavailable

16012

CAP-STARTER PLUNGER

16012-1056

$12.06

16014

SCREW-PILOT AIR

16014-1052

$18.03

16016

PLUNGER,STARTER

16016-1056

Unavailable

16017

JET-NEEDLE,O-2

16017-1244

$46.67

16021

SCREW-THROTTLE STOP

16021-1111

Unavailable

16025

VALVE-THROTTLE,CA3.5

16025-1117

$145.36

16030

VALVE-FLOAT,#1.0

16030-1055

Unavailable

16031

FLOAT

16031-1055

$47.31

16065

HOLDER-CARBURETOR

16065-1109

Unavailable

16073

INSULATOR

16073-1053

$10.19

49006

BOOT,STARTER PLUNGER

49006-1164

$10.71

49040

PUMP-FUEL

49040-1053

$216.18

92015

NUT,CABLE ADJUST LOCK

92015-1362

$4.22

92022

WASHER,THROTTLE VALVE

92022-1024

$5.25

92022A

WASHER,6.5X16X2

92022-1565

$2.99

92022B

WASHER,ADJUST SCREW

92022-1187

$5.42

92022C

WASHER,NEEDLE JET

92022-1530

Unavailable

92027

COLLAR,6X22

92027-1581

Unavailable

92037

CLAMP,E-TYPE

16008-010

$7.02

92037A

CLAMP

92037-1326

$6.85

92037B

CLAMP,FUEL TUBE

92037-1395

$2.71

92043

PIN,FLOAT

16032-003

$5.95

92055

RING-O,ADJUST SCREW

92055-1078

$4.27

92055A

RING-O,STARTER PLUNGER

92055-1252

$4.02

92055B

RING-O,32MM

92055-1256

$9.95

92059

TUBE,3X5X400

92059-1653

Unavailable

92059A

TUBE,4.5X8.5X400

92059-1586

$7.71

92059B

TUBE,5X8X430

92059-1594

$15.03

92063

MAIN JET,#A105R

92063-1042

$12.27

92063A

MAIN JET,#A102.5

92063-1028

$16.63

92063B

JET-MAIN,#A95R

92063-1031

$13.63

92063C

MAIN JET,#A100

92063-1033

$25.14

92063D

MAIN JET,#A97.5R

92063-1035

Unavailable

92064

JET-PILOT,#22.5

92064-1114

Unavailable

92066

PLUG,DRAIN

92066-1171

$14.88

92075

DAMPER,FUEL PUMP

92075-1481

Unavailable

92081

SPRING,STOP SCREW

92081-1153

$4.39

92081A

SPRING,PILOT AIR SCREW

92081-1690

$5.37

92081B

SPRING,STARTER PLUNGER

92081-1705

Unavailable

92081C

SPRING,THROTTLE VALVE

92081-1860

Unavailable

220A

SCREW-PAN-CROS, 6X20

220C0620

Unavailable

223

SCREW-PAN-WS-CROS

223B0416

Unavailable
