Description

Price

32002

FRAME-COMP

32002-1857

$1,073.11

39111

ROD-TIE,RH

39111-1054

$38.25

39111A

ROD-TIE,LH

39111-1061

$38.25

39112

RODEND-TIE

39112-1051

$92.76

39112A

RODEND-TIE

39112-1052

$86.52

39114

SHAFT-COMP-STRG

39114-1053

$184.68

59266

JOINT-BALL

59266-1066

Unavailable

92015

NUT,LOCK,FLANGED,10MM

92015-1338

$10.28

92015A

NUT,LOCK,10MM

92015-1460

$6.52

92015B

NUT,LOCK,10MM

92015-1494

$6.22

92022

WASHER,PLAIN,10M/M

92022-137

$4.50

92027

COLLAR,10X21.3X7

92027-1817

$15.14

92037

CLAMP,STEERING SHAFT

92037-1839

$69.53

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$7.29

92066

PLUG

92066-1220

$4.96

120

BOLT,8X50

120P0850

$4.89

183

BOLT-UPSET-WS-SMALL

183G0822

$5.21

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

320

NUT-CASTLE

320H1000

$7.88

550

PIN COTTER 2.0X15

550D2015

$1.04

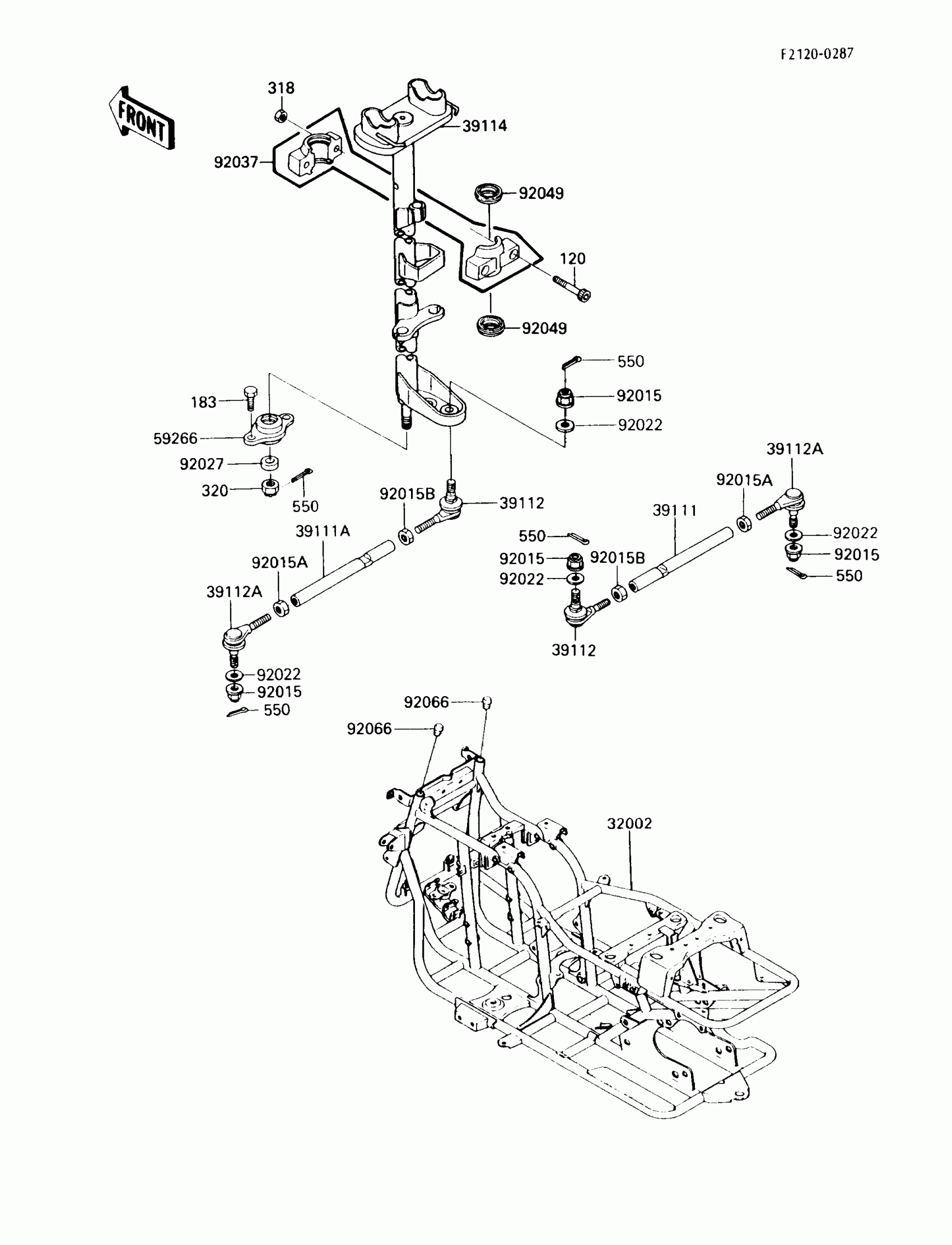

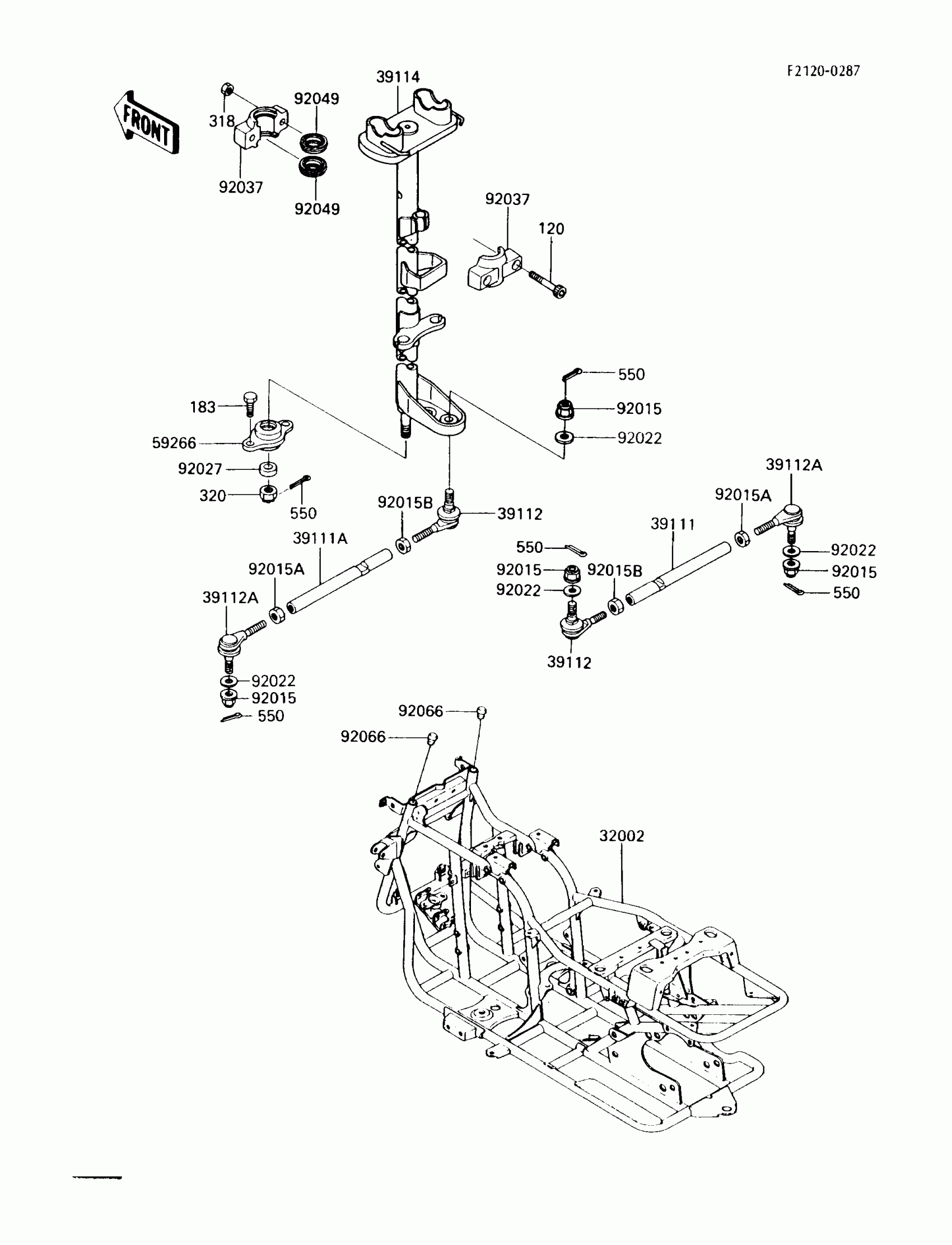

Kawasaki Bayou 185 Frame Diagram

FRAME-COMP

ROD-TIE,RH

ROD-TIE,LH

RODEND-TIE

RODEND-TIE

SHAFT-COMP-STRG

JOINT-BALL

NUT,LOCK,FLANGED,10MM

NUT,LOCK,10MM

NUT,LOCK,10MM

WASHER,PLAIN,10M/M

COLLAR,10X21.3X7

CLAMP,STEERING SHAFT

SEAL-OIL,SR7 25 34 7.8 NS

PLUG

BOLT,8X50

BOLT-UPSET-WS-SMALL

NUT-HEX-SMALL,8MM

NUT-CASTLE

PIN COTTER 2.0X15
