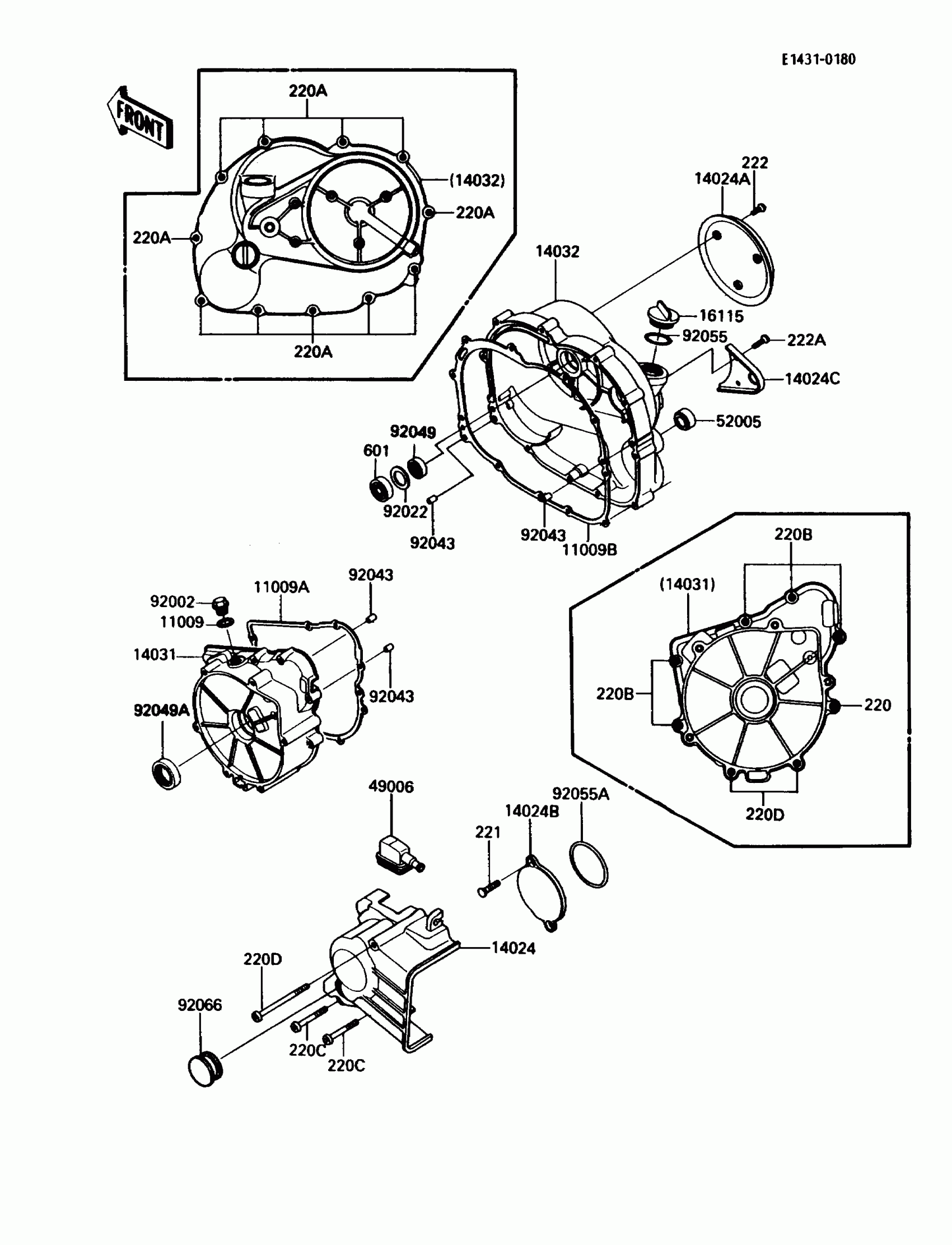

Kawasaki Bayou 185 Engine Cover(s) Diagram
#
Description
Price
11009
GASKET,14.3X20X1
11009-1238
$3.89
11009A
GASKET,GENERATOR COVER
11009-1393
Unavailable
11009B
GASKET,CLUTCH COVER
11009-1395
Unavailable
14024
COVER,GEAR CASE
14024-1241
Unavailable
14024A
COVER
14025-1807
$38.87
14024B
COVER
14025-1813
$33.38
14024C
COVER
14025-1838
Unavailable
14031
COVER-GENERATOR
14031-1173
Unavailable
14032
COVER-CLUTCH
14032-1158
Unavailable
16115
CAP-OIL FILLER
16115-1009
$14.30
49006
BOOT
49006-1183
Unavailable
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92002
BOLT,14X10
92002-1513
$9.77
92022
WASHER,21X31.5X1.0
92022-1624
$5.00
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92049
SEAL-OIL
92049-1191
$24.41
92049A
SEAL-OIL,TC25356
92049-1317
$13.97
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,55MM
92055-1120
$5.52
92066
PLUG
92066-1231
$5.66
220
SCREW-PAN-CROS,6X25,B
220C0625
$3.41
220A
SCREW-PAN HEAD,6X30
220C0630
$1.89
220B
SCREW-PAN-CROS,6X35,B
220C0635
$5.38
220C
SCREW-PAN-CROS
220C0650
$3.23
220D
SCREW-PAN-CROS,6X70
220C0670
$2.98
221
SCREW-CSK-CROS,6X18
221B0618
$3.41
222
SCREW-CSK-RD-CROS
222C0510
$2.15
222A
SCREW-CSK-RD-CROS
222C0518
$4.67
601
BEARING-BALL,#6201C3
601B6201
$10.98
