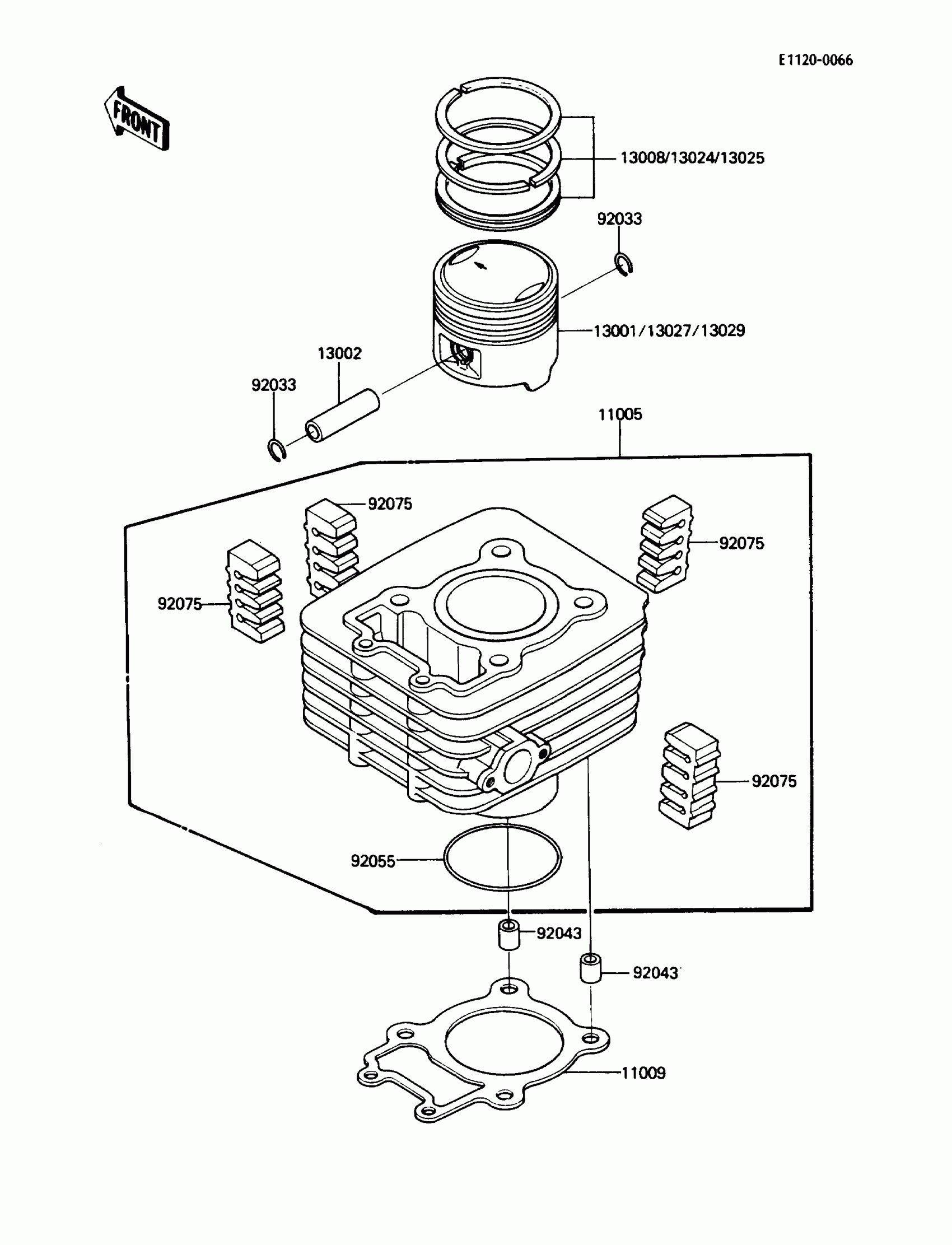

Kawasaki Bayou 185 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1396

Unavailable

11009

GASKET,CYLINDER BASE

11009-1450

Unavailable

13001

PISTON-ENGINE,STD

13001-1182

Unavailable

13002

PIN-PISTON

13002-1001

$6.22

13008

RING-SET-PISTON,STD

13008-1060

Unavailable

13024

RING-SET-PISTON LL,O/S 1.00

13024-1060

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-1060

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1126

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1125

Unavailable

92033

RING-SNAP,PISTON PIN

92033-1151

$3.89

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O,68.6MM

92055-1178

$9.57

92075

DAMPER

92075-1657

$13.84
