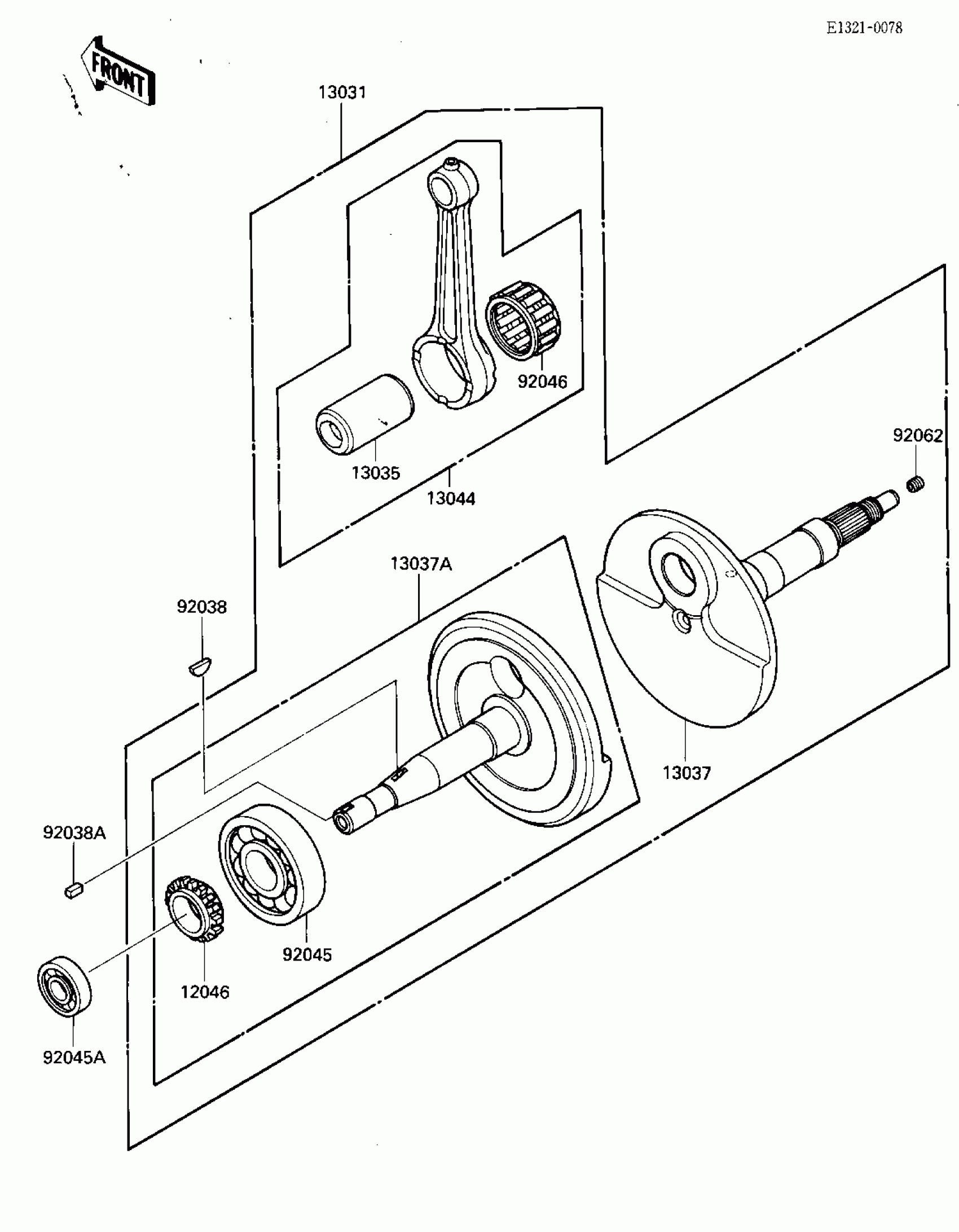

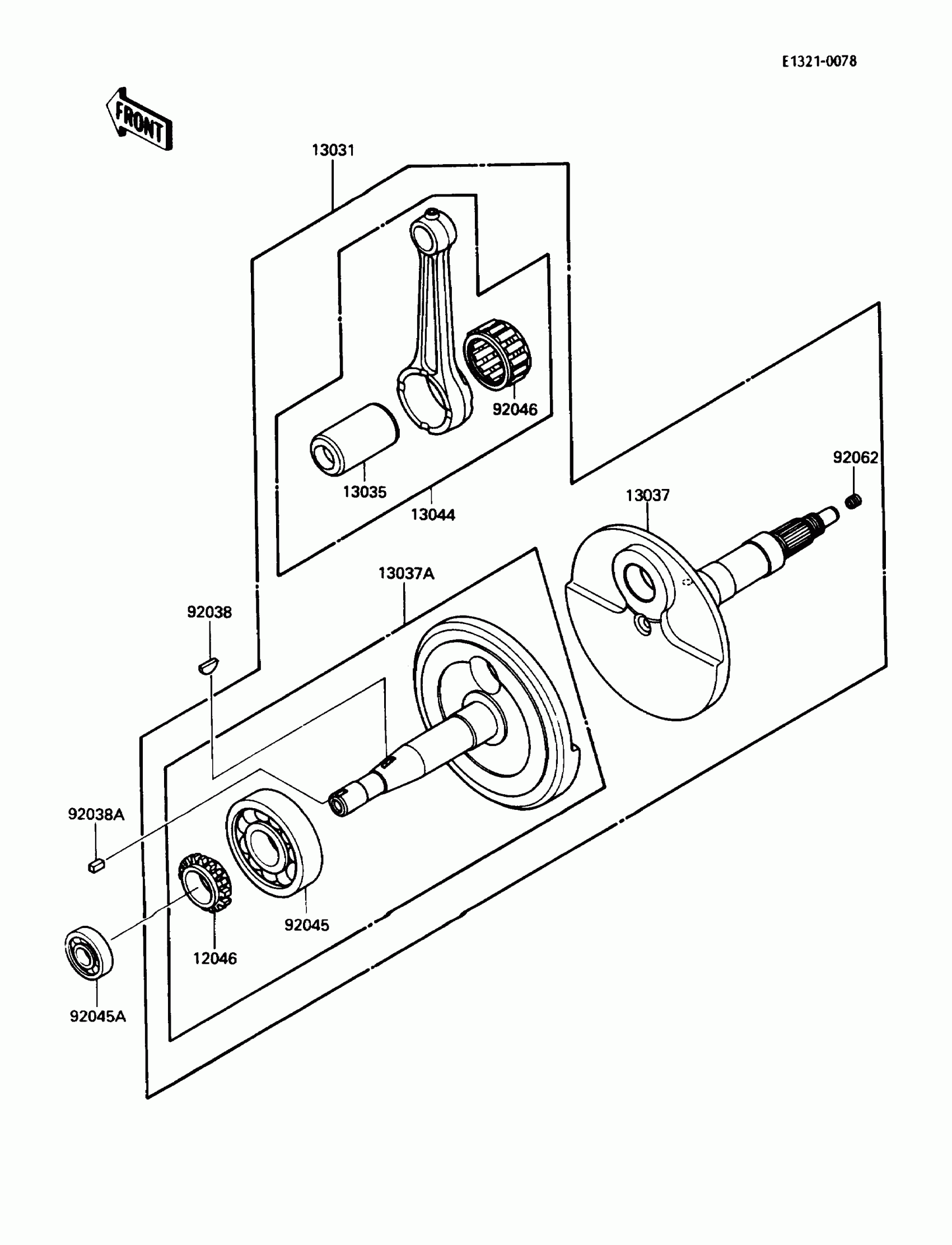

Kawasaki Bayou 185 Crankshaft Diagram

Description

Price

12046

SPROCKET,CAM CHAIN,19T

12046-1058

Unavailable

13031

CRANKSHAFT-COMP

13031-1216

Unavailable

13035

PIN-CRANK

13035-1063

$69.53

13037

CRANKSHAFT,RH

13037-1259

Unavailable

13037A

CRANKSHAFT,LH

13037-5044

Unavailable

13044

SET-CONNECTING ROD

13044-5054

Unavailable

92038

KEY,WOODRUFF

92038-001

$4.96

92038A

KEY,SUNK

92038-1051

$5.73

92045

BEARING-BALL,6305JR2C3

92045-1120

$36.26

92045A

BEARING-BALL,#6903C3

92045-1131

$24.67

92046

BEARING-NEEDLE

92046-1126

$40.11

92062

NOZZLE

92062-1053

$6.61
