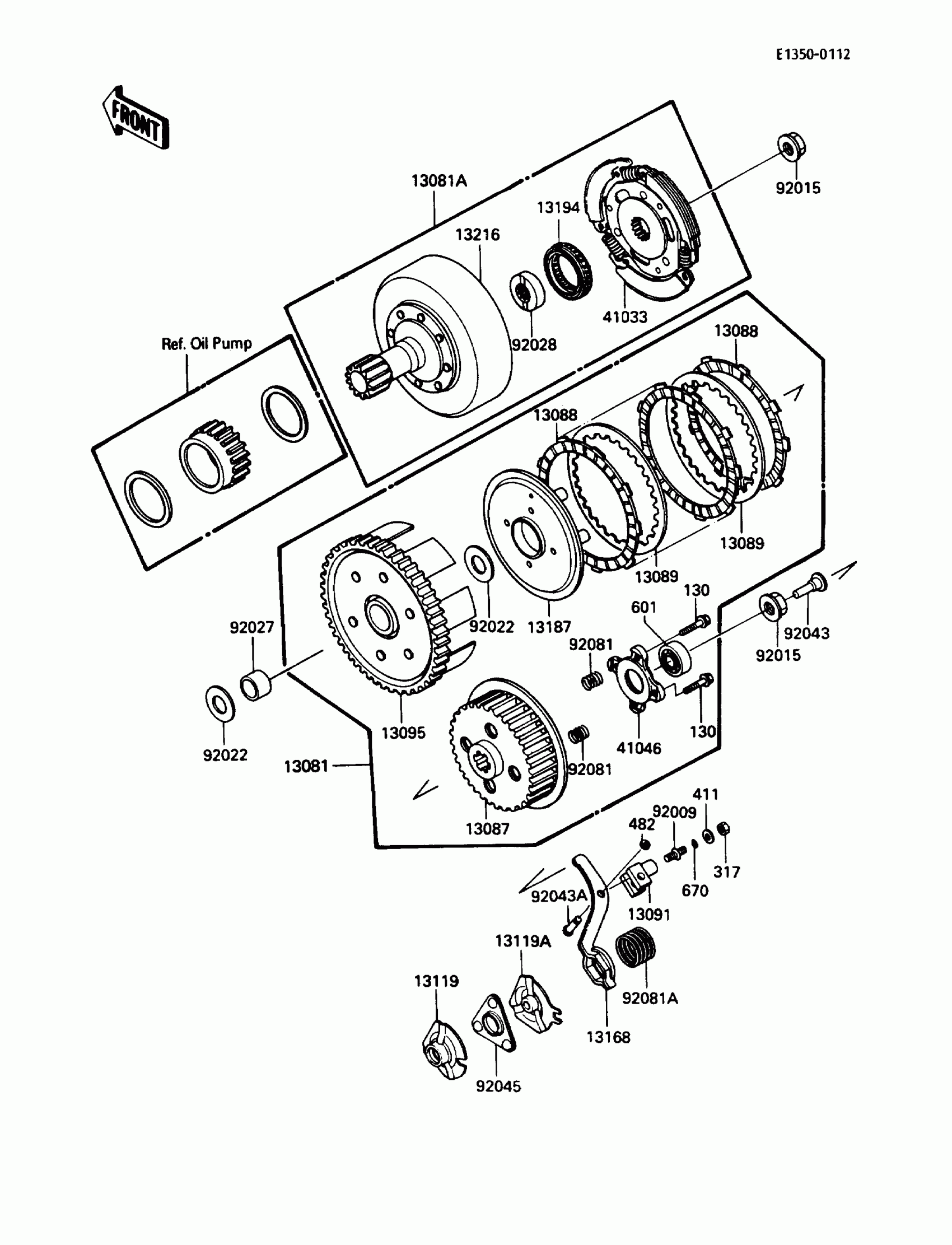

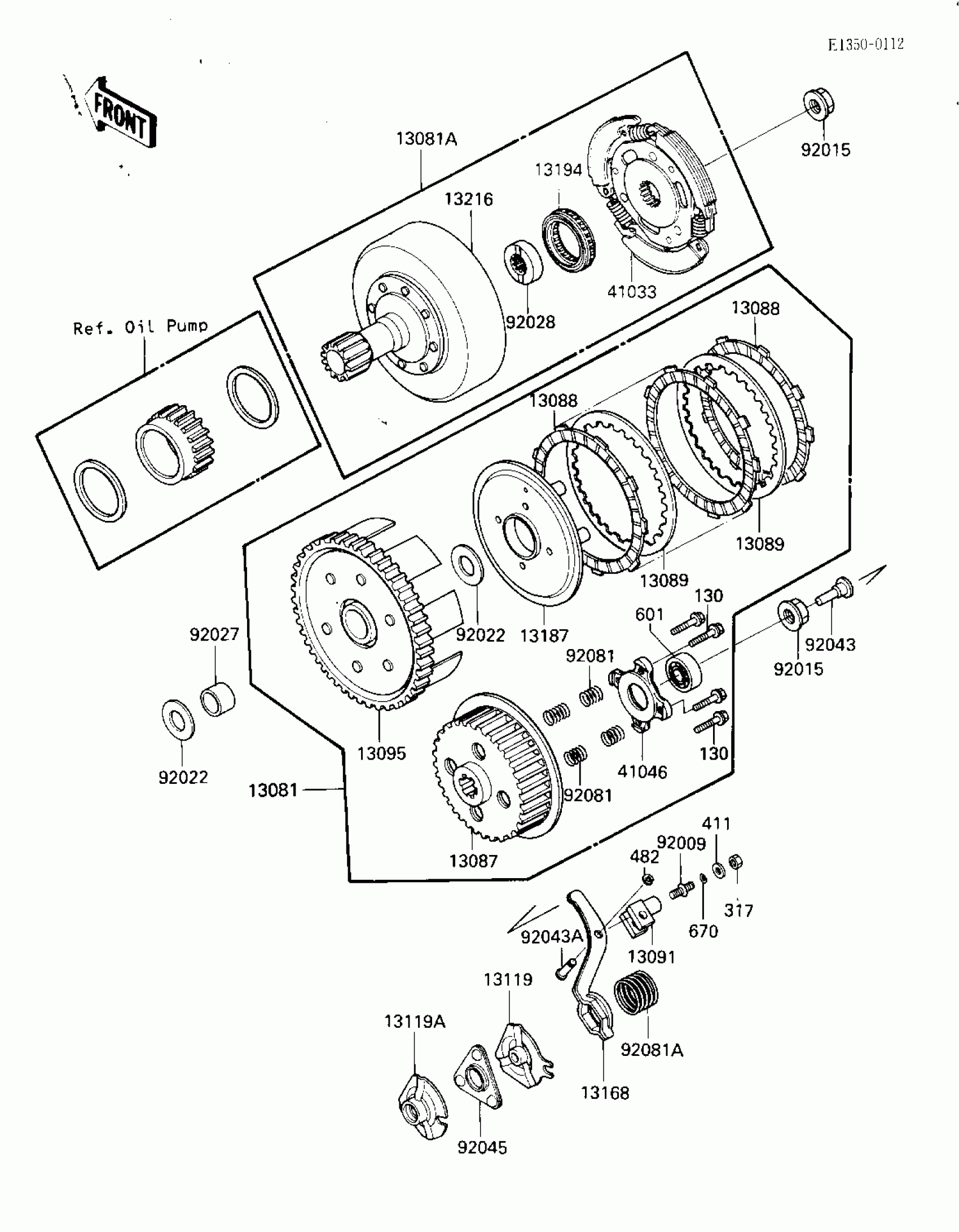

Kawasaki Bayou 185 CLUTCH Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1205

Unavailable

13081A

CLUTCH-ASSY,FR,ENGINE

13081-1209

Unavailable

13087

HUB-CLUTCH

13087-1054

Unavailable

13088

PLATE-FRICTION

13088-1016

$13.90

13089

PLATE-CLUTCH

13089-1012

$14.05

13091

HOLDER,CLUTCH RELEASE

13091-1341

$46.88

13095

HOUSING-COMP-CLUTCH

13095-1134

Unavailable

13119

CAM-RELEASE

13119-1060

Unavailable

13119A

CAM-RELEASE

13119-1054

Unavailable

13168

LEVER,CLUTCH RELEASE

13168-1223

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1051

Unavailable

13194

CLUTCH-ONEWAY

13194-1055

$124.11

13216

GEAR-COMP,CLUTCH

13216-1055

Unavailable

41033

HUB-ASSY,CLUTCH

41033-1567

Unavailable

41046

HOUSING-BEARING

41046-1055

$47.62

92009

SCREW,CLUTCH RELEASE

92009-1303

$12.48

92015

NUT,16MM

92015-1465

$18.57

92022

WASHER,20.5X34X1.4

92022-168

$9.51

92027

COLLAR,20X25X21

92027-1798

$30.14

92028

BUSHING,CLUTCH

92028-1292

$66.59

92043

PIN,CLUTCH

92043-1229

$20.71

92043A

PIN,CLUTCH RELEASE

92043-1230

$12.48

92045

RETAINER,CLUTCH RELEASE

14020-1093

$20.75

92081

SPRING,CLUTCH

92081-1680

$9.28

92081A

SPRING

92081-1681

$7.76

130

BOLT-FLANGED,6X20

130P0620

$1.70

317

NUT-HEX-SMALL,8MM

317B0800

$0.67

411

WASHER PLAIN 8MM

411B0800

$0.93

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.69

601

BEARING-BALL,#6201C3

601B6201

$10.98

670

O RING,8MM

670B1508

$1.29
