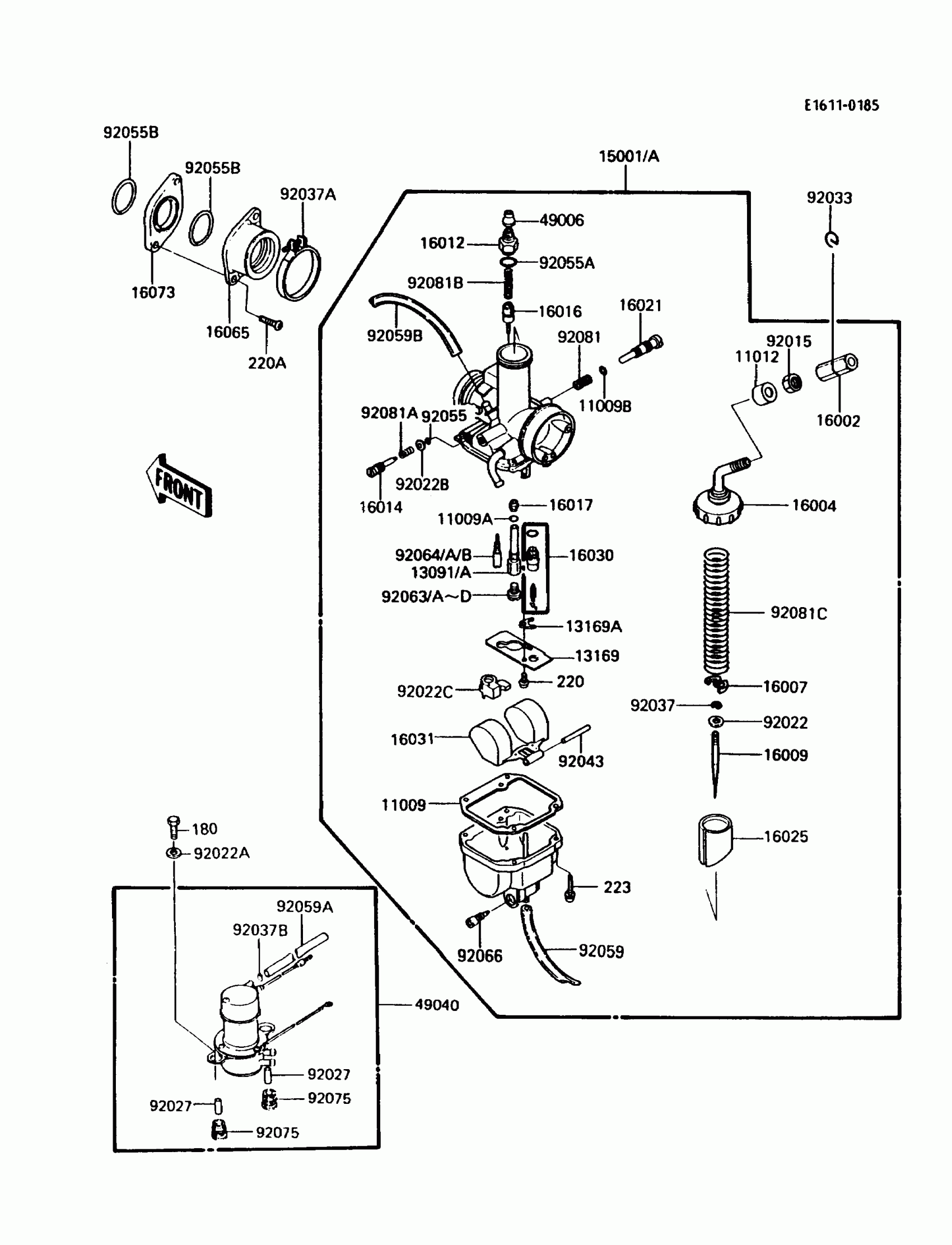

Kawasaki Bayou 185 Carburetor Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1409

Unavailable

11009A

"0" RING,MAIN JET COV

16038-016

$3.02

11009B

GASKET,"O"RING

16038-022

$6.89

11012

CAP,CHAMBER CAP

11012-1389

Unavailable

13091A

HOLDER,NEEDLE JET

13091-1438

Unavailable

13169

PLATE,FLOAT CHAMBER

13169-1808

Unavailable

13169A

PLATE,LOCK

13169-1809

$6.57

15001A

CARBURETOR-ASSY

15001-1322

$580.65

16002

ADJUSTER-CABLE

16002-1006

Unavailable

16004

CAP-CHAMBER

16004-1052

$63.67

16007

SEAT-SPRING,THROTTLE VALVE

16007-1111

$5.83

16009

NEEDLE-JET,5J14

16009-1247

Unavailable

16012

CAP-STARTER PLUNGER

16012-1054

$15.45

16014

SCREW-PILOT AIR

16014-1052

$18.80

16016

PLUNGER,STARTER

16016-1056

Unavailable

16017

JET-NEEDLE,O-2

16017-1244

$45.79

16021

SCREW-THROTTLE STOP

16021-1117

Unavailable

16025

VALVE-THROTTLE,CA 3.5

16025-1155

$116.05

16030

VALVE-FLOAT,#1.0

16030-1055

Unavailable

16031

FLOAT

16031-1055

$53.59

16065

HOLDER-CARBURETOR

16065-1109

Unavailable

16073

INSULATOR

16073-1053

$10.56

49006

BOOT,STARTER PLUNGER

49006-1164

$14.10

49040

PUMP-FUEL

49040-1053

$211.60

92015

NUT,CABLE ADJUST LOCK

92015-1575

$6.54

92022

WASHER,THROTTLE VALVE

92022-1024

$6.61

92022A

WASHER,6.5X16X2

92022-116

$3.92

92022B

WASHER,ADJUST SCREW

92022-1187

$6.22

92022C

WASHER,NEEDLE JET

92022-1530

Unavailable

92027

COLLAR,6X22

92027-1581

Unavailable

92033

RING-SNAP

92036-018

$3.89

92037

CLAMP,E-TYPE

16008-010

$9.21

92037A

CLAMP

92037-1326

$8.98

92037B

CLAMP,FUEL TUBE

92037-1395

$3.42

92043

PIN,FLOAT

16032-003

$6.57

92055

RING-O,ADJUST SCREW

92055-1078

$6.27

92055A

RING-O,STARTER PLUNGER

92055-1242

$5.29

92055B

RING-O,32MM

92055-1256

$13.08

92059

TUBE,3X5X400

92059-1490

Unavailable

92059A

TUBE,4.5X8.5X400

92059-1586

$8.28

92059B

TUBE,5X8X430

92059-1594

$15.91

92063

JET-MAIN,#105R

92063-072

$15.74

92063A

JET-MAIN NO 107.5R

92063-073

$15.74

92063B

MAIN JET,#110R

92063-074

$16.50

92063C

JET-MAIN NO 112.5R

92063-075

$15.42

92063D

JET-MAIN NO 115R

92063-076

$15.42

92064

JET-PILOT,#22.5

92064-1114

Unavailable

92064A

JET-PILOT,#20

92064-1121

Unavailable

92064B

JET-PILOT,#25

92064-1124

$17.95

92066

PLUG,DRAIN

92066-1171

$15.74

92075

DAMPER,FUEL PUMP

92075-1481

Unavailable

92081

SPRING,STOP SCREW

92081-1153

$4.96

92081A

SPRING,PILOT AIR SCREW

92081-1690

$6.16

92081B

SPRING,STARTER PLUNGER

92081-1705

Unavailable

92081C

SPRING,THROTTLE VALVE

92081-1860

Unavailable

180

BOLT-UPSET-WS

180G0635

$2.96

220

SCREW-PAN-CROS,3X6

220B0306

$0.63

220A

SCREW-PAN-CROS, 6X20

220C0620

$1.47

223

SCREW-PAN-WS-CROS

223B0416

$0.67
