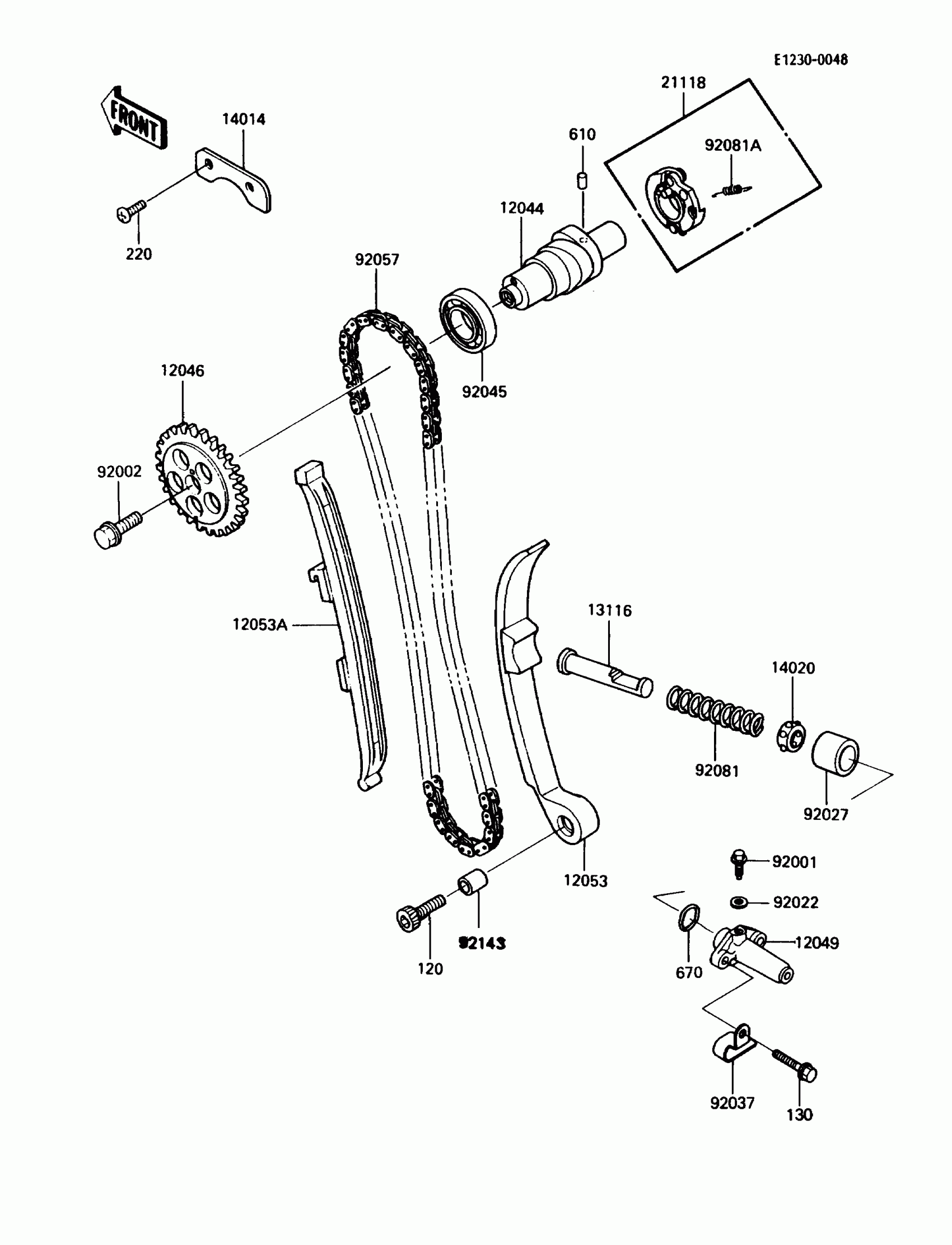

Kawasaki Bayou 185 Camshaft(s)/Tensioner Diagram
#
Description
Price
12044
CAMSHAFT-VALVE
12044-1148
Unavailable
12046
SPROCKET,CAM CHAIN
12046-1059
$30.59
12049
TENSIONER,CAM CHAIN
12049-1055
$46.14
12053
GUIDE-CHAIN,RR
12053-1120
Unavailable
12053A
GUIDE-CHAIN,FR
12053-1121
Unavailable
13116
ROD,PUSH,CAM CHAIN
13116-1019
$16.13
14014
PLATE-POSITION
14014-1054
$5.33
14020
RETAINER,TENSIONER
14020-1054
$21.77
21118
DECOMPRESSOR
21118-1059
$109.32
92001
BOLT,TENSIONER ADJUST
92001-1155
$5.33
92002
BOLT,10X23
92001-1859
$9.91
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92027
COLLAR,TENSIONER
92027-1273
$32.58
92037
CLAMP
92037-1724
$5.33
92045
BEARING-BALL,#6005C4
92045-1056
$24.27
92057
CHAIN,CAM,79RH2010-102L
92057-1165
Unavailable
92081
SPRING,TENSIONER
92081-1105
$4.55
92081A
SPRING,DECOMPRESSOR
92081-1674
$7.64
92143
COLLAR,6X8X10.2
92143-1253
$5.78
120
BOLT,SOCKET,6X22
120P0622
$1.92
130
BOLT-FLANGED,6X25
130Y0625
$4.11
220
SCREW-PAN-CROS,6X14
220B0614
$1.48
610
ROLLER,4X8
610A0408
$4.31
670
O RING,21MM
670B2021
$4.69
