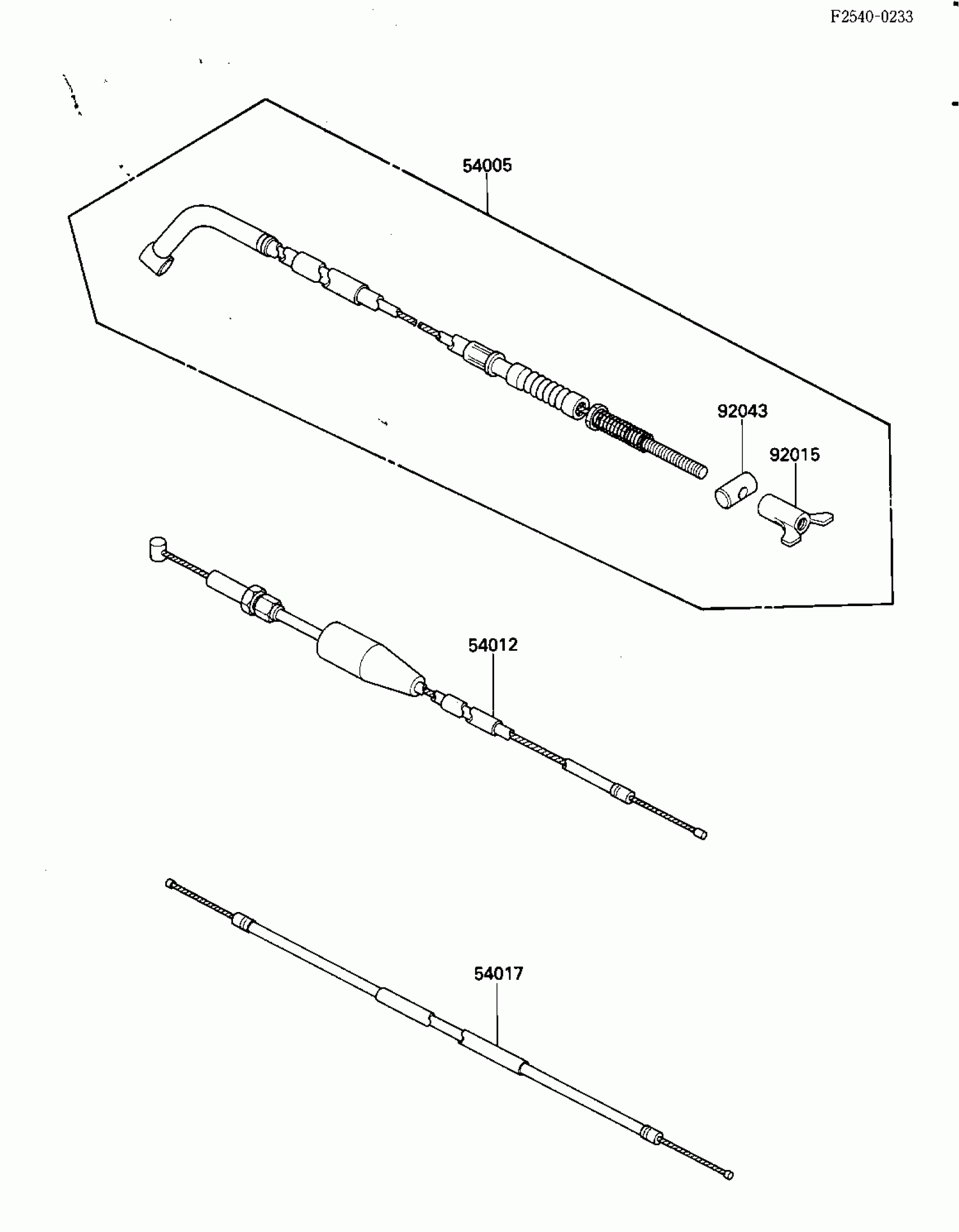

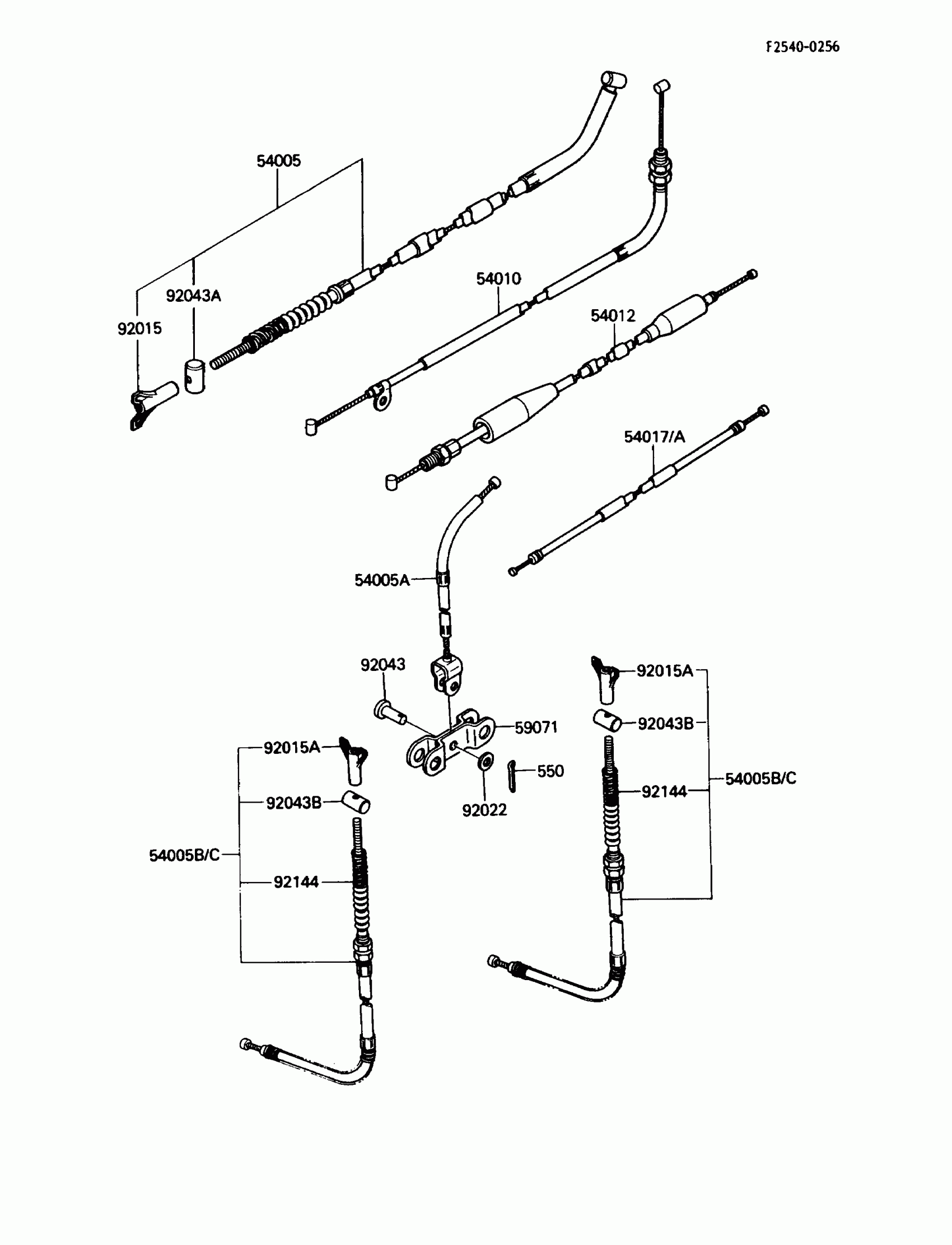

Kawasaki Bayou 185 Cables Diagram

Description

Price

54005

CABLE-BRAKE,RR

54005-1109

Unavailable

54005A

CABLE-BRAKE,FR,UPP

54005-1129

Unavailable

54005C

CABLE-BRAKE,FR,LWR

54005-1150

Unavailable

54010

CABLE,REVERSE

54010-1056

Unavailable

54012

CABLE-THROTTLE

54012-1284

Unavailable

54017A

CABLE-STARTER

54017-1084

$30.67

59071

JOINT

59071-1117

Unavailable

92015

NUT,WING,6MM

92015-1497

Unavailable

92015A

NUT,CABLE ADJUSTER LOCK

92015-1608

$6.46

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92043

PIN,8X16

92043-1013

$9.91

92043A

PIN,12X20

92043-1280

Unavailable

92043B

PIN,BRAKE CABLE

92043-1334

Unavailable

92144

SPRING,BRAKE CABLE

92144-1051

$6.54

550

PIN COTTER 2.0X15

550D2015

$1.04
