1985 Kawasaki Bayou 185 Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 1985 Kawasaki Bayou 185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

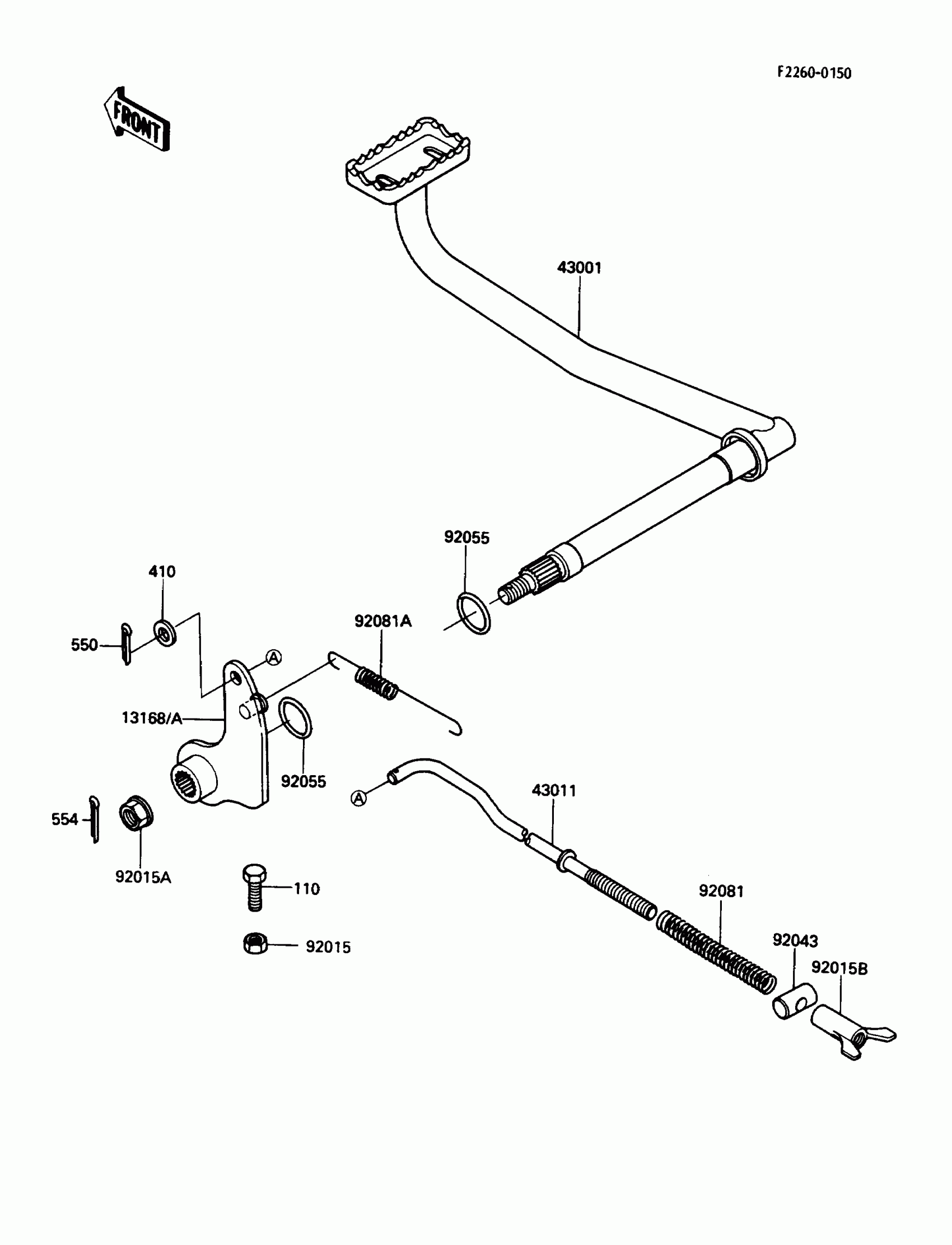

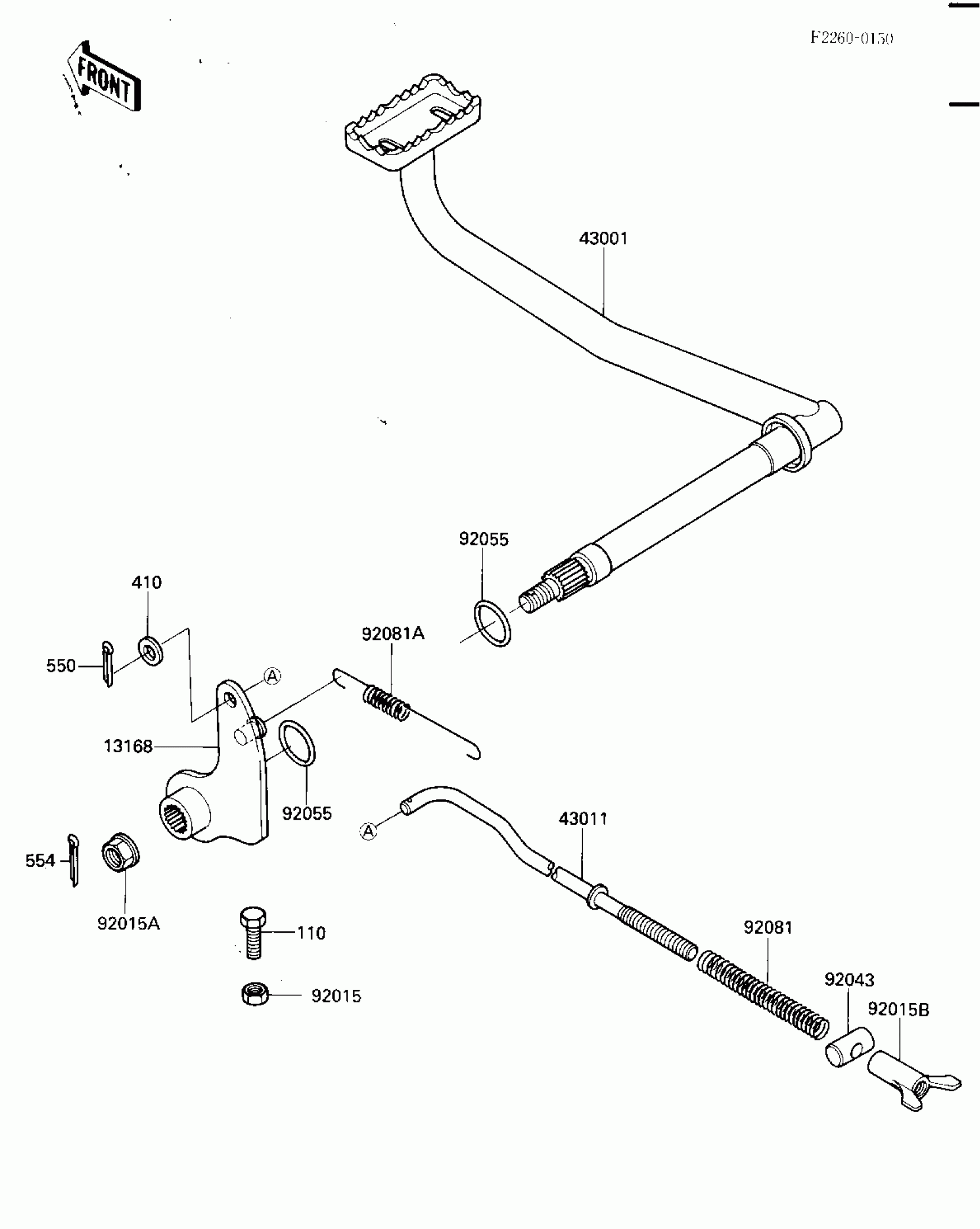

1985 Kawasaki Bayou 185 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,BRAKE

13168-1246

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1171

1
Out of stock

43011

ROD-BRAKE

43011-1038

1
Out of stock

92015

NUT,6MM

92015-1410

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92015B

NUT,WING,6MM

92015-1497

1
Out of stock

92043

PIN,12X20

92043-1280

1
Out of stock

92055

RING-O,23.7X1.9

92055-1257

1
Out of stock

92081

SPRING,BRAKE ROD

43012-001

1
Out of stock

92081A

SPRING,SIDE STAND,L=177,BLACK

92081-1480

1
Out of stock

110

BOLT

110D0622

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

554

PIN-SNAP,10MM

554A1000

1
Out of stock
