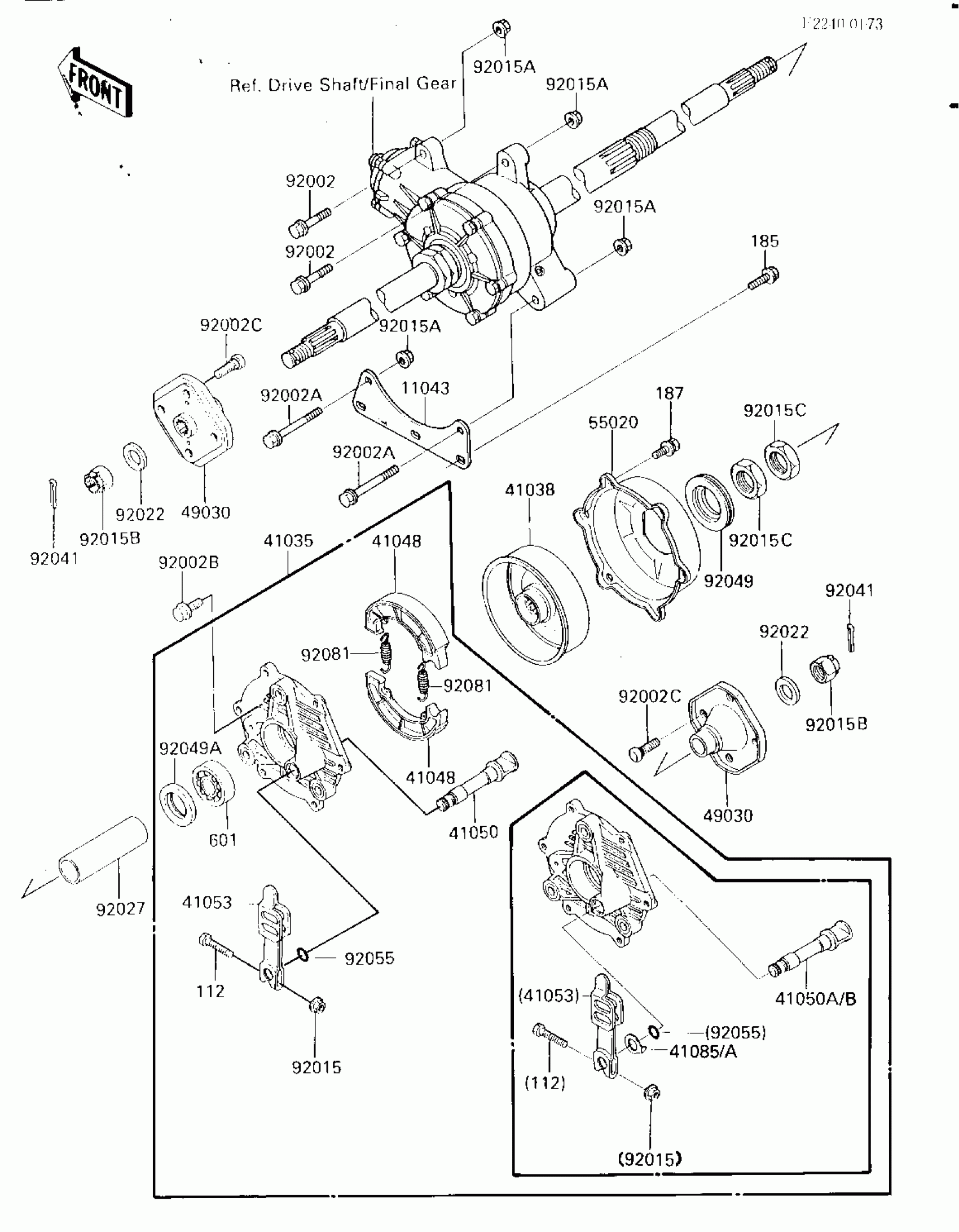

Kawasaki Bayou 185 REAR HUB/BRAKE (F/NO.012887-) Diagram

#

Description
Price

11043

BRACKET

11043-1550

Unavailable

41035

PANEL-ASSY-BRAKE,RR

41035-1246

$566.59

41038

DRUM,RR BRAKE

41038-1163

$224.48

41048

SHOE-BRAKE

41048-1069

$22.11

41050

CAM-BRAKE

41050-1057

$64.88

41050B

CAM-BRAKE

41050-1062

$64.88

41053

LEVER-BRAKE CAM

41053-1056

$34.95

41085A

INDICATOR

41085-1053

$13.17

49030

HUB,RR

49030-1076

$130.26

55020

GUARD,RR BRAKE DRUM

55020-1175

$19.80

92002

BOLT,FLANGED,10X38

92002-1313

$7.25

92002A

BOLT,FLANGED,10X70

92002-1315

$7.89

92002B

BOLT,FLANGED,10X20

92002-1368

$4.75

92002C

BOLT,10MM

92002-1459

$4.04

92015

NUT,6MM

41072-007

$2.99

92015A

NUT,FLANGED,10MM

92015-1428

$3.81

92015B

NUT,CASTLE,18MM

42045-018

$7.01

92015C

NUT,LOCK,32MM

92015-1493

Unavailable

92022

WASHER,18.3X34X4.5

92022-1658

$3.42

92027

COLLAR,RR HUB,L=124.5

92027-1758

$54.60

92041

COTTER,4.0X35

92041-1053

$2.99

92049

SEAL-OIL,RR BRAKE DRUM

92049-1194

Unavailable

92049A

SEAL-OIL,REAR HUB

92049-4001

$16.61

92055

RING-O,16.8X2.4

92055-1258

$3.74

92081

SPRING,BRAKE SHOE

42020-004

$6.48

112

BOLT-UPSET

112H0640

Unavailable

185

BOLT-UPSET-WSP-SMALL

185H0818

$2.41

187

BOLT 6X14

187B0614

Unavailable

601

BEARING-BALL,#6007UU

601A6007UU

$42.91
