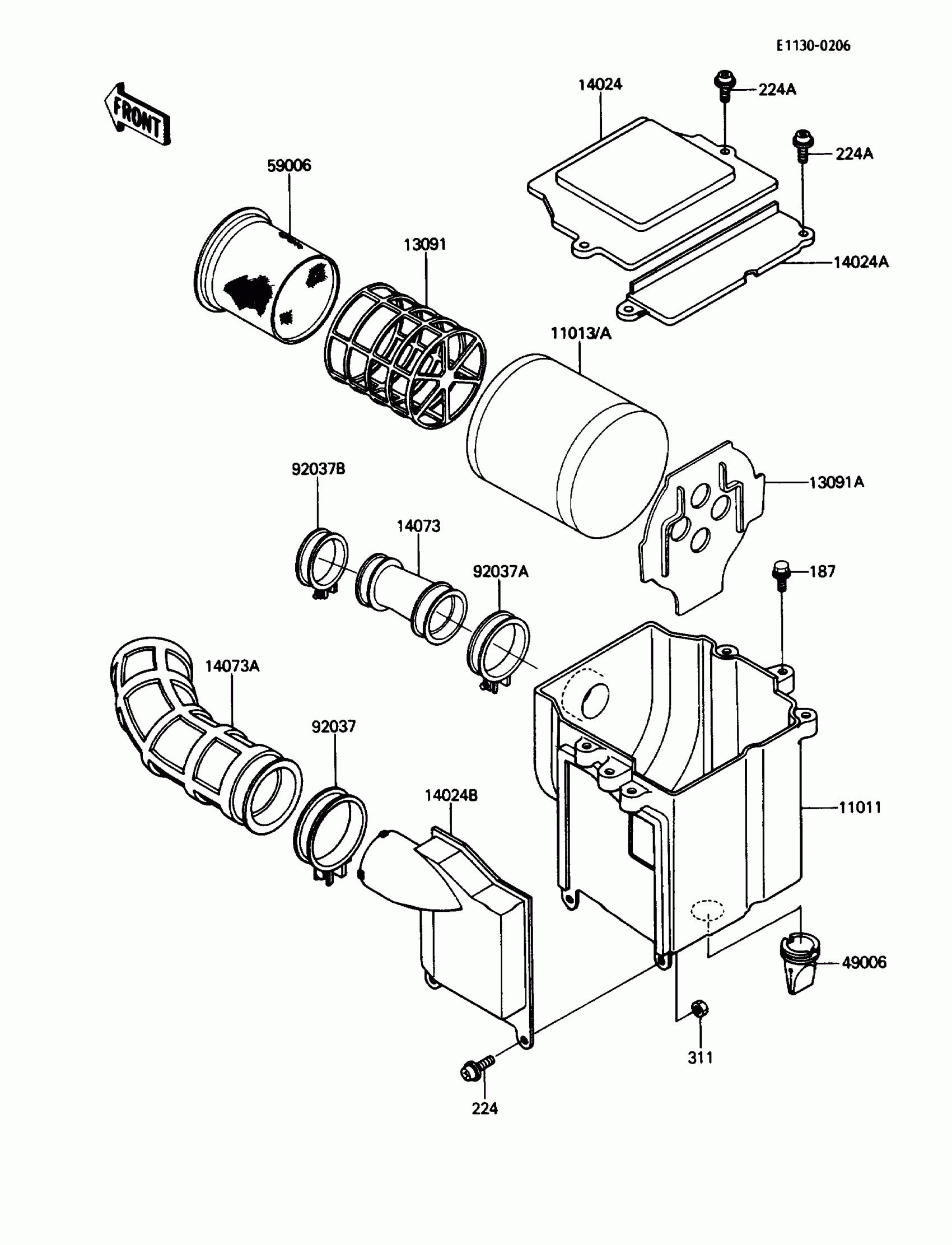

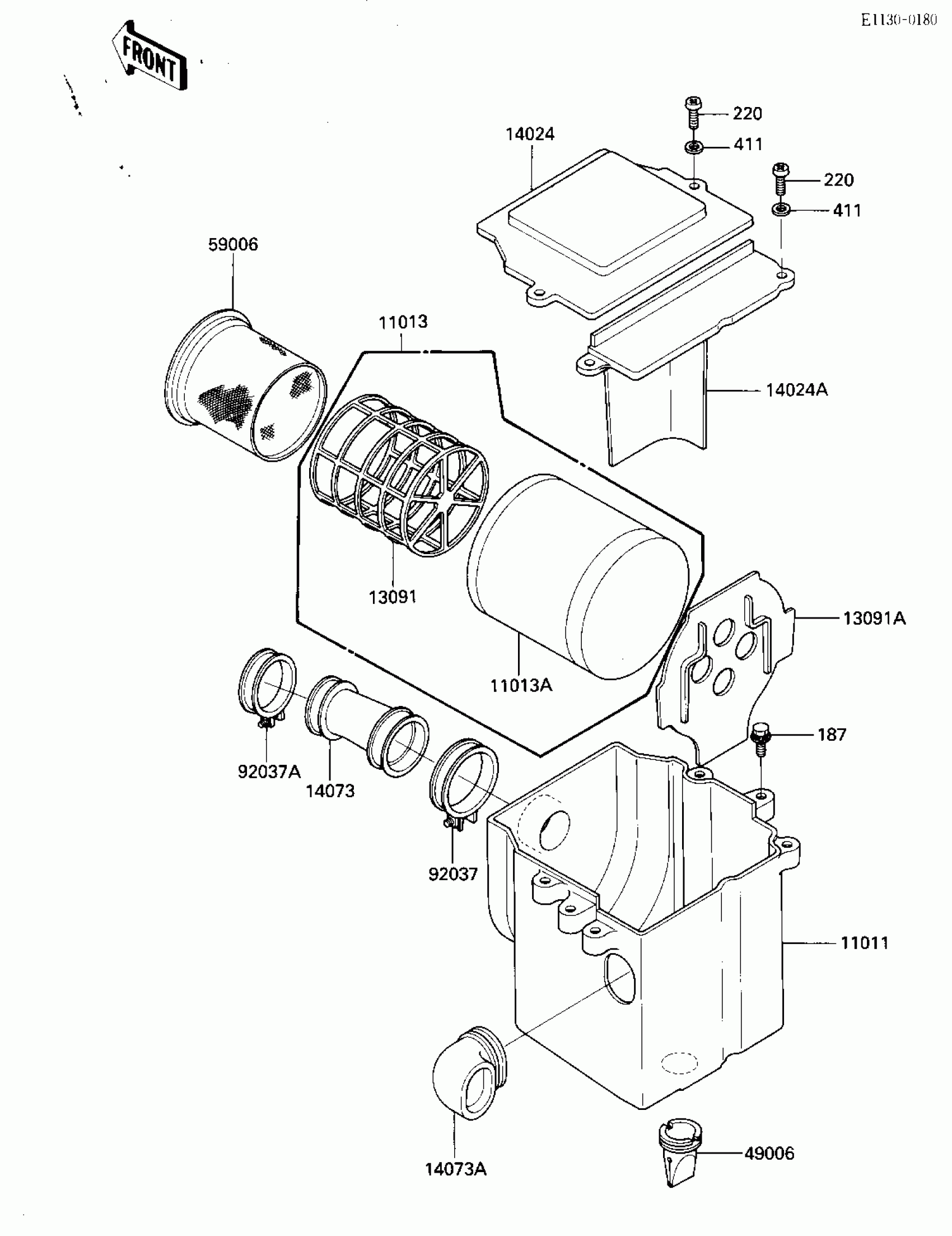

Kawasaki Bayou 185 Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1211

Unavailable

11013

ELEMENT-AIR FILTER

11013-1109

Unavailable

13091

HOLDER,ELEMENT

13091-1121

Unavailable

13091A

HOLDER,ELEMENT

13091-1125

Unavailable

14024

COVER,AIR FILTER,FR

14024-1147

Unavailable

14024A

COVER,AIR FILTER,RR

14024-1148

Unavailable

14024B

COVER,AIR FILTER,SIDE

14024-1149

Unavailable

14073

DUCT,CARBURETOR

14073-1206

Unavailable

14073A

DUCT,INTAKE

14073-1240

$54.11

49006

BOOT,AIR FILTER

49006-1065

Unavailable

59006

ARRESTER-FLAME

59006-1051

Unavailable

92037

CLAMP

92037-1523

$12.35

92037A

CLAMP

92037-177

Unavailable

92037B

CLAMP

92037-200

$9.37

187

BOLT-UPSET-WSP

187B0616

$1.17

224

SCREW-PAN-WP-CROS

224B0614

$5.51

224A

SCREW-PAN-WP-CROS

224B0618

Unavailable

311

NUT 6MM

311B0600

$0.93
