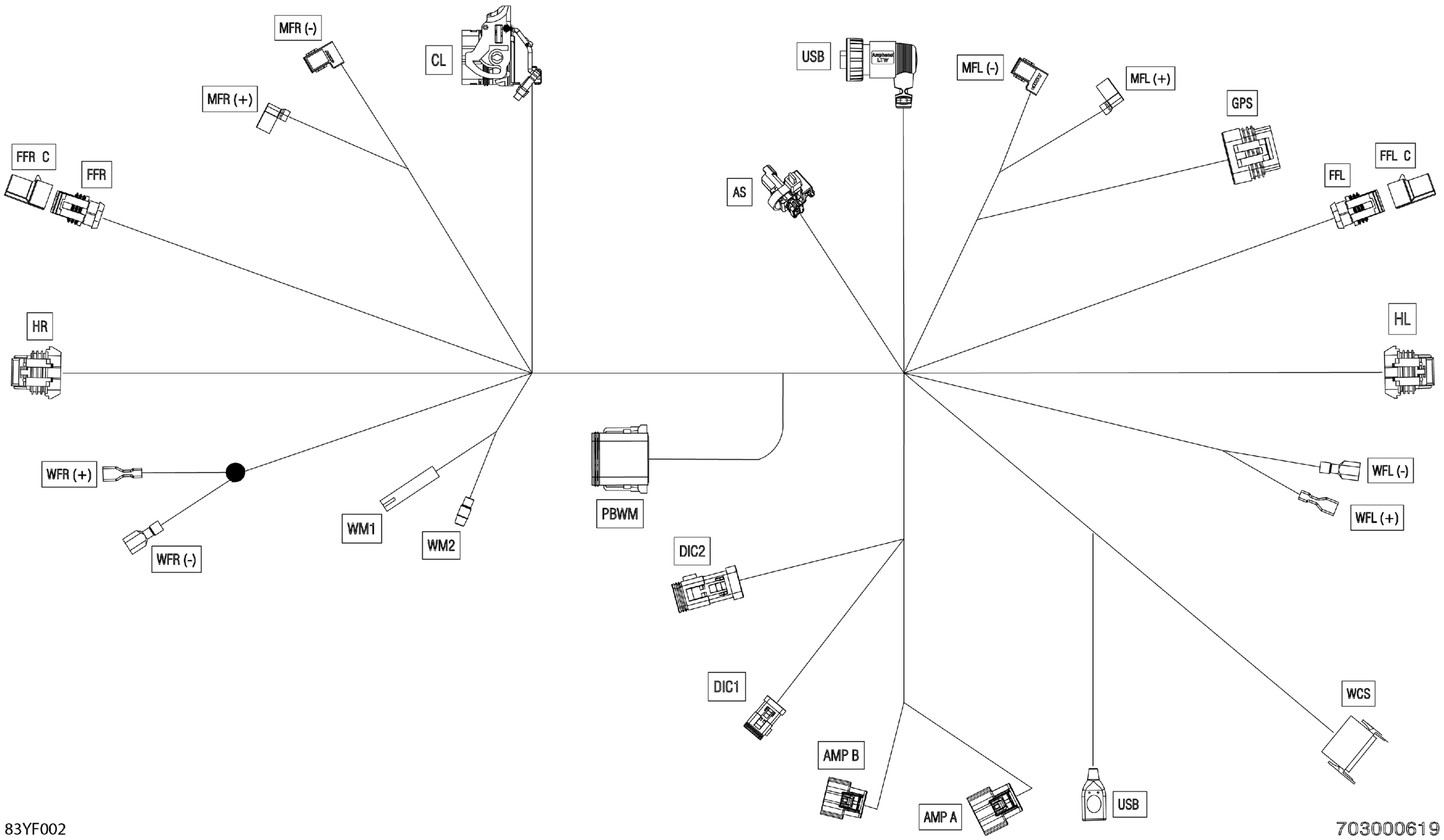

Can-Am Australia - RT - LIMITED - Platine Edition - B9TG - Vegas White, 2026 Electric - Console Wiring Harness - 710010817 Diagram

#

Description
Price

50

Console Wiring Harness

710010817

$310.00

2a1

USB Wiring Harness

710009553

$77.00

AMP A

Housing, 12 Circuits

278002994

$13.45

AMP A

Sealing Cap

278002860

$1.42

AMP A

Female Terminal

515178018

$0.78

AMP A

Female Terminal 22 AWG

515178349

$1.82

AMP A

Female Terminal

515178014

$1.92

AMP B

Connector Molex Mx150 12pos

710005905

$10.00

AMP B

Female Terminal

515178018

$0.78

AMP B

Female Terminal 22 AWG

515178349

$1.82

AS

Housing Jae, 2 Pins

515179555

$13.83

AS

Plug

710008941

$21.00

AS

Terminal Jae

515179328

$4.60

CL

Cover

710007650

$35.35

CL

Cover

710007650

$35.35

CL

Female Molex Connector 53 Cavities

710008036

$46.89

CL

Plug

710007617

$15.35

CL

Plug

710001592

$2.12

CL

Plug

710001593

$2.12

CL

Plug

710001592

$2.12

CL

Plug

710001593

$2.12

CL

Plug

710007617

$15.35

CL

Seal Joint

710007620

$6.52

CL

Seal Joint

710007619

$6.52

CL

Femal Terminal

710007623

$2.23

CL

Femal Terminal

710007658

$5.78

CL

Female Terminal

710001589

$1.79

CL

Terminal

710001728

$5.91

CL

Female Terminal

710001727

$2.55

CL

Female Terminal

710001589

$1.79

CL

Terminal

710001728

$5.91

CL

Female Terminal

710001727

$2.55

CL

Femal Terminal

710007623

$2.23

CL

Femal Terminal

710007658

$5.78

DIC1

Ctc Housing

278004304

$27.66

DIC1

Plug

710009532

$6.92

DIC1

Terminal

710009528

$7.00

DIC1

Terminal

710009529

$6.75

DIC2

Ctc Housing

710010703

$27.00

DIC2

Plug

710009532

$6.92

DIC2

Terminal

710009528

$7.00

DIC2

Terminal

710009529

$6.75

FFL

Female Housing, 2 Circuits

409209500

$13.48

FFL

Wire Seal

515176621

$7.00

FFL

Female Terminal

710001340

$5.11

FFL C

Connector Plug

710004906

$13.00

FFR

Female Housing, 2 Circuits

409209500

$13.48

FFR

Wire Seal

515176621

$7.00

FFR

Female Terminal

710001340

$5.11

FFR C

Connector Plug

710004906

$13.00

GPS

Female Housing

710005295

$32.28

GPS

Plug

515175812

$1.70

GPS

Female Terminal

710001119

$4.32

HL

Housing

710000645

$14.75

HL

Lock

710000642

$3.85

HL

Seal

278001482

$2.55

HL

Female Terminal

710001134

$6.03

HR

Housing

710000645

$14.75

HR

Lock

710000642

$3.85

HR

Seal

278001482

$2.55

HR

Female Terminal

710001134

$6.03

MFL (-)

Terminal

710004835

$3.00

MFL (-)

Female Terminal

710002399

$1.94

MFL (+)

Female Terminal

710004858

$3.85

MFR (-)

Terminal

710004835

$3.00

MFR (-)

Female Terminal

710002399

$1.94

MFR (+)

Female Terminal

710004858

$3.85

PBWM

Female Terminal Housing, 12 Circuits

278002377

$46.89

PBWM

Female Lock, 12 Circuits

409015700

$3.73

PBWM

Female Terminal

278000632

$1.69

PBWM

Female Terminal

278001665

$3.73

USB

USB Wiring Harness

710009553

$77.00

WCS

4 Circuits Female Housing

515178175

$11.14

WCS

Female Terminal

515179481

$5.46

WFL (-)

Female Terminal

409010700

$5.08

WFL (+)

Female Terminal

710000082

$6.03

WFR (-)

Female Terminal

409010700

$5.08

WFR (+)

Female Terminal

710000082

$6.03

WM1

Insulated Sheath

278001007

$3.22

WM1

Female Terminal

710000421

$5.46

WM2

Insulated Sheath

278001008

$3.20

WM2

Female Terminal

278002261

$6.20
