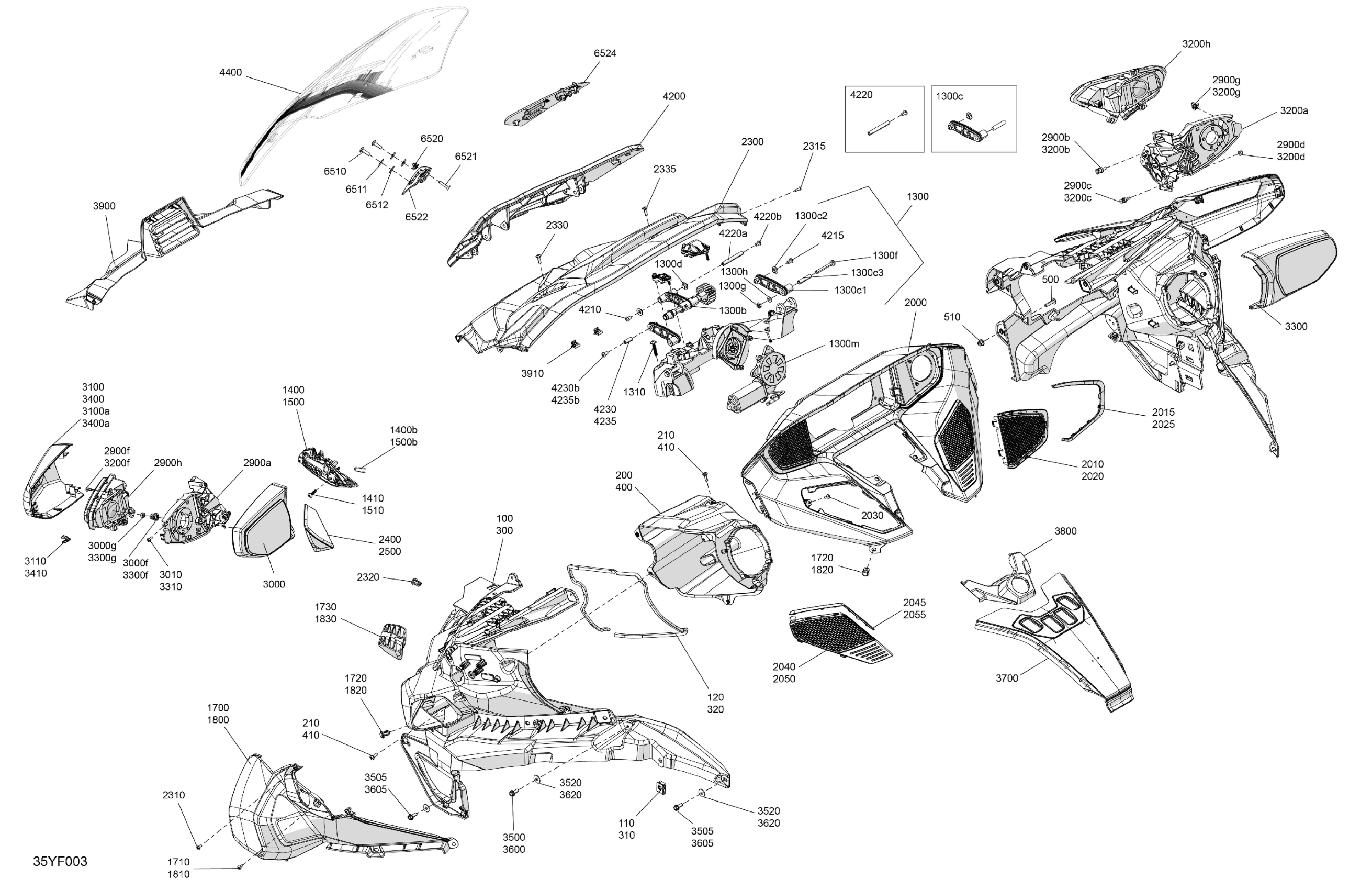

Can-Am Australia - RT - LIMITED - Platine Edition - B9TG - Vegas White, 2026 Body - Console Diagram

LH Console Support

708400712

$63.99

Panel Nut M6 X 1.0

250100208

$1.46

Seal 1000Mm Long

219704373

$8.26

LH Front Speaker Support

708400377

$16.95

Torx Screw K50 X 16

250000720

$1.69

RH Console Support

219401277

Unavailable

Panel Nut M6 X 1.0

250100208

$1.46

Seal 1000Mm Long

219704373

$8.26

RH Front Speaker Support

708400378

$16.95

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Windshield Support Ass'y | Included 1300 to 1300p

705016962

$729.99

Windshield Lifting Arm Repair Kit

705013108

$90.99

Rear Arm Ass'y

219800432

$83.99

Rear Arm Ass'y

219800432

$83.99

Sleeve

705003267

$9.48

Inner Sleeve

705004260

Unavailable

Sleeve

705003267

$9.48

Hex. Screw M6 X 50

207065060

$2.22

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

Windshield Motor

278002579

$234.99

Screw PT K60 X 30

250000949

$2.11

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

LH Console Fairing

708400597

$46.99

Torx Truss PT K40 x 12

250001131

$2.11

Tuflok Plastic Rivet

293150230

$1.47

LH Fairing Support

708400900

$5.59

RH Console Fairing

708400598

$46.99

Torx Truss PT K40 x 12

250001131

$2.11

Tuflok Plastic Rivet

293150230

$1.47

RH Fairing Support

708400901

$5.99

Dashboard

708400609

$114.99

Deep Black, LH Upper Speaker Grille

708400704

$4.66

Sterling Silver, LH Upper Speaker Trim

708400708

$48.99

Deep Black, RH Upper Speaker Grille

708400705

$4.66

Sterling Silver, RH Upper Speaker Trim

708400709

$48.99

Torx Truss PT K40 x 12

250001131

$2.11

Deep Black, LH Lower Speaker Grille

708400355

$12.69

Sterling Silver, LH Lower Speaker Trim

708400808

$48.99

Deep Black, RH Lower Speaker Grille

708400356

$4.66

Sterling Silver, RH Lower Speaker Trim

708400809

$48.99

Deep Black, Console Fairing

708400899

$169.99

Torx Truss PT K40 x 12

250001131

$2.11

Torx Truss PT K40 x 12

250001131

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Torx Screw K50 X 16

250000720

$1.69

LH Front Rear View Mirror Trim

708400601

$4.79

RH Front Rear View Mirror Trim

708400602

$4.79

LH Mirror Support

708400224

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Hex. Flange Elastic Nut M5

233251414

$1.04

Torx Truss PT K40 x 12

250001131

$2.11

Edge Clip

517302785

$0.88

LH Front Flasher Unit

710006197

$164.49

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss PT K40 x 12

250001131

$2.11

Deep Black, LH Front Rear-View Mirror Trim | Includes 3100 to 3100a

708401080

$114.99

Bare, LH Front Rear View Mirror Trim

708400462

$26.99

Clip

517306478

$1.09

RH Mirror Support

708400225

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Hex. Flange Elastic Nut M5

233251414

$1.04

Torx Truss PT K40 x 12

250001131

$2.11

Edge Clip

517302785

$0.88

RH Front Flasher Unit

710006198

$164.49

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss PT K40 x 12

250001131

$2.11

Deep Black, RH Front Rear-View Mirror Trim | Includes 3400 to 3400a

708401081

$114.99

Bare, RH Front Rear View Mirror Trim

708400464

$26.99

Clip

517306478

$1.09

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Screw M6 X 16

210261650

$1.67

Flat washer M6

250200164

$1.01

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Screw M6 X 16

210261650

$1.67

Flat washer M6

250200164

$1.01

Central Fairing

705020363

$30.99

Front Switch Housing

708400555

$6.88

Black, Headlights Central Fairing

708201070

$28.99

Edge Clip

517302785

$0.88

Carbon Black, Windshield Support

708400223

$214.99

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$47.99

AXE DE PIVOT *PIVOT PIN

705009565

$47.99

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$47.99

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$47.99

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

Smoked Windshield, 75% Light Trans.

708400409

$399.99

Torx Truss Screw M6 X 20

250000350

$5.29

Flat washer M6

250200164

$1.01

Rubber Washer M6

250200189

$2.53

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 25

250000455

$3.06

LH Soft Shim Protector

293830206

$11.49

RH Soft Shim Protector

293830207

$11.49
