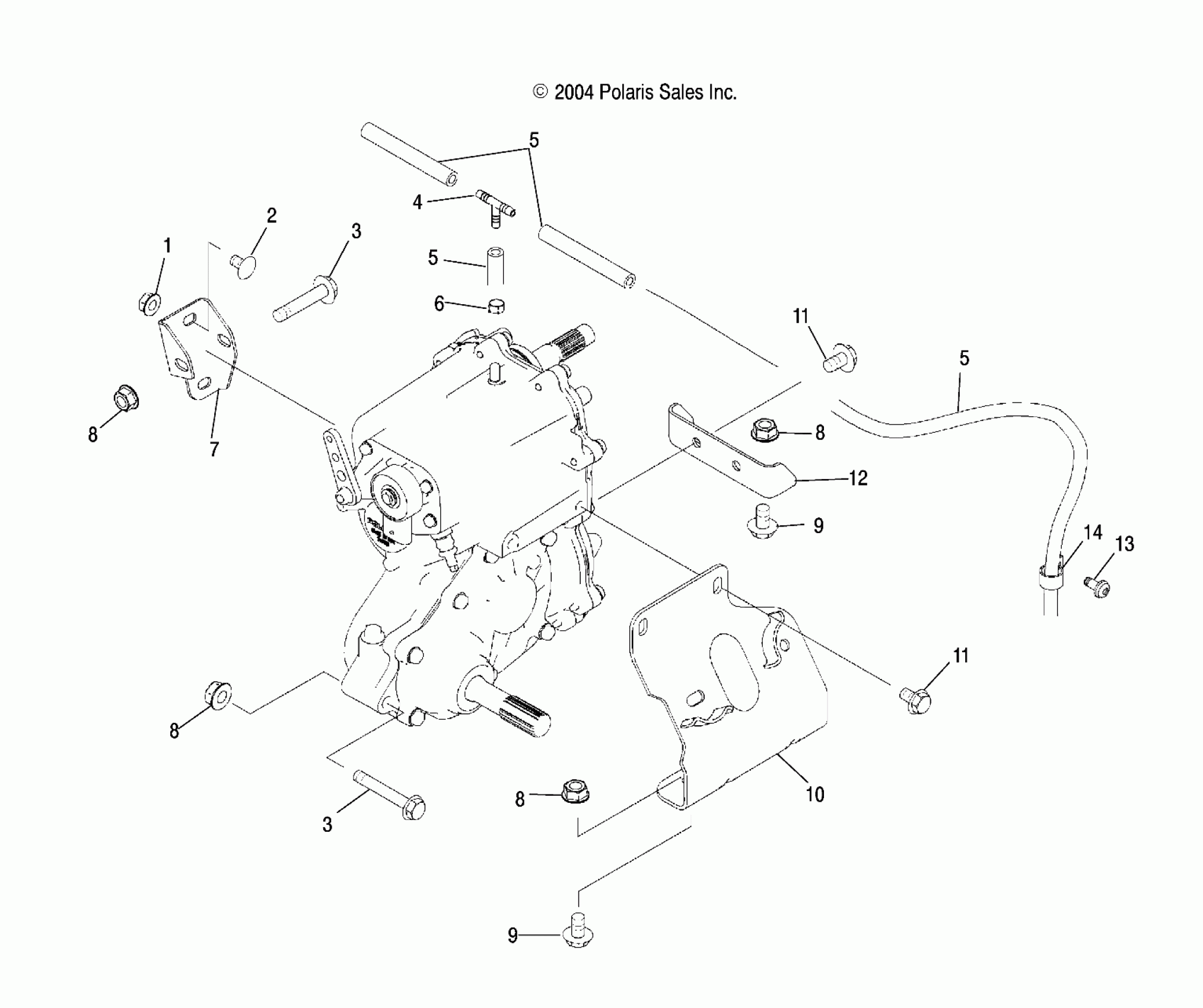

Polaris ATP 500 4X4 - A05JD50AA TRANSMISSION MOUNTING - A05JD50AA (4995189518D06) Diagram

#

Description
Price

-

ASM., GEARCASE [SEE GEARCASE PG., FOR DETAILS]

-------

Unavailable

1

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

Bolt, Carriage

7512377

$4.79

3

Bolt, Flange

7518415

$4.79

3

Bolt, Flange

7518415

$4.79

4

FITTING, TEE

7052075

$9.59

5

Line, Fuel

8450003-1525

Unavailable

5

Line, Fuel

8450003-1525

Unavailable

5

Line, Fuel

8450003-1525

Unavailable

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

Mount, Rear Transmission

5247343

Unavailable

8

NUT

7547108

$4.79

8

NUT

7547108

$4.79

8

NUT

7547108

$4.79

8

NUT

7547108

$4.79

9

Screw

7517289

$4.79

9

Screw

7517289

$4.79

10

Mount, Rear Engine, Black

1013134-067

$114.39

11

SCREW

7517632

$5.59

11

SCREW

7517632

$5.59

12

Mount, Transmission, Black

5242820-067

$7.43

13

SCREW

7512024

$4.79

14

CLAMP, HOSE

7080693

$5.59
