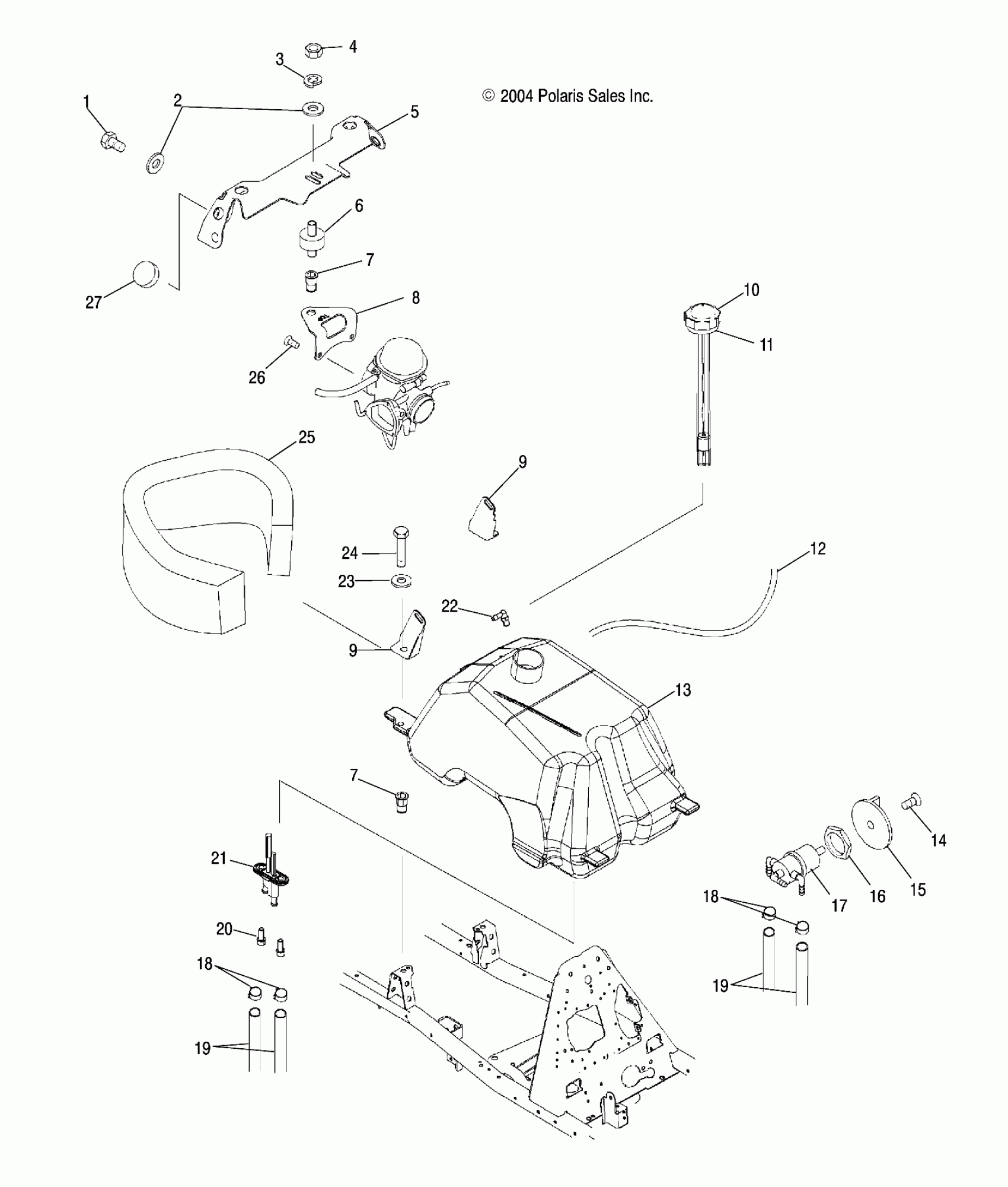

Polaris ATP 500 4X4 - A05JD50AA FUEL TANK and CARBURETOR MOUNTING - A05JD50AA/AB/AC (4995189518B03) Diagram

#

Description
Price

1

Bolt

7512276

$4.79

2

Washer, Flat

7558301

$1.49

3

Washer, Spring, Lock

7552801

$1.59

4

Nut, Hex

7542105

$3.99

5

Bracket, Carburetor Support, Black

5245672-067

$13.19

6

MOUNT, CARBURETOR

3110050

$12.99

7

Nutsert, Hex

7547069

$3.99

7

Nutsert, Hex

7547069

$3.99

8

Mount, Carburetor

5246945

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

10

Gauge, Fuel

2873628

$15.99

11

GASKET

5812123

$5.65

12

LINE, FUEL

8360009-600

Unavailable

13

Asm., Fuel Tank [Incl. 21,22]

2520410

Unavailable

14

Screw

7517505

$1.59

15

Knob, Fuel Valve

5432559

$10.39

16

Nut, Fuel Valve

5432733

Unavailable

17

Valve, 3-Way

7052161

$39.99

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

Line, Fuel

8450103

Unavailable

19

Line, Fuel

8450103

Unavailable

20

Screw

7515136

$1.49

21

Fitting, Fuel Outlet, Dual

7052365

Unavailable

22

Vent, Tank

5431053

$19.99

23

Washer, Flat

7558301

$1.49

24

Bolt

7512277

$4.79

25

Seal, Foam

5811942

Unavailable

26

Asm., Screw and Washer

3084205

$3.99

27

Bumper, Rubber

5410414

$3.19
