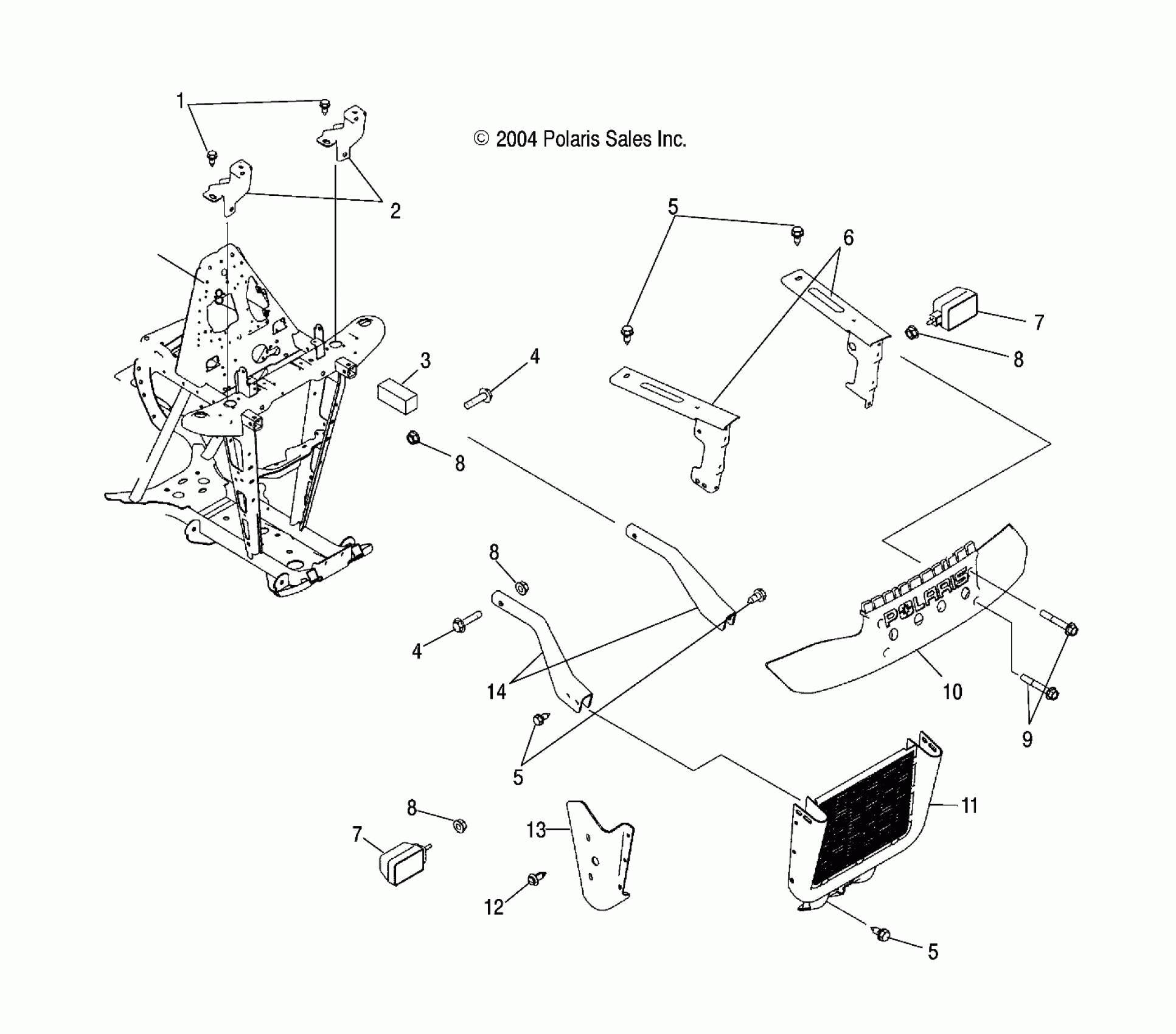

Polaris ATP 500 4X4 - A05JD50AA FRONT RACK and BUMPER MOUNTING - A05JD50AA/AB/AC (4995189518A11) Diagram

#

Description
Price

1

Bolt

7512232

$1.49

2

Support, Front Rack, Black, LH

1013744-067

$119.99

2

Support, Front Rack, Black, RH

1013746-067

$94.99

3

PLUG, FRAME

5810467

Unavailable

4

BOLT, FLANGE

7518341

$4.79

4

BOLT, FLANGE

7518341

$4.79

5

SCREW

7515399

$1.49

5

SCREW

7515399

$1.49

5

SCREW

7515399

$1.49

6

Mount, Rack, Black, LH

1014099-067

$119.99

6

Mount, Rack, Black, RH

1014101-067

Unavailable

7

Bulb, 27W

4030059

Unavailable

7

Asm., Headlight, Side Mount, LH

2431014

Unavailable

7

Asm., Headlight, Side Mount, RH

2431015

$92.99

7

Bulb, 27W

4030059

Unavailable

7

Asm., Headlight, Side Mount, LH

2431014

Unavailable

7

Asm., Headlight, Side Mount, RH

2431015

$92.99

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

9

Bolt

7517977

Unavailable

10

Bumper, Black

5432155-070

$143.99

11

Guard, Brush, Black

1013772-067

Unavailable

12

Rivet

7661855

$1.49

13

Shield, Radiator Side, LH

5433923

$31.99

13

Shield, Radiator Side, RH

5433924

$31.99

14

Extension, Frame, Black, LH

5244729-067

$164.99

14

Extension, Frame, Black, RH

5244730-067

$144.99
