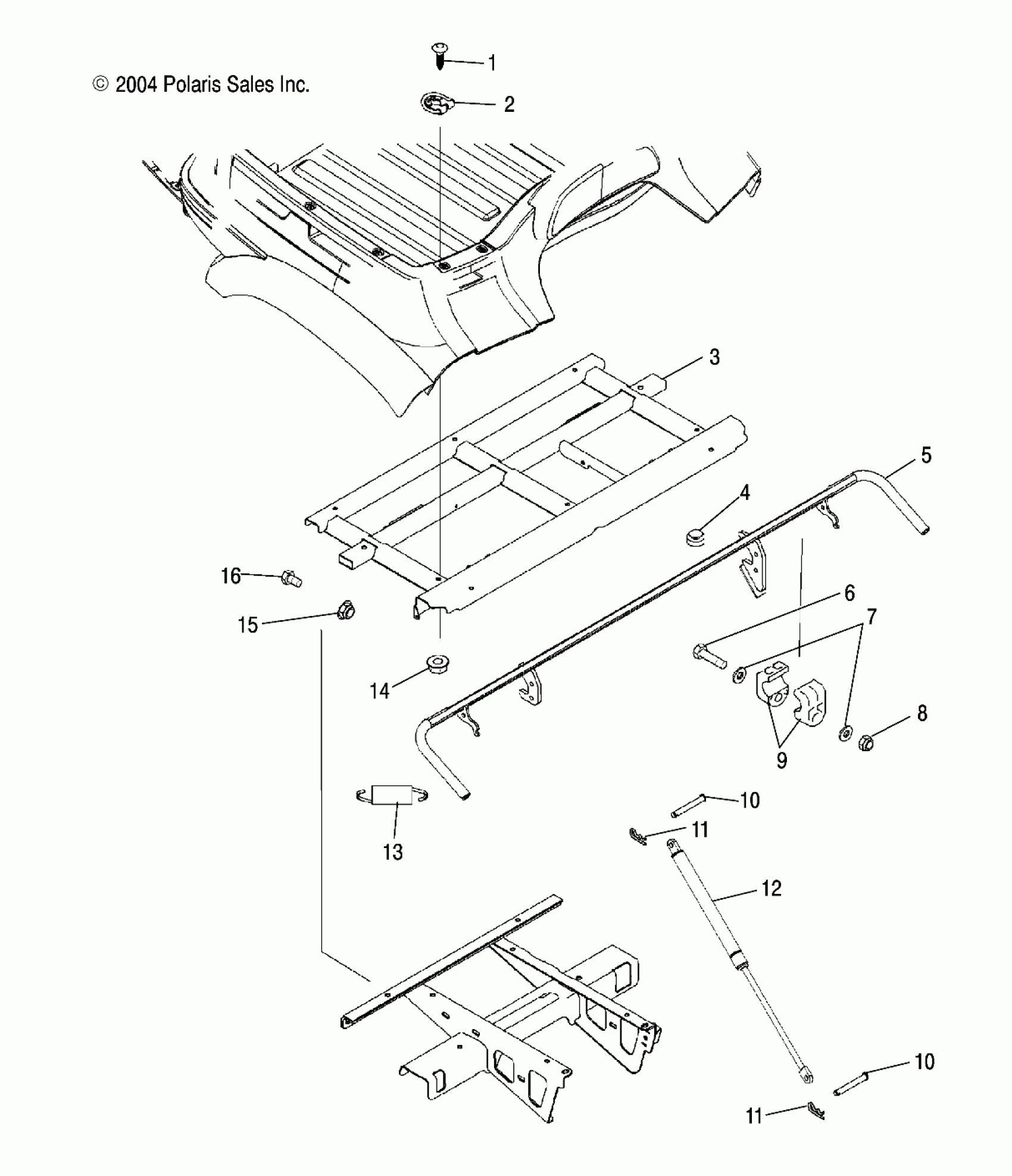

Polaris ATP 500 4X4 - A05JD50AA BOX FRAME - A05JD50AA/AB/AC (4995189518A04) Diagram

#

Description
Price

1

SCREW

7518235

$1.59

2

Ring, Tie Down

7081101

$7.99

3

Frame, Box, Black

1014655-067

Unavailable

4

BUMPER-RUBBER

5412067

$3.99

5

Latch, Box, Rear, Black

1014146-067

$124.99

6

BOLT

7515319

$4.79

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

BUSHING-BOX,LATCH

5434226

$3.99

10

PIN, CLEVIS

7661163

$3.99

10

PIN, CLEVIS

7661163

$3.99

11

PIN, HITCH

7661644

$2.39

11

PIN, HITCH

7661644

$2.39

12

Shock, Dump Box

7042268

$60.70

13

SPRING-EXHAUST

7041687

$5.65

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

15

Nut, Flange, Lock

7542449

$3.99

16

Screw

7512492

$1.49
