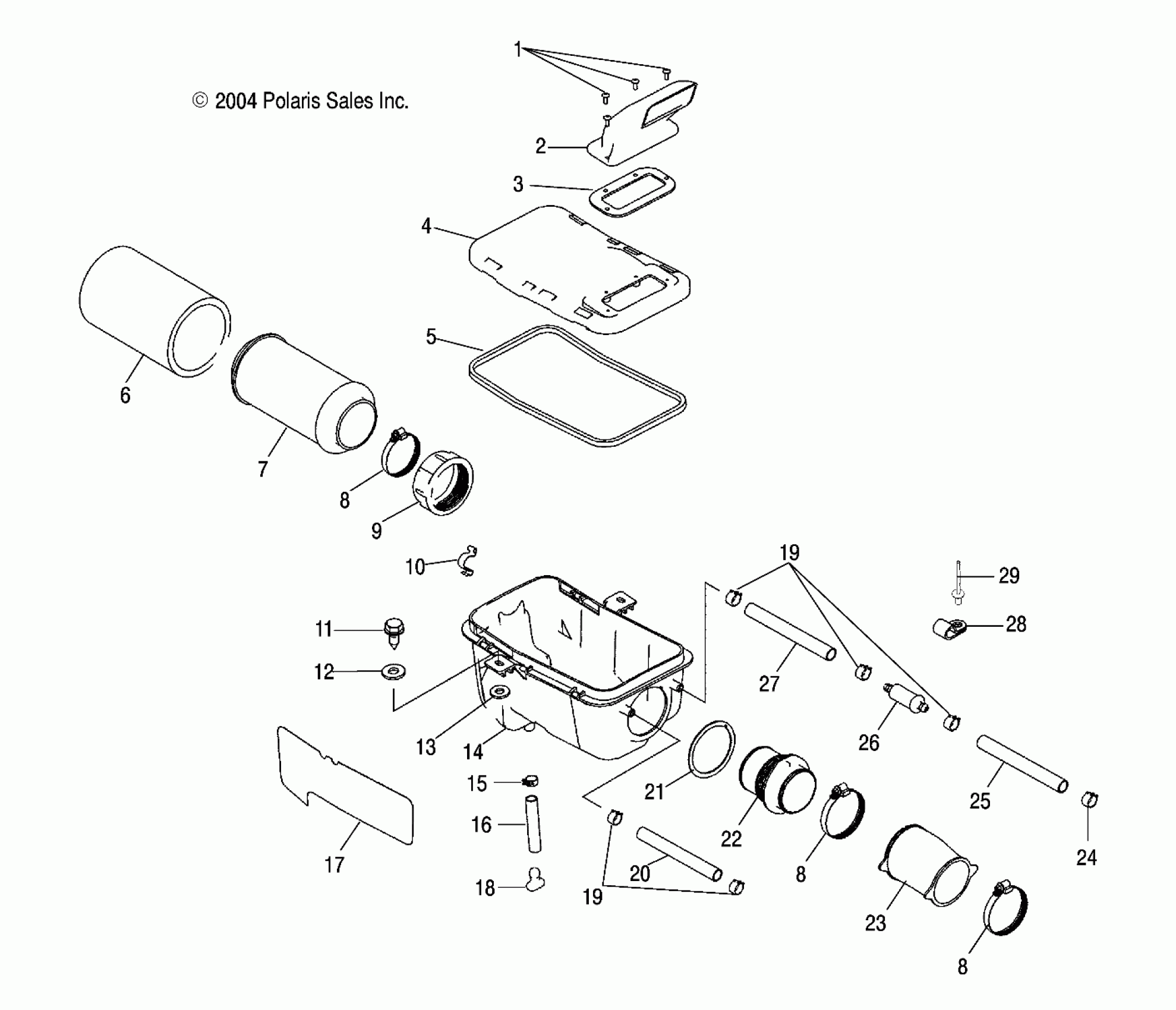

Polaris ATP 500 4X4 - A05JD50AA AIR BOX - A05JD50AA/AB/AC (4995189518B06) Diagram

#

Description
Price

1

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

2

Duct, Inlet, Airbox Cover

5432859

Unavailable

3

Gasket, Intake

5411422

$6.63

4

Cover, Air Box

5432868

$51.99

5

Seal, Cover

5811482

Unavailable

6

Filter, Precleaner Sleeve

5811633

$11.99

7

Filter, Air

7080595

Unavailable

8

CLAMP, BAND NARROW

7080413

$3.19

8

CLAMP, BAND NARROW

7080413

$3.19

8

CLAMP, BAND NARROW

7080413

$3.19

9

Collar, Carburetor Inlet

5432601

$12.79

10

CLIP-AIR BOX

5242044

$9.59

11

Screw

7518306

$3.99

12

Washer, Flat

7558301

$1.49

13

Spacer

7556091

$3.99

14

Box, Air Intake

5435758

Unavailable

15

Clamp, Hose

7080650

$3.99

16

Line, Fuel

8450059-150

Unavailable

17

Foil, RH

5812111

Unavailable

18

Plug, Trap

5432377

Unavailable

19

Clamp, Hose

7080699

$1.59

19

Clamp, Hose

7080699

$1.59

20

HOSE, BREATHER [SEE OIL TANK PG. B14, REF. 1]

-------

Unavailable

21

Gasket, Carburetor Inlet Duct

5830128

Unavailable

22

Duct, Carburetor, Inlet

5433180

$32.37

23

Boot, Carburetor

5412304

Unavailable

24

Clamp, Hose, Spring

7080694

$6.53

25

Hose, Breather

5411921

$174.99

26

Filter, Breather, In Line

2530029

$6.39

27

Line, Breather

8450073-600

Unavailable

28

CLAMP, CABLE

7080499

$5.59

29

Rivet

7621432

$1.49
