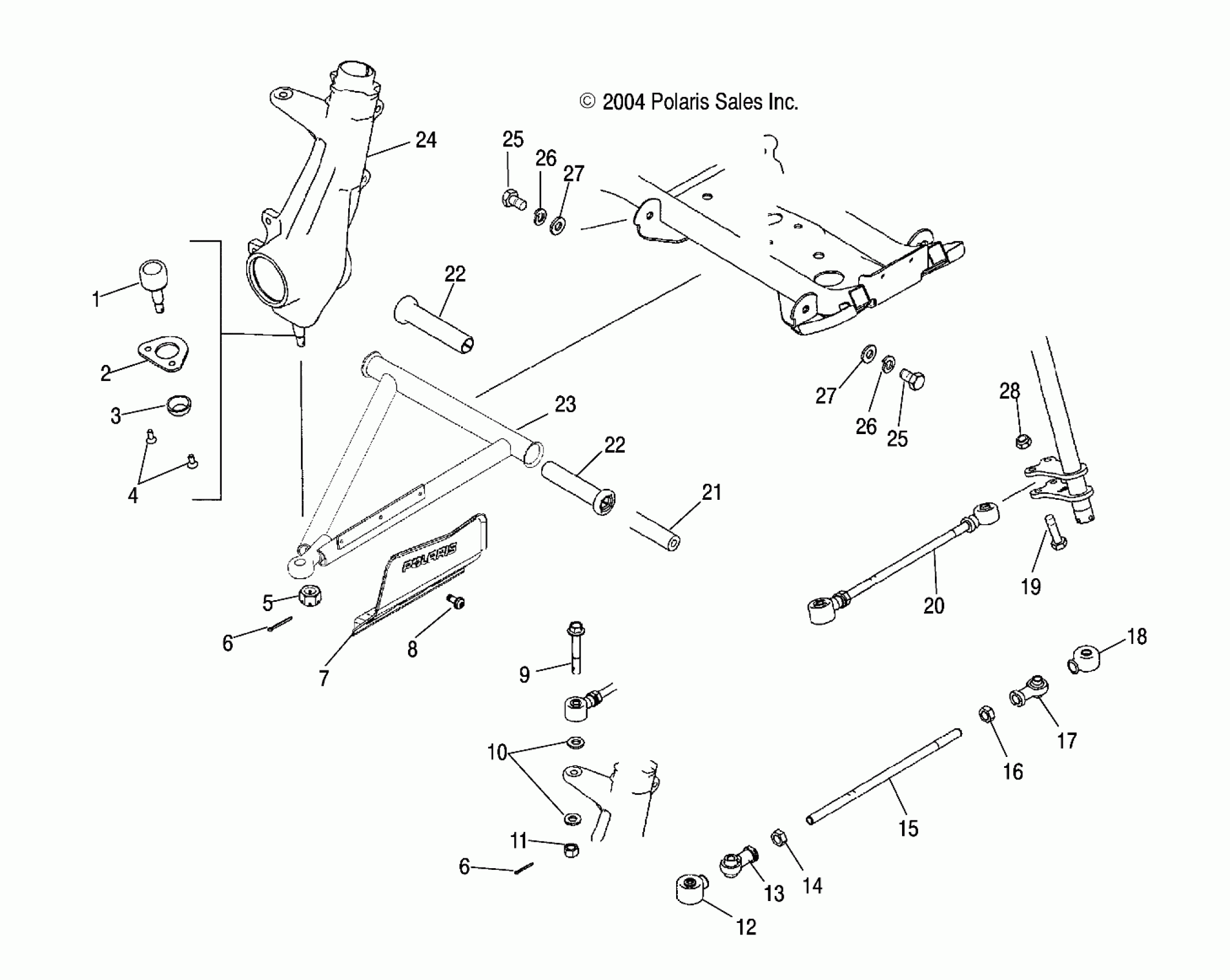

Polaris ATP 500 4X4 - A05JD50AA A-ARM/STRUT MOUNTING - A05JD50AA/AB/AC (4995189518B10) Diagram

#

Description
Price

1

Joint, Ball

7080927

$76.89

2

BRACKET-BALL JOINT

5211121

$31.99

3

Boot, Rubber

5410548

Unavailable

4

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

5

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

6

Pin, Cotter

7661203

$1.49

6

Pin, Cotter

7661203

$1.49

7

Shield, CV Joint, Black, LH

5435028-070

$23.99

7

Shield, CV Joint, Black, RH

5435029-070

$23.99

8

Screw

7512084

$1.49

9

Bolt

7517909

$5.59

10

Washer

7556099

$1.59

11

Nut, Lock

7547177

$2.39

12

Boot, Seal, Rod End

5411920

Unavailable

13

Rod, End, LH

7061054

Unavailable

14

Nut, Jam, LH

7547028

$2.39

15

Rod, Tie

5020926

$39.99

16

Nut, Jam

7542711

$2.39

17

Rod End, RH

7061034

$54.04

18

Boot, Seal, Rod End

5411291

Unavailable

19

Screw

7515415

$1.49

20

Asm., Tie Rod [Incl. 13-18]

1820805

Unavailable

21

Shaft, A-Arm

5133806

$30.79

22

Bushing, A-Arm, Long

5434551

$5.01

22

Bushing, A-Arm, Long

5434551

$5.01

23

Kit, A-Frame, LH [Incl. 6,21,22,25,26]

2202280

$143.99

23

Kit, A-Frame, RH [Incl. 6,21,22,25,26]

2202281

$143.99

24

SUPPORT, HUBSTRUT [SEE FRONT STRUT PG. B11, REF. 11]

-------

Unavailable

25

Screw

7512492

$1.49

25

Screw

7512492

$1.49

26

Washer, Spring Lock

7552603

$1.49

26

Washer, Spring Lock

7552603

$1.49

27

WSHR-.813X.406X.105-Y

7555832

$2.39

27

WSHR-.813X.406X.105-Y

7555832

$2.39

28

Nut, Nylok

7542439

$1.49
