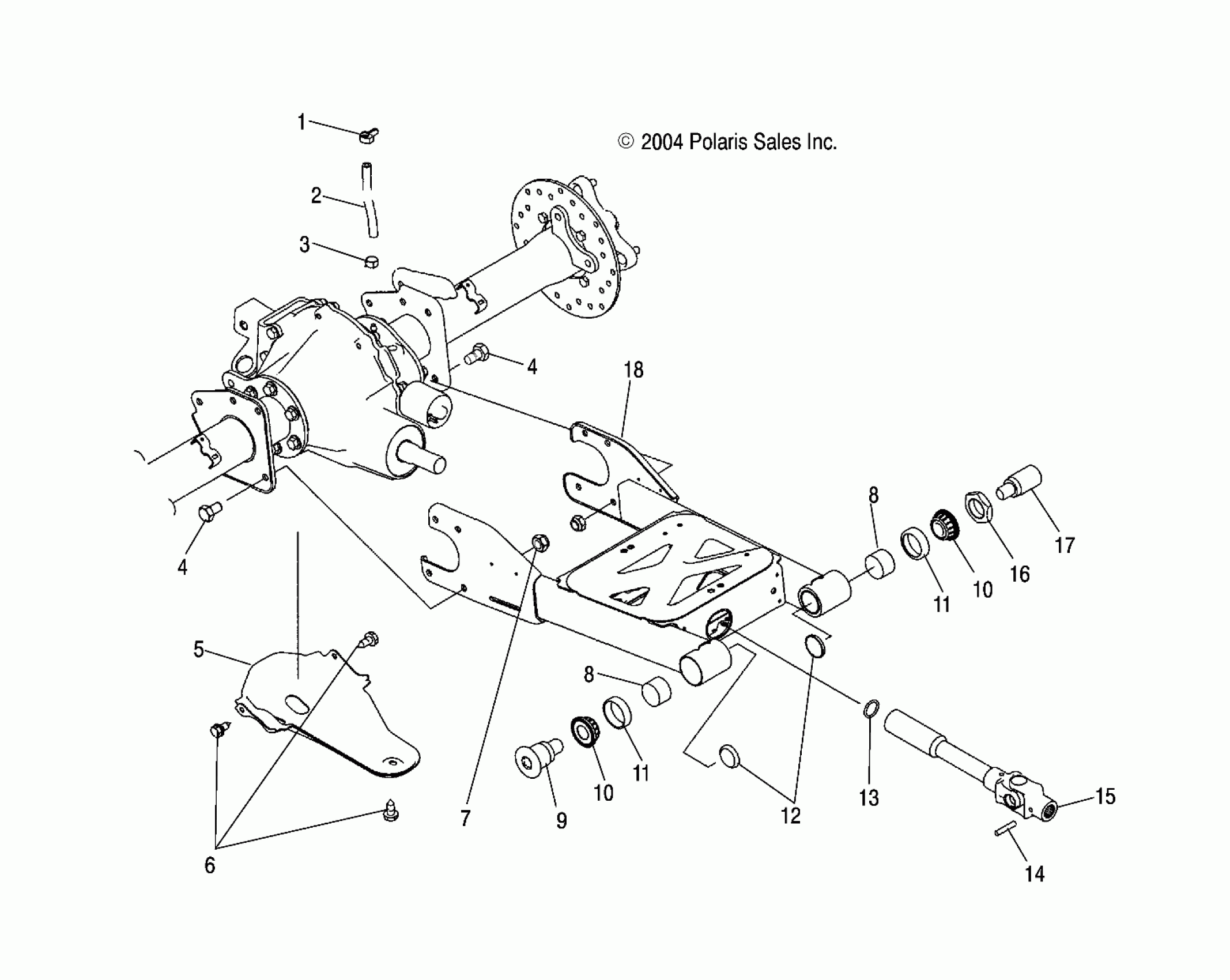

Polaris ATP 330 4X4 QUAD - A05JD32EA SWING ARM/REAR AXLE MOUNTING - A05JD32EA (4997869786D09) Diagram

#

Description
Price

1

Clip

7670102

$2.38

2

Line, Fuel

8450003

$89.99

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

4

Bolt

7512457

$3.97

4

Bolt

7512457

$3.97

5

Plate, Skid, Rear Housing, Black

5246228-067

Unavailable

6

Screw

7512399

$5.56

7

Nut, Nylok

7542439

$1.19

8

Bearing, Tapered Roller Cup

3514398

Unavailable

8

Bearing, Tapered Roller Cup

3514398

Unavailable

9

Pivot, Threaded, Swingarm, RH

5133389

Unavailable

10

Bearing, Tapered Roller Cone

3514399

$28.49

10

Bearing, Tapered Roller Cone

3514399

$28.49

11

Foam, Swingarm Pivot

5812447

Unavailable

11

Foam, Swingarm Pivot

5812447

Unavailable

12

Plug, Swingarm Pivot

5246225

$2.46

13

O-Ring

5412202

$4.03

14

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.97

15

Asm., Propshaft, Rear

1380195

$309.99

16

Nut, Jam

5133387

Unavailable

17

Pivot, Threaded, LH

5133388

Unavailable

18

Asm., Swing Arm [Incl. 8,10-12]

1541781

$551.39
