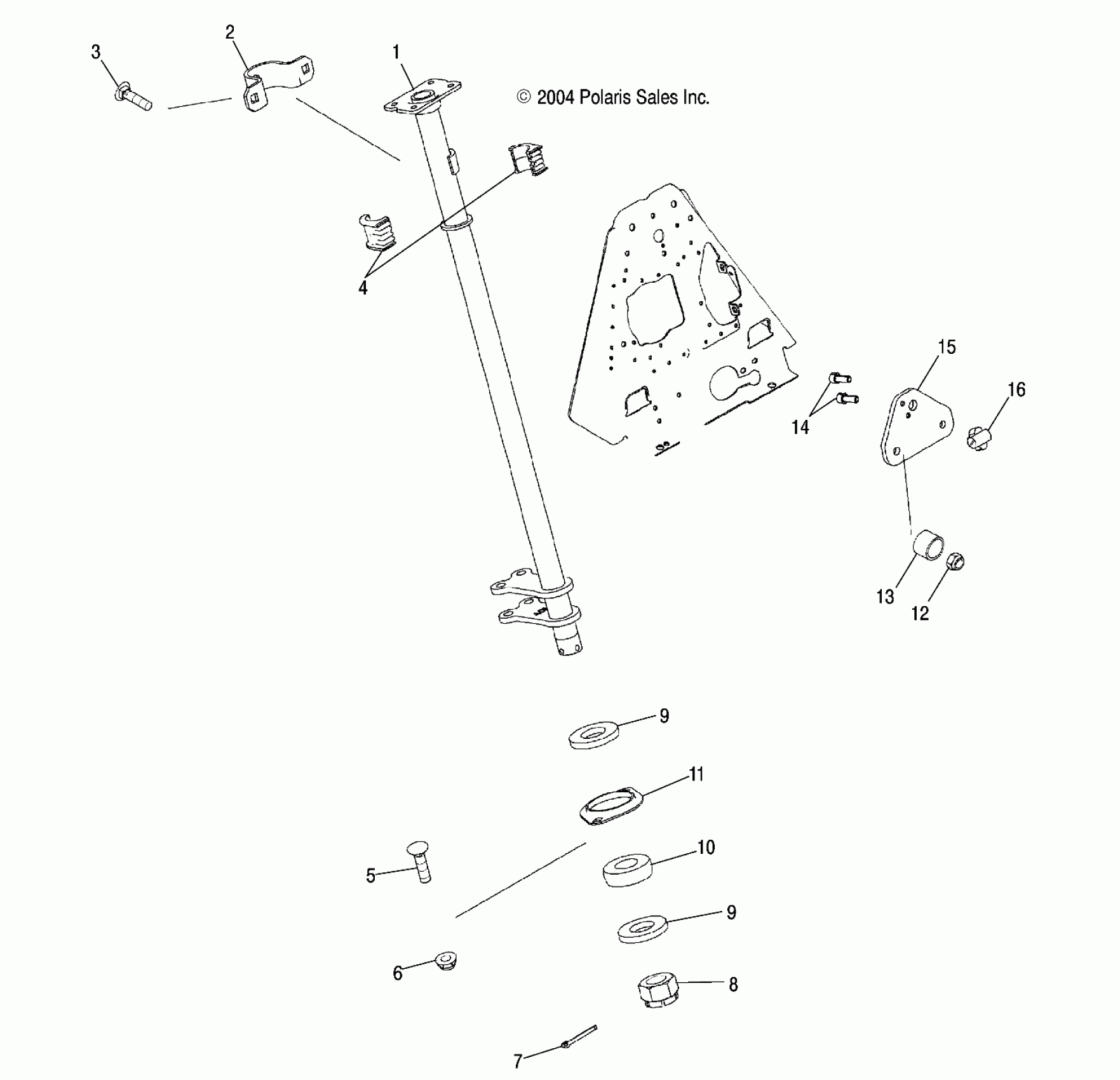

Polaris ATP 330 4X4 QUAD - A05JD32EA STEERING POST - A05JD32EA (4997869786C02) Diagram

#

Description
Price

1

Post, Steering, w/Lock, Black

1014892-067

$148.79

2

Bracket, Upper

5134869

$17.43

3

Bolt, Carriage

7515383

Unavailable

4

Bushing, Upper

5433866

Unavailable

5

BOLT

7517428

$2.39

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

Pin, Cotter

7661633

Unavailable

8

Nut, Slotted Hex

7547158

Unavailable

9

Bushing

7556162

$3.99

9

Bushing

7556162

$3.99

10

Bearing

3514352

Unavailable

11

Flangette

5222393

Unavailable

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

Guard, Nut

5134868

$3.09

14

SCREW

7518457

$2.39

15

Plate, Steering Lock, Black

5248556-067

$22.79

16

Lock, Steering

7081224

Unavailable
