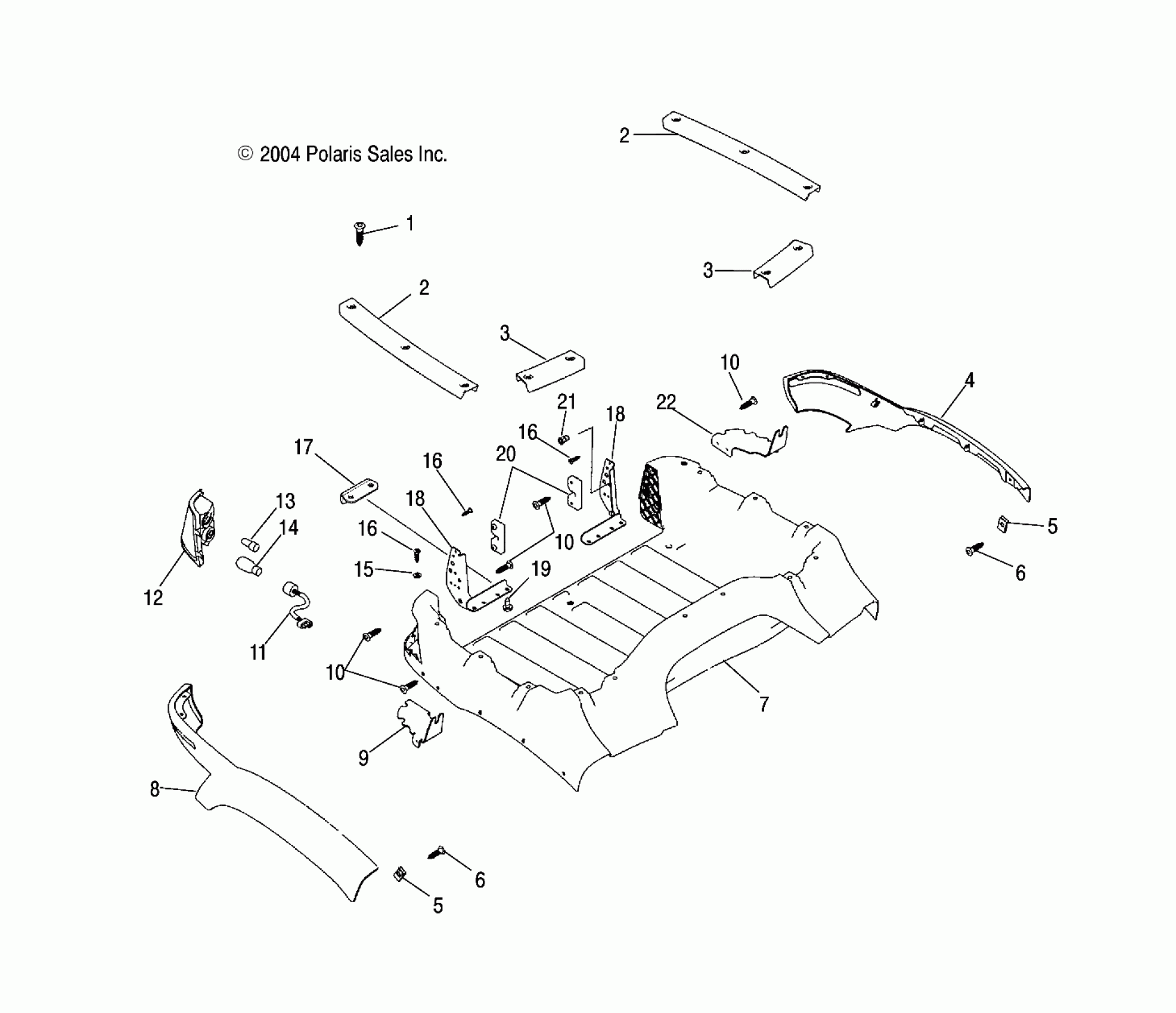

Polaris ATP 330 4X4 QUAD - A05JD32EA REAR BOX - A05JD32EA (4997869786A06) Diagram

#

Description
Price

1

Screw

7518216

$3.17

2

Tiedown, Side, Black

5434803-070

$11.32

2

Tiedown, Side, Black

5434803-070

$11.32

3

Tiedown, Front, Black

5434804-070

$16.35

3

Tiedown, Front, Black

5434804-070

$16.35

4

Fender, Rear Box, Black, LH

5434801-070

Unavailable

5

NUT, SPEED

7670057

$1.19

5

NUT, SPEED

7670057

$1.19

6

Bolt

7512232

$1.19

6

Bolt

7512232

$1.19

7

Box, Base, Rear, Black

5434799-070

Unavailable

8

Fender, Rear Box, Black, RH

5434802-070

Unavailable

9

Bracket, Rear Corner, Black, RH

5246932-067

Unavailable

10

Screw

7515111

$4.94

10

Screw

7515111

$4.94

10

Screw

7515111

$4.94

11

Taillight, Harness

2461151

$29.67

12

Asm., Taillight, LH [Incl. 13]

2410486

$126.57

12

Asm., Taillight, RH [Incl. 13]

2410487

Unavailable

13

Bulb, Taillight

4030015

$4.03

14

Bulb, Dash

4030050

$4.84

15

Washer, FLat

7556288

Unavailable

16

SCREW

7518238

$3.97

16

SCREW

7518238

$3.97

16

SCREW

7518238

$3.97

17

Tiedown, Box, Rear, Black

5247965-067

Unavailable

18

Support, Tailgate, Black, RH

1014250-067

$64.75

18

Support, Tailgate, Black, LH

1014249-067

$64.75

18

Support, Tailgate, Black, RH

1014250-067

$64.75

18

Support, Tailgate, Black, LH

1014249-067

$64.75

19

Screw

7512098

$1.59

20

Latch, Slam, Tailgate

7081099

$40.46

21

Nutsert, Hex

7547069

$3.97

22

Bracket, Rear Corner, Black, LH

5246931-067

Unavailable
