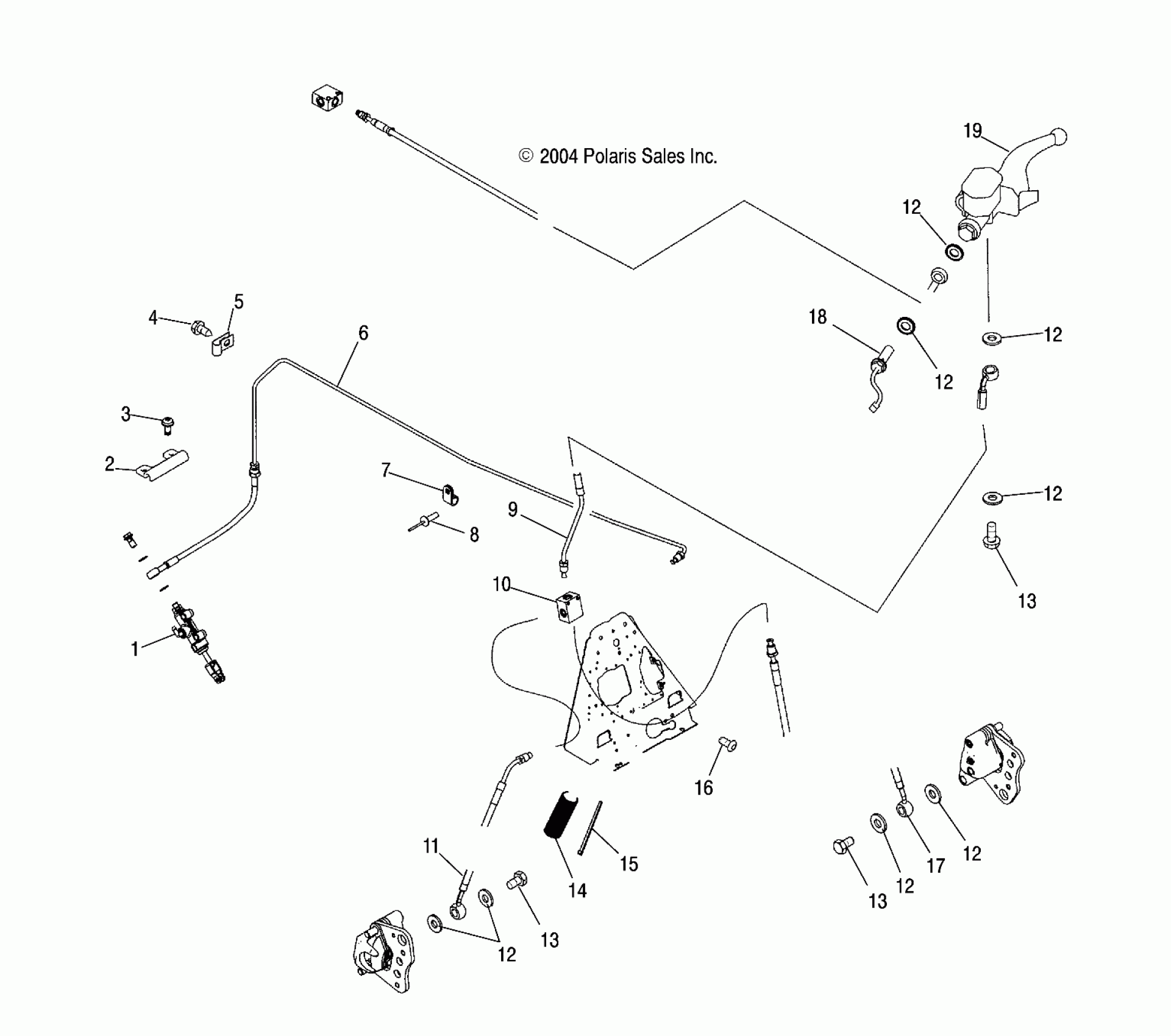

Polaris ATP 330 4X4 QUAD - A05JD32EA LH - MASTER CYLINDER/FRONT BRAKE LINES - A05JD32EA (4997869786C05) Diagram

#

Description
Price

1

ASM., MASTER CYLINDER, FOOT [SEE REAR BRAKE LINES PG. C4, REF. 28]

----

Unavailable

2

Clamp, Brake Line

5434041

Unavailable

3

Screw

7512084

$1.19

4

SCREW

7517386

$1.19

5

Clamp, Rubber Coated

7080573

$7.14

6

Line, Brake

1910863

Unavailable

7

Clamp, Nylon, Cable

7080539

$4.76

8

Rivet

7621462

$1.19

9

Line, Brake

1910874

Unavailable

10

FITTING, CROSS

7052372

$59.52

11

Line, Brake, Front, RH

1910873

$54.76

12

Seal

5410988

$4.84

12

Seal

5410988

$4.84

12

Seal

5410988

$4.84

12

Seal

5410988

$4.84

12

Seal

5410988

$4.84

12

Seal

5410988

$4.84

12

Seal

5410988

$4.84

13

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

13

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

13

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

14

Conduit

8360031-40

Unavailable

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

SCREW

7512024

$4.76

17

Line, Brake, Front, LH

1910872

$34.92

18

Switch, Pressure, Brake

4010758

$68.79

19

ASM., MASTER CYLINDER, DUAL, LH [SEE CONTROLS - FRONT BRAKE PG C7 FOR DETAILS]

----

Unavailable
