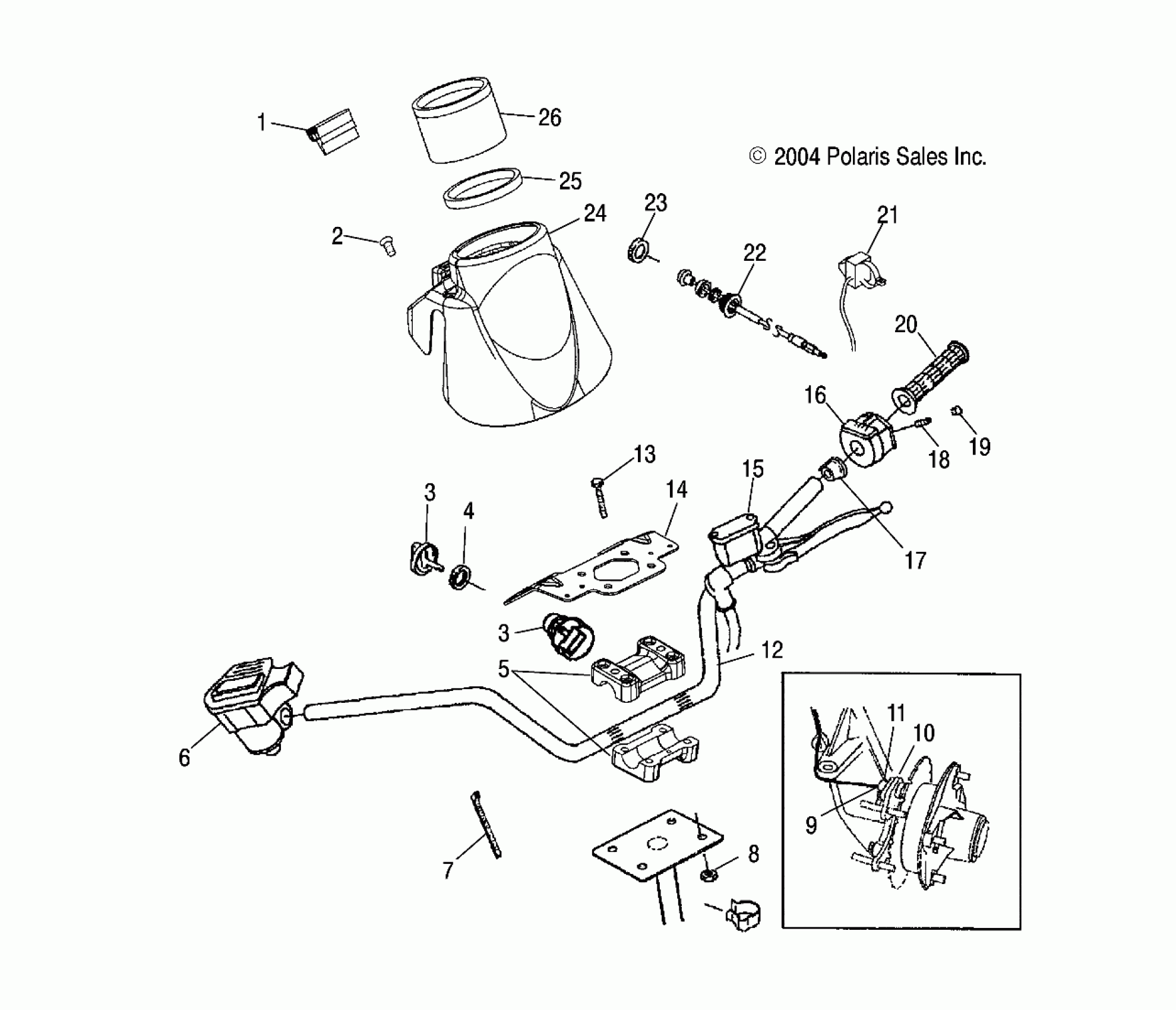

Polaris ATP 330 4X4 QUAD - A05JD32EA HANDLEBAR - A05JD32EA (4997869786C08) Diagram

#

Description
Price

1

Indicator

4011122

$17.43

2

SCREW

7518176

$4.79

3

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

3

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

3

Cover, Key

5431964

Unavailable

3

Switch, Key

4011142

Unavailable

3

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

3

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

3

Cover, Key

5431964

Unavailable

3

Switch, Key

4011142

Unavailable

4

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

5

BLOCK, HANDLEBAR

5631973

$27.99

5

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

6

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM. PG. B14, REF. 3]

-------

Unavailable

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

Nut, Nylok

7542122

$1.49

9

Screw

7517658

$5.59

10

Sensor, Hall Effect

4010298

$111.99

11

Cap, Hall Sensor

5132382

$23.99

12

Handlebar, Black

5334647-067

$49.59

13

SCREW

7515189

Unavailable

14

Bracket, Instrument Panel

5248182

$4.37

15

ASM., MASTER CYLINDER, FOOT [SEE LH - MASTER CYLINDER/FRONT BRAKE LINES PG. C5 FOR DETAILS]

-------

Unavailable

16

Switch, Handlebar

4011120

$203.99

17

Spacer, Switch, LH

5433903

Unavailable

18

SCREW, SET

7517625

$4.79

19

PLUG, HOLE

5432952

$5.59

20

Grip, Handlebar, Black

5433834-070

$24.27

21

Switch, Hazard

4011121

$75.99

22

CABLE, CHOKE

7081171

Unavailable

23

Nut, Choke

7080922

$3.19

24

Panel, Speedo, Indicator, Black

5435806-070

$58.39

25

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

26

Asm., Cluster

3280472

Unavailable
