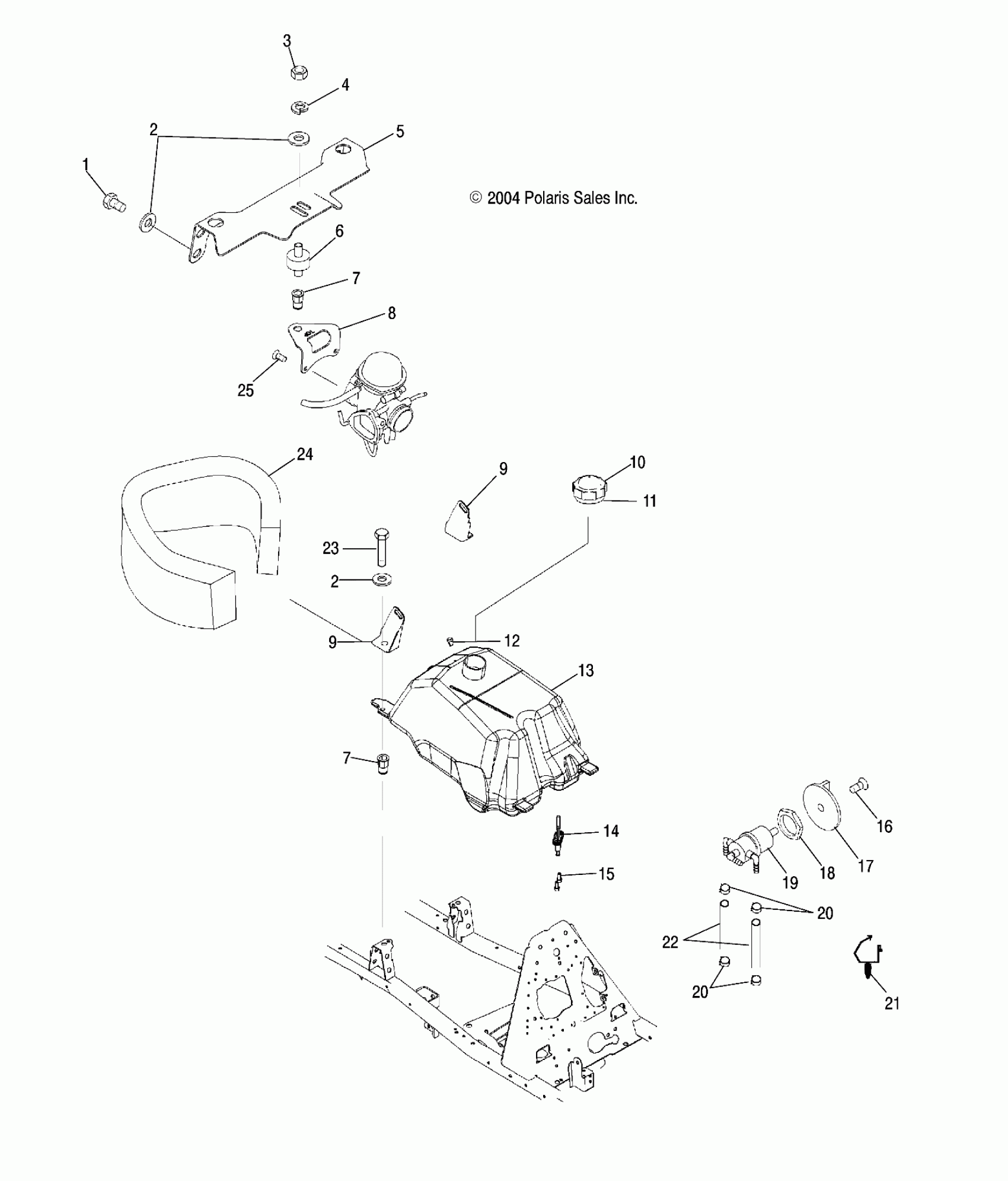

Polaris ATP 330 4X4 QUAD - A05JD32EA FUEL TANK and CARBURETOR MOUNTING - A05JD32EA (4997869786B03) Diagram

#

Description
Price

1

Bolt

7512276

$4.79

2

Washer, Flat

7558301

$1.49

2

Washer, Flat

7558301

$1.49

3

Nut, Hex

7542105

$3.99

4

WASHER, SPRING LOCK

7552801

$1.59

5

Bracket, Carburetor Support, Black

5245671-067

Unavailable

6

MOUNT, CARBURETOR

3110050

$12.99

7

Nutsert, Hex

7547069

$3.99

7

Nutsert, Hex

7547069

$3.99

8

Mount, Carburetor, Black

5245674-067

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

10

Cap, Gas, Vented

2520364

Unavailable

11

GASKET

5812123

$5.65

12

Plug

5436123

$4.75

13

Asm., Fuel Tank [Incl. 12,14]

2520450

$131.99

14

Fitting, Fuel Outlet, Dual

7052364

Unavailable

15

Screw

7515136

$1.49

16

Screw

7517505

$1.59

17

Knob, Fuel Valve

5432559

$10.39

18

Nut, Fuel Valve

5432733

Unavailable

19

Valve, 3-Way

7052161

$39.99

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

21

CLIP, ROUTING

7670109

$2.39

22

Line, Fuel

8450103

Unavailable

23

Bolt

7512277

$4.79

24

Seal, Foam

5811899

Unavailable

25

Asm., Screw and Washer

3084205

$3.99
