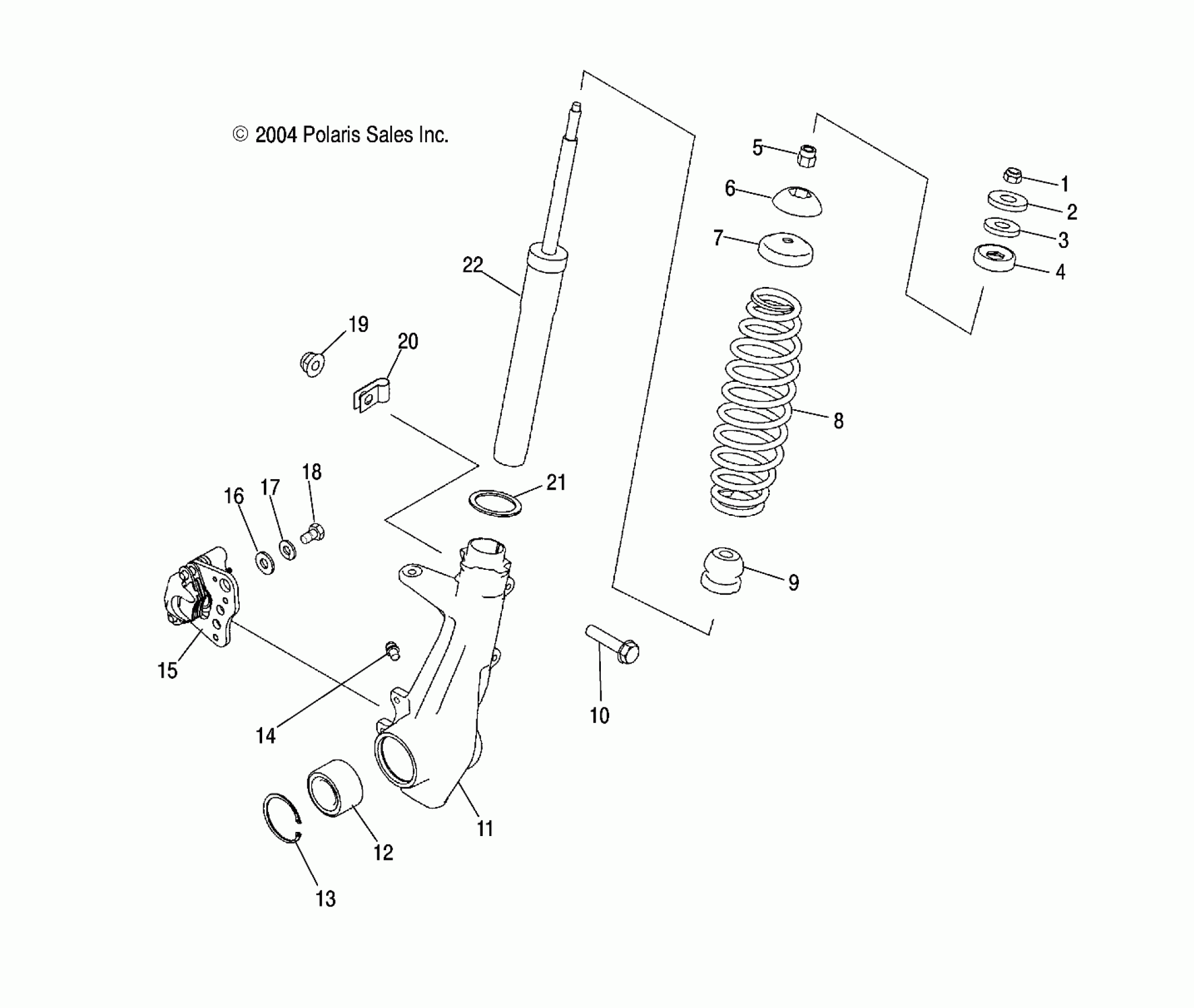

Polaris ATP 330 4X4 QUAD - A05JD32EA FRONT STRUT - A05JD32EA (4997869786B13) Diagram

#

Description
Price

1

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

2

WASHER

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

5

SPACER

5132062

$19.99

6

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

7

RETAINER-SPRING,STRUT

5243364

$19.99

8

Spring, Compression, Silver

7042312-385

$79.99

9

BUMPER-MCU,17.8MM ID

5412665

$6.39

10

Bolt, Flange

7518340

$7.19

11

Support, Hubstrut, RH

5134155

Unavailable

11

Support, Hubstrut, LH

5134154

$293.80

12

Bearing, Hubstrut

3514342

Unavailable

13

RING, RETAINING

7710507

$2.39

14

Fitting, Lubrication w/Ball

7080306

$3.19

15

ASM., BRAKE CALIPER [SEE FRONT BRAKE CALIPER PG. C9 FOR DETAILS]

-------

Unavailable

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

WASHER, SPRING LOCK

7552901

$1.49

18

SCREW, CAP

7512365

$1.49

19

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

20

CLAMP-CABLE

7080367

$2.39

21

WASHER-2.06X2.62X.105-Y

5211115

$3.99

22

Strut, Front

7041761

$151.99
