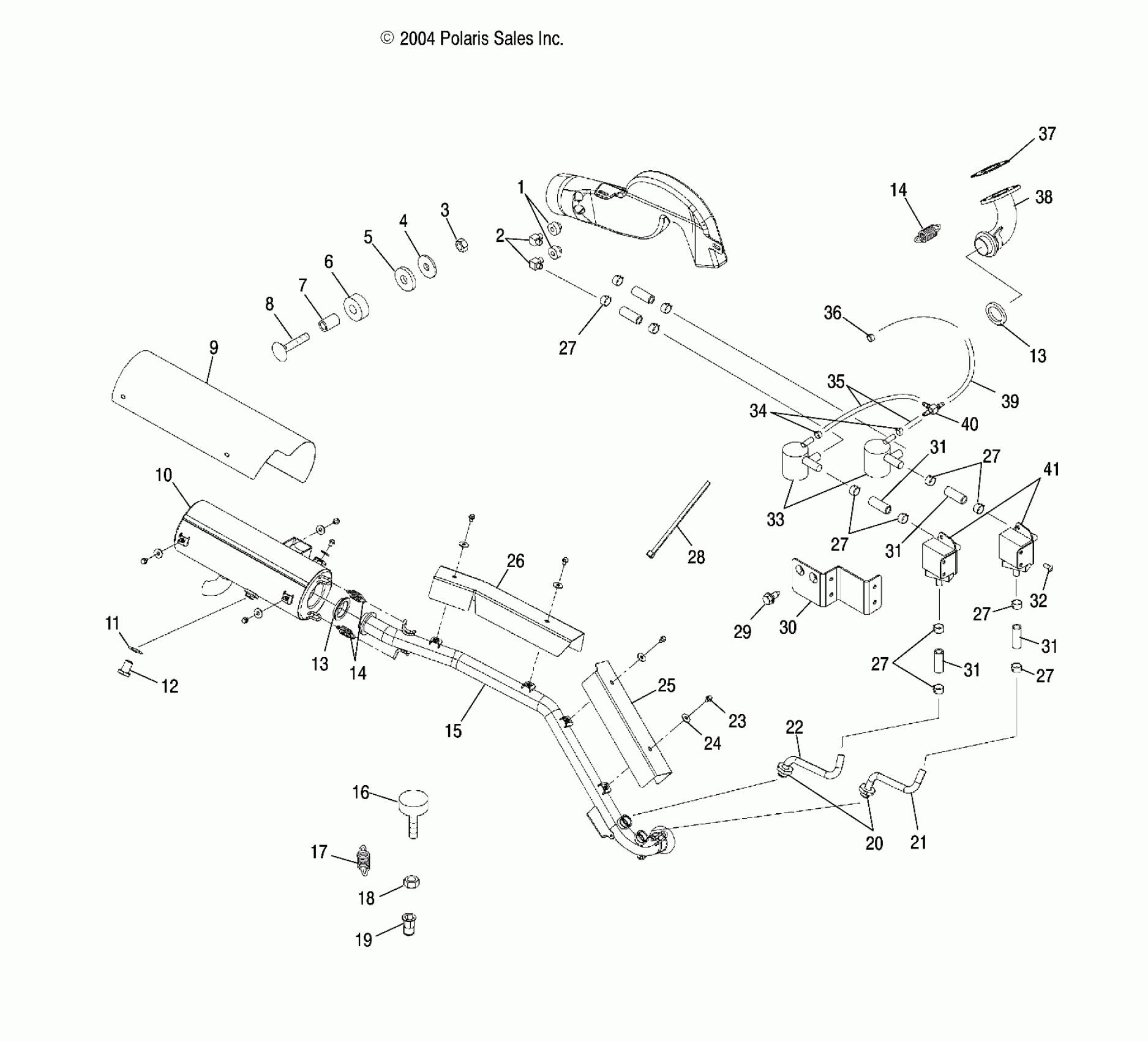

Polaris ATP 330 4X4 QUAD - A05JD32EA EXHAUST SYSTEM - A05JD32EA (4997869786B05) Diagram

#

Description
Price

1

Grommet

5412802

$7.14

2

Fitting, Elbow

7052383

$14.13

3

NUT-5/16-18 NYLOK-Y

7542324

$0.79

4

WASHER

7555716

$1.59

5

WASHER, RUBBER

5410436

$1.59

6

Dampener, Vibration

5412233

$3.97

7

BUSHING

5010192

$6.35

8

BOLT

7515316

$2.38

9

Shield, Silencer, Black

5249082-029

$69.51

10

Silencer, Black

1261432-029

Unavailable

11

WASHER, CLEAN OUT

7556230

$1.19

12

BOLT

7512666

$2.38

13

Seal, Exhaust

5243517

$16.17

13

Seal, Exhaust

5243517

$16.17

14

SPRING

7041804

$8.89

14

SPRING

7041804

$8.89

15

Headpipe

1261489

Unavailable

16

Mount, Torque Stop

3110064

Unavailable

17

SPRING-EXHAUST

7041687

$6.46

18

Nut, Hex

7542301

$1.59

19

NUTSERT

7547101

$9.52

20

Nut

7547298

$4.17

21

Asm., Tube, Air Injection, Front

1261476

$34.27

22

Asm., Tube, Air Injection, Rear

1261475

Unavailable

23

Screw

7515197

$1.19

24

Washer

7555935

$2.38

25

Shield, Exhaust, Heat, Front

5248889

Unavailable

26

Shield, Headpipe, Heat, Mid

5249098

$15.49

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

27

Clamp

7080810

$2.38

28

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

29

SCREW

7512232

$1.19

30

Bracket, Air Valve Mount, Black

5248890-067

Unavailable

31

Hose

5412724-50

$3.81

31

Hose

5412724-50

$3.81

31

Hose

5412724-50

$3.81

31

Hose

5412724-50

$3.81

32

Screw

7511909

$2.74

33

Filter, Air Valve

2520457

$7.84

34

Clamp

7081265

Unavailable

35

Line

8450061-600

Unavailable

36

Clamp

7080603

$1.59

37

Gasket, Exhaust

3086237

Unavailable

38

Manifold

1261490

$57.94

39

Line

8450037

Unavailable

40

Fitting, Tee

7052386

$6.98

41

Asm., Air Valve

1261439

$43.22
