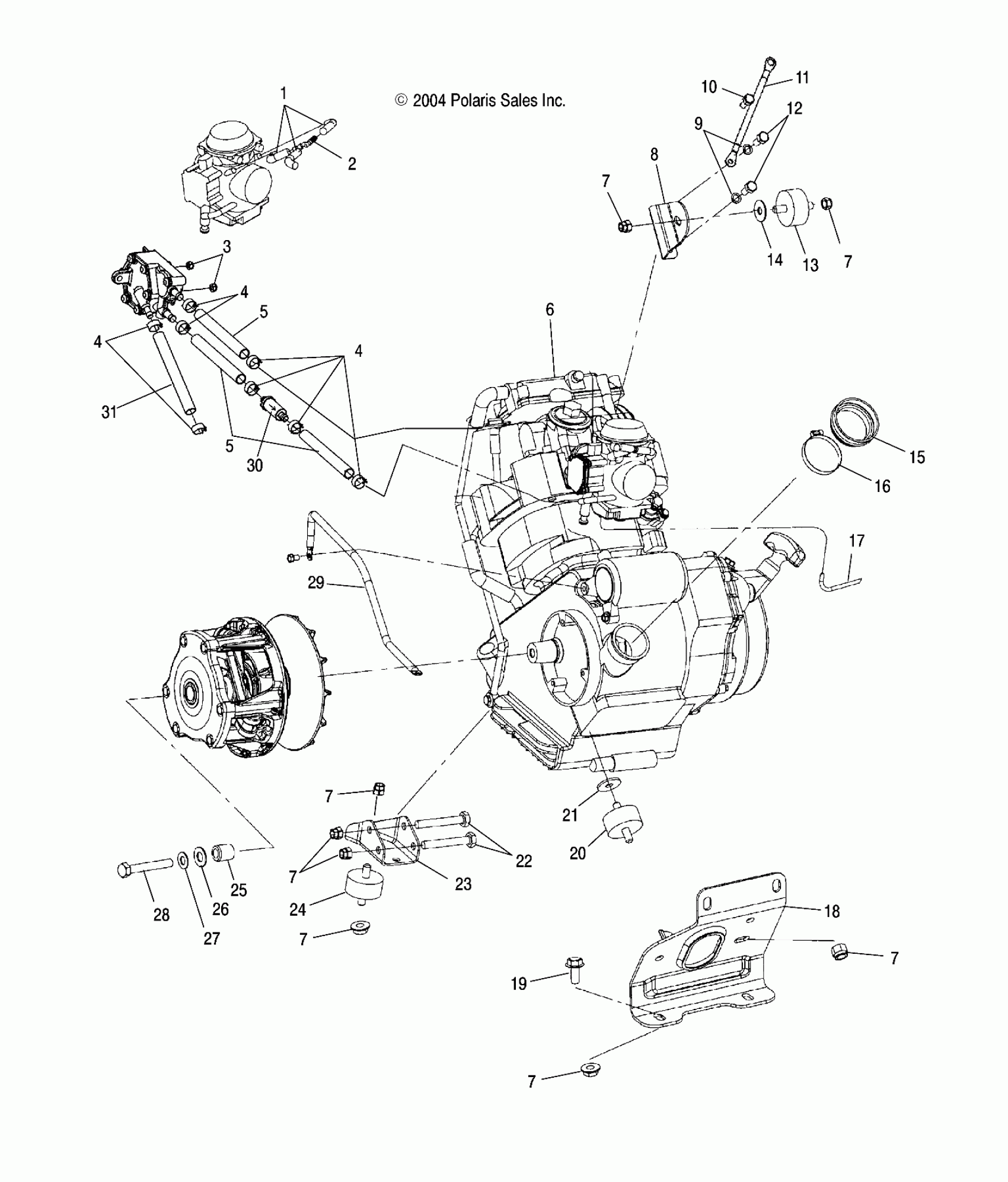

Polaris ATP 330 4X4 QUAD - A05JD32EA ENGINE MOUNTING - A05JD32EA (4997869786B01) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.52

3

NUT-M5X.8,HX NYL-Y

7546601

$1.19

4

HOSE CLAMP, RED

7080003

$1.19

4

HOSE CLAMP, RED

7080003

$1.19

4

HOSE CLAMP, RED

7080003

$1.19

5

Line, Fuel

8450103

Unavailable

5

Line, Fuel

8450103

Unavailable

6

Engine, ES320PFE110

1202990

Unavailable

7

NUT

7547108

$4.76

7

NUT

7547108

$4.76

7

NUT

7547108

$4.76

7

NUT

7547108

$4.76

7

NUT

7547108

$4.76

7

NUT

7547108

$4.76

7

NUT

7547108

$4.76

8

Bracket, Motor Mount

5247341

$5.71

9

WASHER, SPRING LOCK

7552901

$1.19

10

Bolt

7512232

$1.19

11

Cable, Ground Engine

4010132

Unavailable

12

BOLT

7512315

$4.76

13

Mount, Rubber

5412248

$49.99

14

WASHER

7555823

$3.97

15

Boot, Clutch Intake

5411721

Unavailable

16

Clamp, Narrow Band

7080511

$4.76

17

LINE, FUEL

8360009-600

Unavailable

18

Mount, Engine, Rear, Black

1013133-067

$15.56

19

Screw

7517289

$3.29

20

Mount, Rubber, Rear

3021119

Unavailable

21

WASHER, FLAT

7555815

$3.97

22

SCREW

7515417

$4.76

23

Mount, Lower Front Engine

5247342

Unavailable

24

Mount, Rubber, Engine

3021181

$44.51

25

BUSHING-.437 X.770 X.50

5430261

$7.14

26

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

27

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

28

BOLT

7512566

$33.24

29

Cable, Battery/Engine

4010095

Unavailable

30

Filter, Small

2530009

$6.46

31

Line

8450040-600

$72.84
