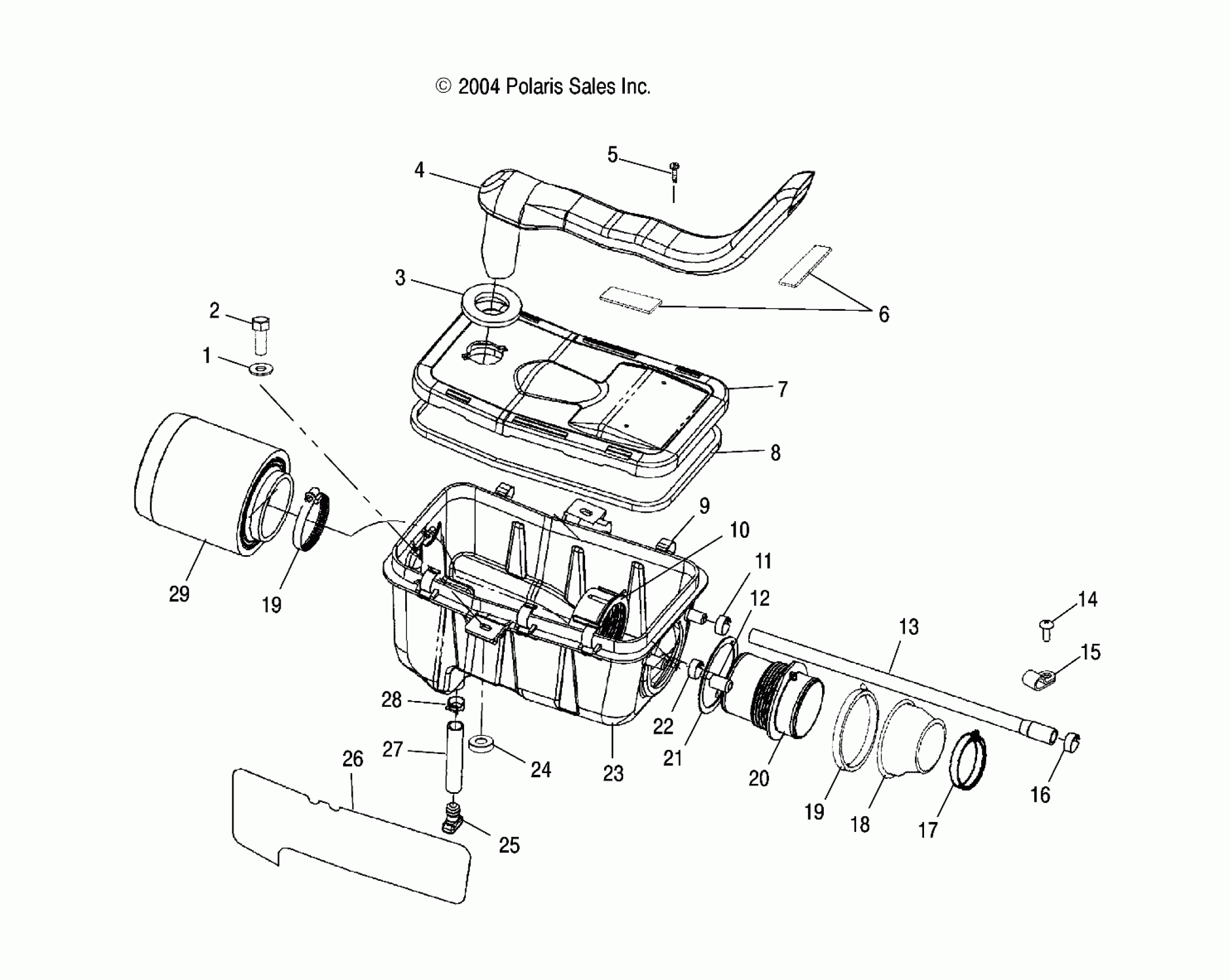

Polaris ATP 330 4X4 QUAD - A05JD32EA AIR BOX - A05JD32EA (4997869786B08) Diagram

#

Description
Price

1

Washer, Flat

7558301

$1.49

2

Screw

7518306

$3.99

3

Seal

5812023

$6.63

4

Duct, Inlet

5433920

Unavailable

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

Pad

5810317

Unavailable

7

Cover, Air Box

5433769

$89.99

8

Seal, Cover

5811482

Unavailable

9

CLIP-AIR BOX

5242044

$9.59

10

Collar, Carburetor Inlet

5432601

$12.79

11

Clamp, Hose

7080699

$1.59

12

Cap, End

5433396

$4.79

13

Hose, Breather

5411866

$11.59

14

SCREW

7512024

$4.79

15

CLAMP, CABLE

7080499

$5.59

16

Clamp, Hose, Spring

7080694

$6.53

17

Clamp, Narrow Band

7080511

$4.79

18

Boot, Carburetor

5411588

Unavailable

19

Clamp, Narrow Band

7080413

$3.19

19

Clamp, Narrow Band

7080413

$3.19

20

Duct, Carburetor Inlet

5433180

$32.37

21

Gasket, Carburetor Inlet Duct

5830128

Unavailable

22

Clamp, Hose

7080534

$1.59

23

Box, Air Intake

5435758

Unavailable

24

Spacer

7556091

$3.99

25

Plug, Trap

5432377

Unavailable

26

Foil, RH

5812111

Unavailable

27

Line, Fuel

8450059-100

Unavailable

28

Clamp, Hose

7080650

$3.99

29

Asm., Filter, Air

1253372

$27.99
