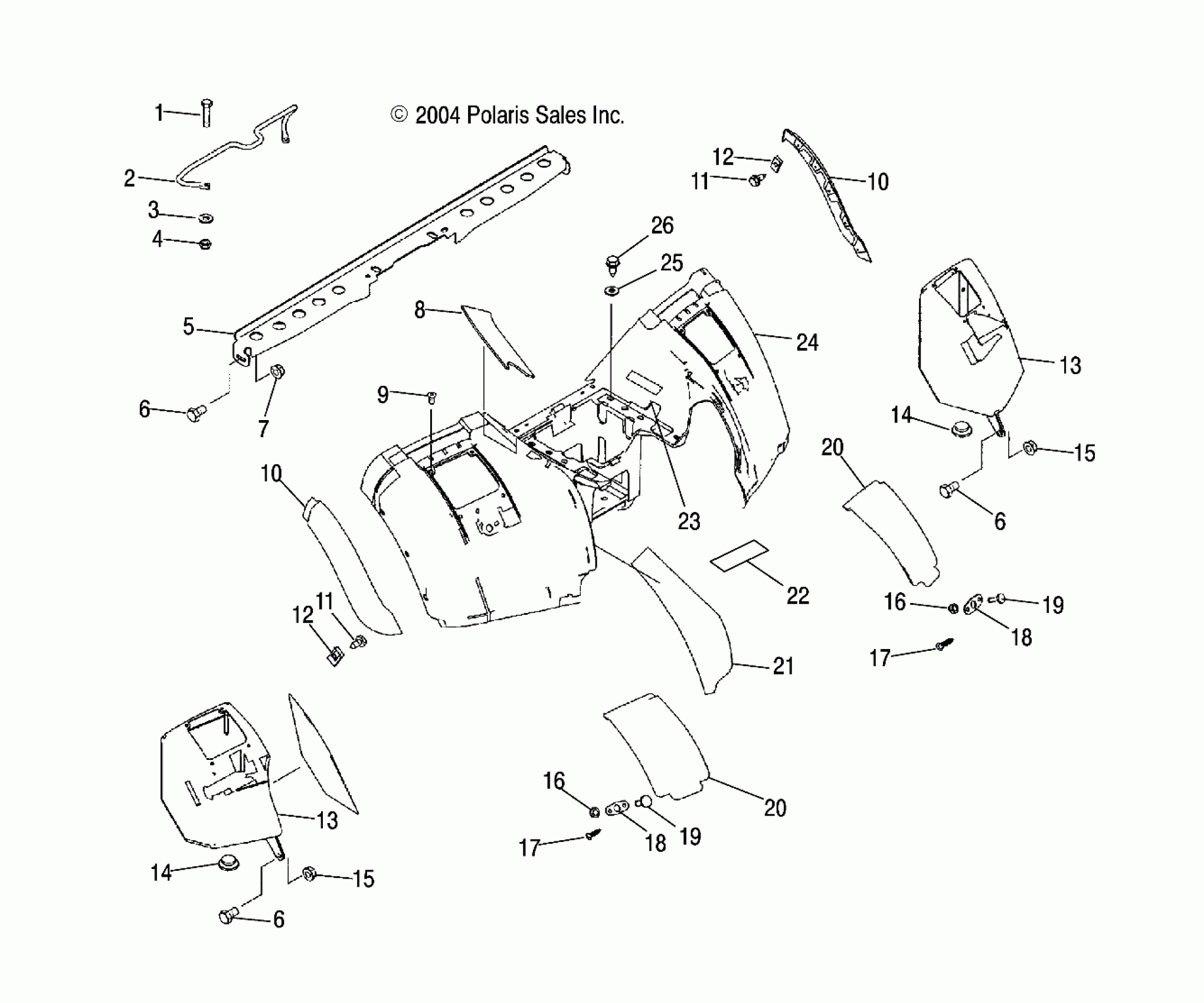

Polaris ATP 330 4X4 - A05JD32AA REAR CAB - A05JD32AA (4995169516A07) Diagram

#

Description
Price

1

Screw

7511930

$2.39

2

Retainer, Seat Latch

5334292

$33.91

3

WASHER

7555792

$4.79

4

Nut, Nylok

7541925

$1.49

5

Support, Compartment, Black

5247389-067

$54.76

6

Screw

7512297

$5.59

6

Screw

7512297

$5.59

6

Screw

7512297

$5.59

7

Nut, Nylok

7542122

$1.49

8

Foil, Inside

5812505

$5.71

9

Screw

7517299

Unavailable

10

Guard, Mud, Rear, Black, LH

5434797-070

Unavailable

10

Guard, Mud, Rear, Black, RH

5434798-070

Unavailable

10

Guard, Mud, Rear, Black, LH

5434797-070

Unavailable

10

Guard, Mud, Rear, Black, RH

5434798-070

Unavailable

11

Bolt

7512232

$1.49

11

Bolt

7512232

$1.49

12

NUT, SPEED

7670057

$1.49

12

NUT, SPEED

7670057

$1.49

13

Compartment, Rear, Cab, LH

5434904

$31.35

13

Compartment, Rear, Cab, RH

5434905

$30.55

13

Compartment, Rear, Cab, LH

5434904

$31.35

13

Compartment, Rear, Cab, RH

5434905

$30.55

14

Plug, Compartment

5412352

Unavailable

14

Plug, Compartment

5412352

Unavailable

15

NUT, NYLOK, FLANGED

7542153

$1.59

15

NUT, NYLOK, FLANGED

7542153

$1.59

16

Grommet, Rubber

5410774

Unavailable

16

Grommet, Rubber

5410774

Unavailable

17

SCREW

7512076

$1.49

17

SCREW

7512076

$1.49

18

Plate, Spear

5246946

Unavailable

18

Plate, Spear

5246946

Unavailable

19

PIN-CATCH

5246693

$9.59

19

PIN-CATCH

5246693

$9.59

20

Cover, Compartment, Cab, Black, LH

5434795-070

Unavailable

20

Cover, Compartment, Cab, Black, RH

5434796-070

Unavailable

20

Cover, Compartment, Cab, Black, LH

5434795-070

Unavailable

20

Cover, Compartment, Cab, Black, RH

5434796-070

Unavailable

21

Foil, Outside

5812506

$4.95

21

Foil, Compartment, RH

5812489

$4.95

22

Foil Tape

5811322

$1.99

23

Decal, 4 Stroke, Carb/Filter Info

7170007

Unavailable

24

Cab, Rear, Compartment, Sonic Blue

5434794-341

Unavailable

25

Washer, Flat

7555859

$1.49

26

SCREW

7512242

$2.39
