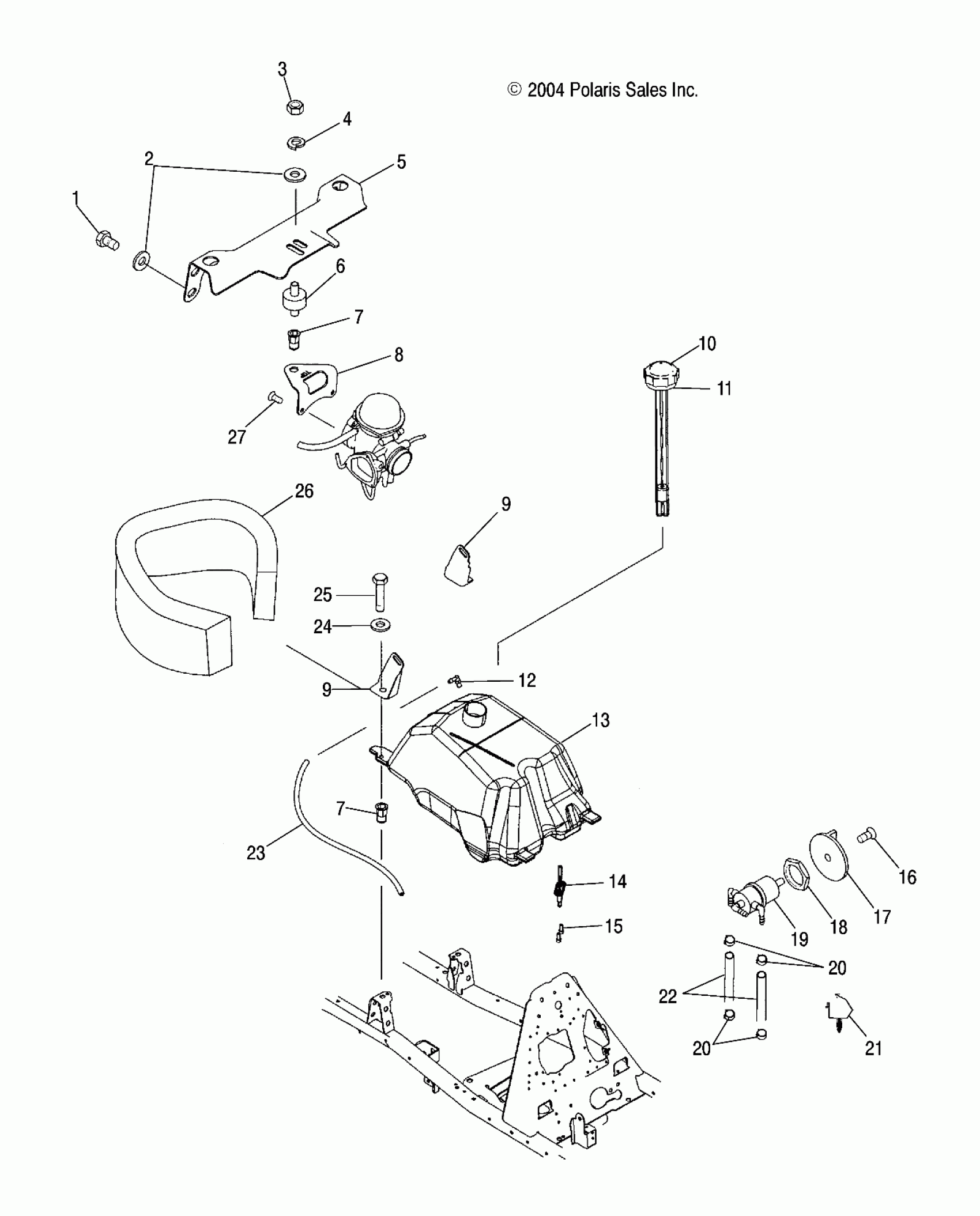

Polaris ATP 330 4X4 - A05JD32AA FUEL TANK and CARBURETOR MOUNTING - A05JD32AA (4995169516B03) Diagram

#

Description
Price

1

Bolt

7512276

$4.79

2

Washer, Flat

7558301

$1.49

3

Nut, Hex

7542105

$3.99

4

WASHER, SPRING LOCK

7552801

$1.59

5

Bracket, Carburetor Support, Black

5245671-067

Unavailable

6

MOUNT, CARBURETOR

3110050

$12.99

7

Nutsert, Hex

7547069

$3.99

7

Nutsert, Hex

7547069

$3.99

8

Mount, Carburetor, Black

5245674-067

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

10

Kit, Fuel Gauge

2873626

Unavailable

11

Gasket, Fuel Cap

5812123

$5.65

12

Vent, Tank

5431053

$19.99

13

Asm., Fuel Tank [Incl. 12,14]

2520409

Unavailable

14

Fitting, Fuel Outlet, Dual

7052364

Unavailable

15

Screw

7515136

$1.49

16

Screw

7517505

$1.59

17

Knob, Fuel Valve

5432559

$10.39

18

Nut, Fuel Valve

5432733

Unavailable

19

Valve, 3-Way

7052161

$39.99

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

21

CLIP, ROUTING

7670109

$2.39

22

Line, Fuel

8450103

Unavailable

23

LINE, FUEL

8360009-600

Unavailable

24

Washer, Flat

7558301

$1.49

25

Bolt

7512277

$4.79

26

Seal, Foam

5811899

Unavailable

27

Screw and Washer

3084205

$3.99
