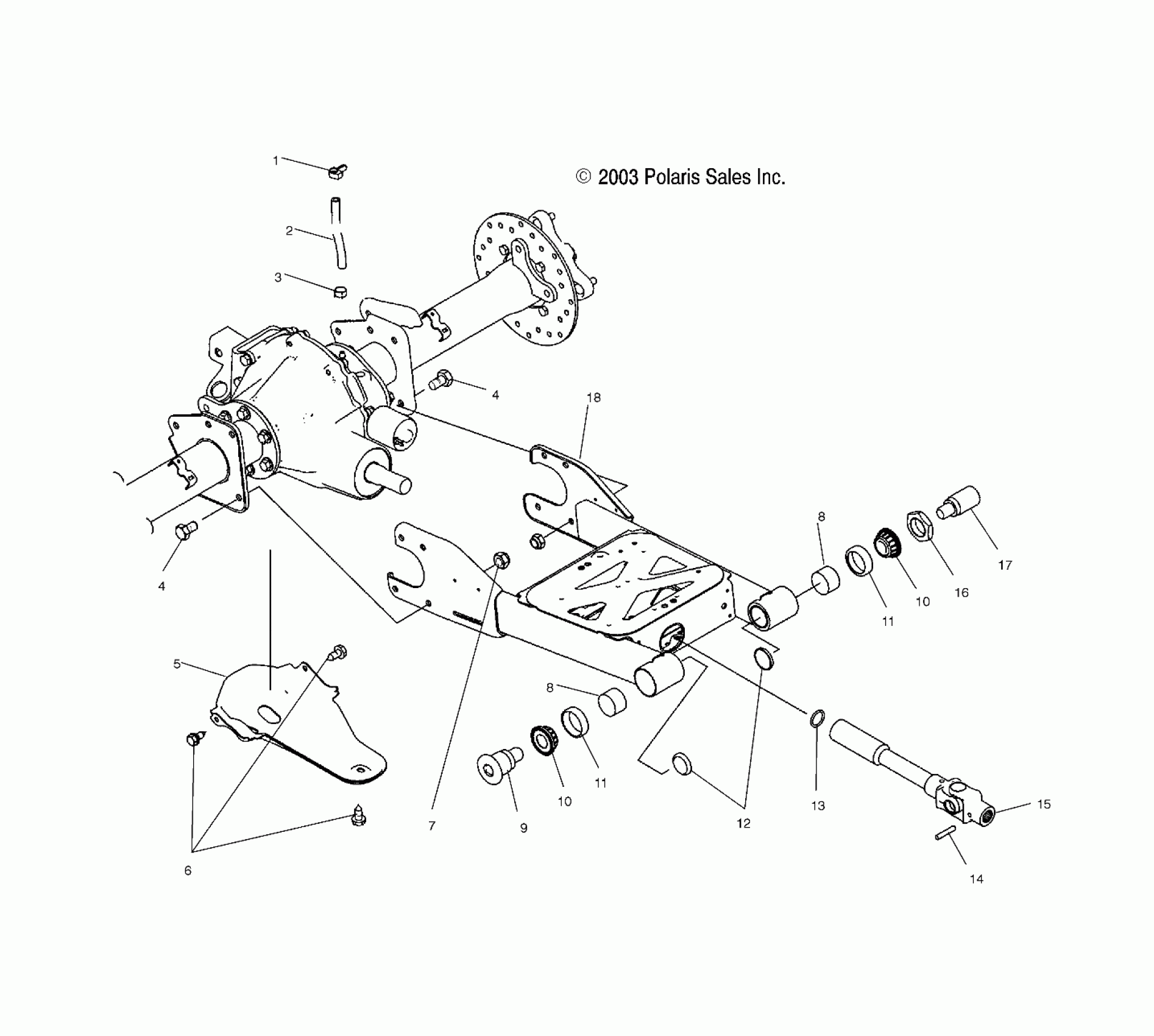

Polaris ATP 330 4X4 - A04JD32AA SWING ARM/REAR AXLE MOUNTING - A04JD32AA (4977487748D06) Diagram

#

Description
Price

1

Clip

7670102

$2.39

2

Line

8450003

$84.99

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

4

Bolt

7512457

$3.99

4

Bolt

7512457

$3.99

5

Plate, Skid, Rear Housing

5246228-067

$53.59

6

Screw (If built after 5/20/03)

7512399

$5.59

6

Screw (If built before 5/20/03)

7517612

Unavailable

7

Nut, Nylok

7542439

$1.49

8

Bearing, Tapered Roller Cup

3514398

$9.99

8

Bearing, Tapered Roller Cup

3514398

$9.99

9

Pivot, Threaded, Swingarm, RH

5133389

Unavailable

10

Bearing, Tapered Roller Cone

3514399

$23.99

10

Bearing, Tapered Roller Cone

3514399

$23.99

11

Foam, Swingarm Pivot

5812447

Unavailable

11

Foam, Swingarm Pivot

5812447

Unavailable

12

Plug, Swingarm Pivot

5246225

$2.47

13

O-Ring

5412202

$4.03

14

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

15

Asm., Propshaft, Rear

1380195

Unavailable

16

Nut, Jam, Swingarm Pivot

5133387

Unavailable

17

Pivot, Threaded, Swingarm, LH

5133388

$40.46

18

Asm., Swing Arm [Incl. 8,10-12]

1541781

$551.39
