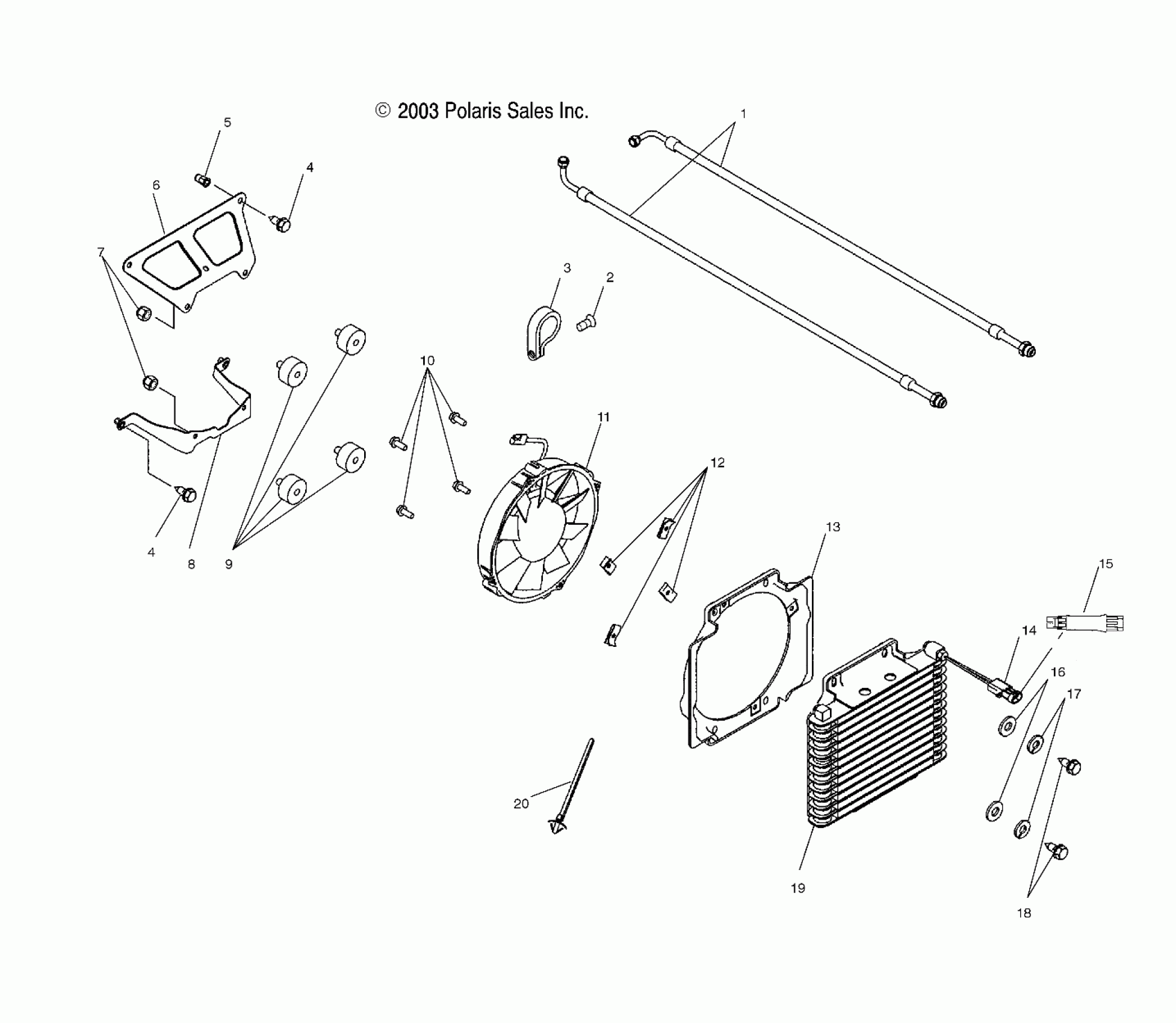

Polaris ATP 330 4X4 - A04JD32AA OIL COOLING - A04JD32AA (4977487748A14) Diagram

#

Description
Price

1

Hose, Cooler, Threaded 90 Degree

5412355

$161.49

2

Screw

7512084

$1.19

3

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

4

Screw

7515133

$3.97

4

Screw

7515133

$3.97

5

Nutsert

7547069

$3.97

6

Bracket, Oil Cooler, Top

5245416-067

$56.99

7

Nut, Nylok

7542122

$1.19

8

Nut, Rivet

7542130

$6.19

8

Asm., Bracket, Lower

1013519

Unavailable

9

Washer (If built after 2/21/04)

7555932

$2.38

9

Mount, Rubber (If built before 2/21/04)

5411548

$28.32

10

Screw

7517659

$3.97

11

Motor, Fan

2410157

Unavailable

12

U-Clip

7670111

Unavailable

13

Shroud

5433353

$69.84

14

Thermister (If built after 1/05/04)

4010934

Unavailable

14

Thermister (If built before 1/05/04)

4010274

$124.99

15

Jumper, Thermistor, Offset (If built before 1/05/04)

2410380

Unavailable

16

Washer, Flat

7558301

$1.19

17

Washer, Spring Lock (If built before 2/21/04)

7552801

$1.59

18

Screw (If built before 2/21/04)

7512240

$3.97

18

Screw (If built after 2/21/04)

7512163

$3.97

19

Cooler, Oil (If built after 1/05/04)

1240191

$501.89

19

Cooler, Oil (If built before 1/05/04)

1240155

Unavailable

20

Cable Tie

7080999

$9.52
