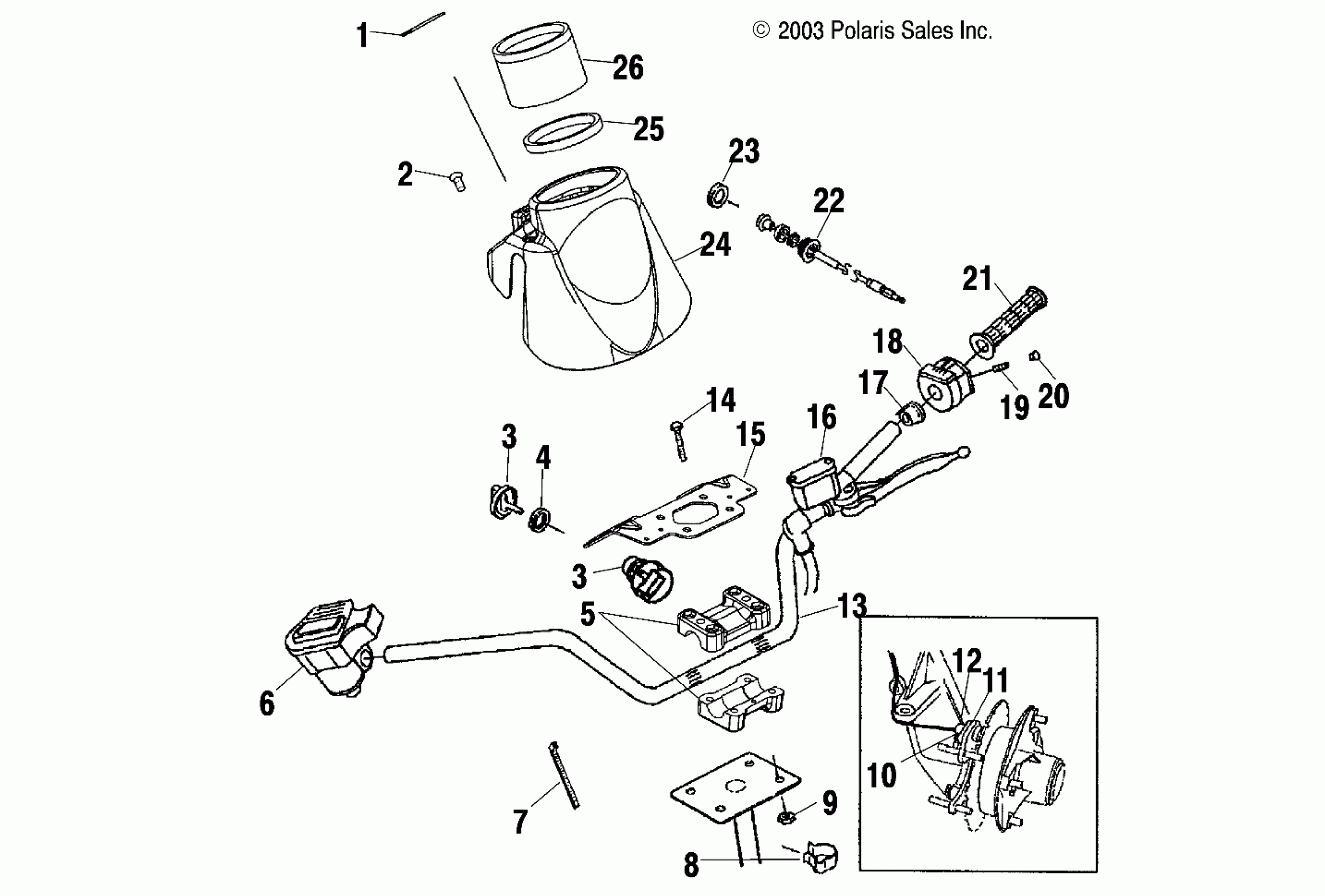

Polaris ATP 330 4X4 - A04JD32AA HANDLEBAR - A04JD32AA (4977487748C04) Diagram

#

Description
Price

1

Plug, Hole, Indicator Panel (If built before 4/14/03)

5434693

$23.19

2

SCREW

7518176

$4.79

3

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

3

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

3

Switch, Key (If built after 7/01/03)

4011002

Unavailable

3

Switch, Ignition (If built before 7/01/03)

4010390

Unavailable

3

Cover, Key

5431964

Unavailable

3

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

3

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

3

Switch, Key (If built after 7/01/03)

4011002

Unavailable

3

Switch, Ignition (If built before 7/01/03)

4010390

Unavailable

3

Cover, Key

5431964

Unavailable

4

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

5

Block, Handlebar (If built after 9/29/03)

5631973

$27.99

5

Block, Handlebar, Pegged (If built after 9/29/03)

5631972

$27.99

5

Block, Handlebar, Pegged (If built before 9/29/03)

5631146

$10.71

5

Block, Handlebar (If built before 9/29/03)

5631147

Unavailable

6

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM. PG. B12, REF. 3]

-------

Unavailable

7

CABLE-TIE,DIA12-50MM,WTHR-RES. (Qty. 4 if built after 7/01/03)

7080138

$2.41

8

Clip, Cable Retaining (If built before 7/01/03)

7080631

$6.29

9

Nut, Nylok

7542122

$1.49

10

Screw

7517658

$5.59

11

Sensor, Hall Effect

4010298

$111.99

12

Cap, Hall Sensor

5132382

$23.99

13

Tube, Handlebar

5334127-067

Unavailable

14

SCREW

7515189

Unavailable

15

Bracket, Instrument Panel (If built after 12/21/03)

5248182

$4.37

15

Bracket, Instrument Panel (If built before 12/21/03)

5246406-067

$4.37

16

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYL./BRAKE LINE PG. B14 FOR DETAILS]

-------

Unavailable

17

Spacer, Switch, LH

5433903

Unavailable

18

Switch, Handlebar, LH, Hi/Lo, Mode

4010592

$38.60

19

Screw

7517625

$4.79

20

PLUG, HOLE

5432952

$5.59

21

Grip, Handlebar

5433834-070

$24.27

22

Cable, Choke (If built before 8/11/03)

7081008

$79.99

22

Cable, Choke (If built after 8/11/03)

7081176

$77.21

23

Nut, Choke

7080922

$3.19

24

Panel, Instrument (If built after 4/14/03)

5435256-070

Unavailable

24

Panel, Instrument (If built before 4/14/03)

5434642-070

Unavailable

25

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

26

Instrument Cluster

3280450

Unavailable
