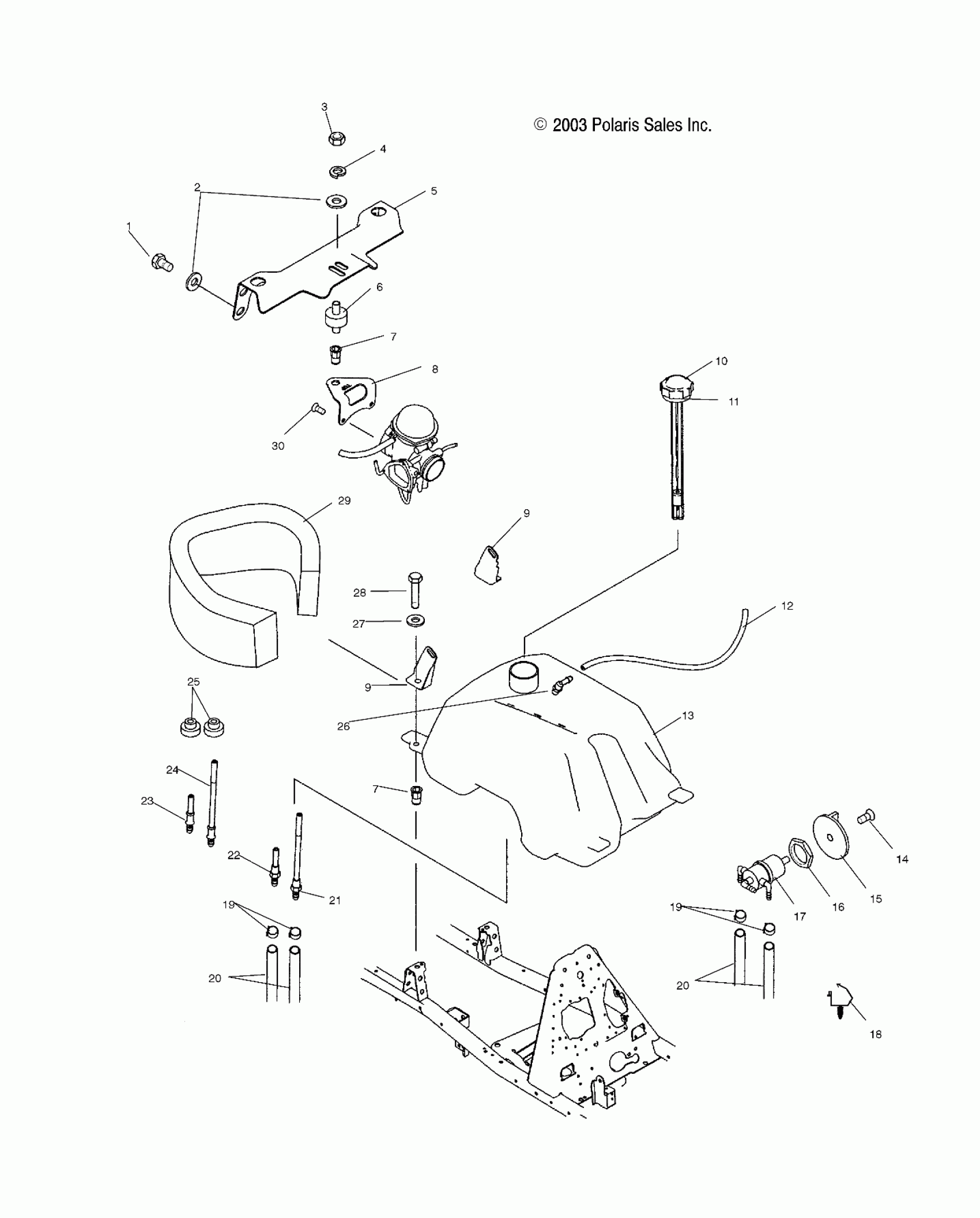

Polaris ATP 330 4X4 - A04JD32AA FUEL TANK and CARBURETOR MOUNTING - A04JD32AA (4977487748B03) Diagram

#

Description
Price

1

Bolt

7512276

$4.79

2

Washer, Flat

7555859

$1.49

3

NUT

7542105

$3.99

4

Washer, Lock

7552801

$1.59

5

Bracket, Carburetor Support

5245671-067

Unavailable

6

MOUNT, CARBURETOR

3110050

$12.99

7

Nutsert

7547069

$3.99

7

Nutsert

7547069

$3.99

8

Mount, Carb

5245674-067

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

9

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

9

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

10

Kit, Fuel Gauge

2873626

Unavailable

11

Gasket, Fuel Cap

5812123

$5.65

12

LINE, FUEL

8360009-600

Unavailable

13

Asm., Fuel Tank [Incl. 21,22,26][If built before 5/12/03]

2520183

Unavailable

13

Asm., Fuel Tank [Incl. 21,22,26][If built after 5/12/03]

2520362

Unavailable

14

Screw

7517505

$1.59

15

Knob, Fuel Valve

5432559

$10.39

16

Nut, Fuel Valve

5432733

Unavailable

17

Valve, 3-Way

7052161

$39.99

18

CLIP, ROUTING

7670109

$2.39

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

Line, Fuel

8450103

Unavailable

20

Line, Fuel

8450103

Unavailable

21

Fitting, Fuel Outlet, Main [For use with 2520183][If built before 5/12/03]

7052146

$27.99

22

Fitting, Fuel Outlet, Reserve [For use with 2520183][If built before 5/12/03]

7052149

$23.99

23

Fitting, Res., Press In [For use with 2520362][If built after 5/12/03]

7052346

$27.99

24

Fitting, Main, Press In [For use with 2520362][If built after 5/12/03]

7052350

Unavailable

25

Grommet [If built after 5/12/03]

7052362

$9.99

26

Vent, Tank

5431053

$19.99

27

Washer, Flat

7558301

$1.49

28

Bolt

7512277

$4.79

29

Seal, Foam

5811899

Unavailable

30

Screw and Washer

3084205

$3.99
