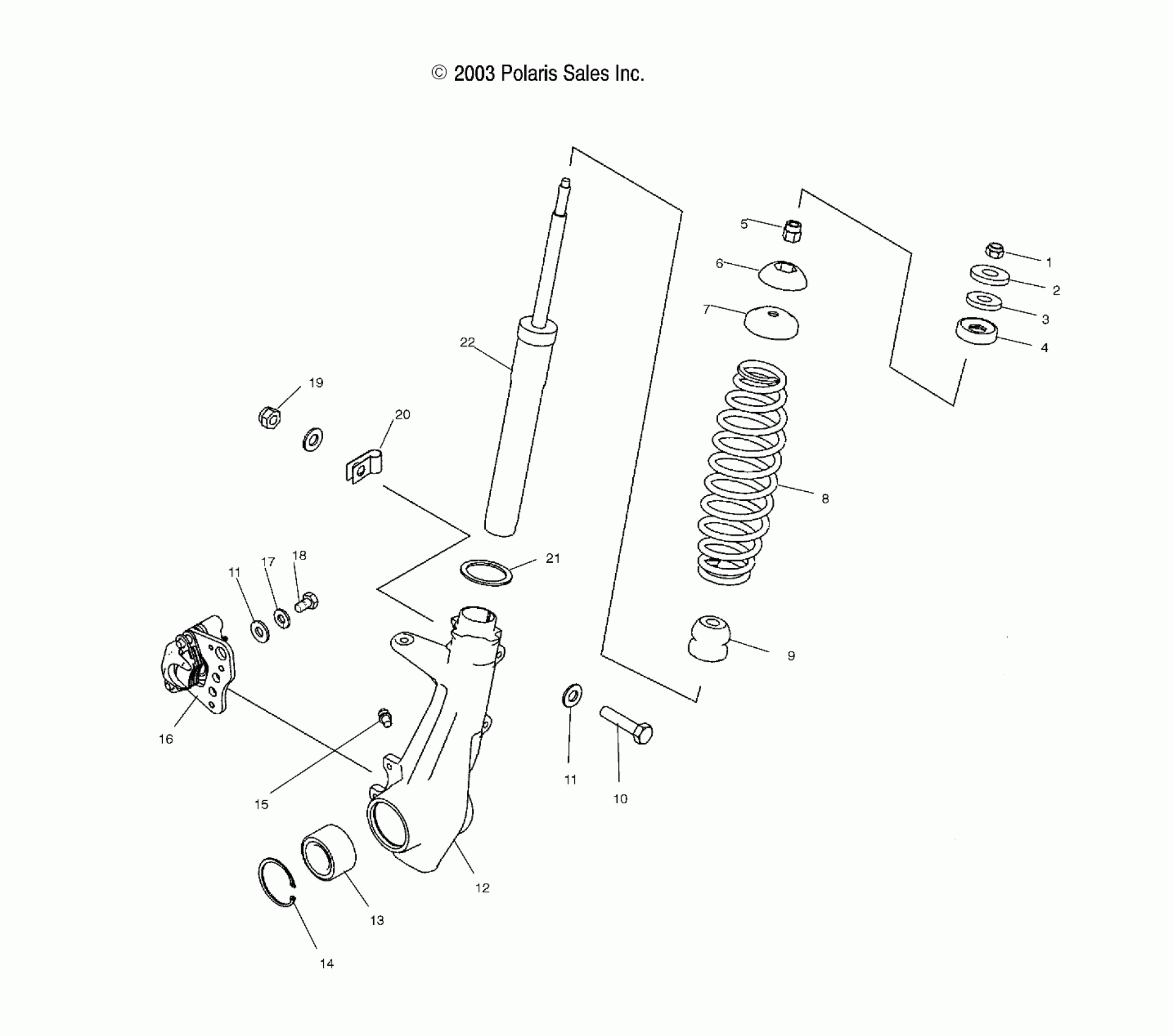

Polaris ATP 330 4X4 - A04JD32AA FRONT STRUT - A04JD32AA (4985938593B11) Diagram

#

Description
Price

1

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

2

WASHER

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

5

Spacer, Strut

5132062

$19.99

6

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

7

RETAINER-SPRING,STRUT

5243364

$19.99

8

Spring, Coil, Silver (If built after 10/01/03)

7042312-385

$79.99

8

Spring, Coil, Silver (If built before 10/01/03)

7041375-385

$79.99

9

Bumper

5411608

Unavailable

10

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Support, Hubstrut, RH

5132302

Unavailable

12

Support, Hubstrut, LH

5132301

$293.80

13

Bearing, Hubstrut

3514342

Unavailable

14

RING, RETAINING

7710507

$2.39

15

Fitting, Lubrication w/Ball

7080306

$3.19

16

ASM., FRONT BRAKE CALIPER, LH [SEE FRONT BRAKE CALIPER PG. C5 FOR DETAILS]

-------

Unavailable

17

WASHER, SPRING LOCK

7552901

$1.49

18

SCREW

7512365

$1.49

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

CLAMP-CABLE

7080367

$2.39

21

WASHER-2.06X2.62X.105-Y

5211115

$3.99

22

Strut, Front

7041761

$151.99
